Name: LEFT HAND CYLINDER HEAD
Rating: 4.1 (1 reviews)

LEFT HAND CYLINDER HEAD of Ferrari Ferrari F12 TDF

View All

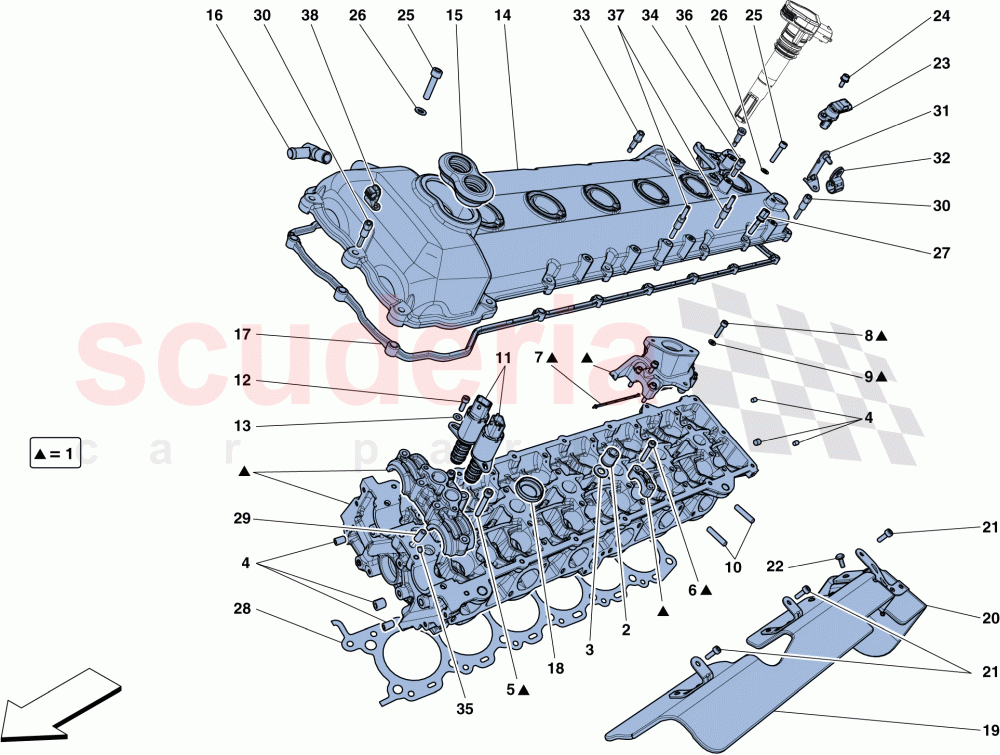

Ferrari F12 TDF - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	316214	LH HEAD	$3,963.39	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	$0.31	To Order
	127635	THREADED PLUG	$3.32	To Order
	282400	THREADED PLUG	$3.91	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	243721	SCREW WITH WASHER	$0.50	To Order
	243720	SCREW	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	239614	GASKET	$6.73	To Order

Photo	Part No	Description	Price (each)	Stock
	239502	SCREW	$0.63	To Order
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14304221	SCREW	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	816000	LH CYLINDER HEAD COVER	$1,187.39	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	271521	CONNECTOR	$6.84	To Order

Photo	Part No	Description	Price (each)	Stock
	243802	LH HEAD COVER GASKET	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	$2.54	To Order

Photo	Part No	Description	Price (each)	Stock
	293214	FRONT LH HEAD HEAT SHIELD	$301.00	To Order

Photo	Part No	Description	Price (each)	Stock
	293215	REAR LH HEAD HEAT SHIELD	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11625524	SCREW	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	224573	TIMING SENSOR	$39.30	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	214412	STUD BOLT	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	CHECK VALVE	$9.77	To Order

Photo	Part No	Description	Price (each)	Stock
	214412	STUD BOLT	$13.14	To Order

Photo	Part No	Description	Price (each)	Stock
	324096	CABLE FASTENER BRACKET	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	320598	CLIP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	233513	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256827	GRUB SCREW	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	293278	SCREW	$14.68	To Order

Photo	Part No	Description	Price (each)	Stock
	269228	STUD BOLT	$6.66	To Order

Photo	Part No	Description	Price (each)	Stock
	327089	COMPL. INJECTION CABLE FASTENER BRACKET	$19.24	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	316214	LH HEAD	316214 LH HEAD	$3,963.39	1
2	321187	NUT	321187 NUT	-	28	Enquire
3	151117	WASHER	151117 WASHER	$1.20	28
4	199760	THREADED PLUG	199760 THREADED PLUG D. 6 X 1	$0.31	6
4	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5; For rear water orifice cover	$3.32 MSRP: ~~4.17~~ (20.4% off)	1
4	282400	THREADED PLUG	282400 THREADED PLUG M12 X 11	$3.91	2
4	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5; Inspection hole cover	$3.32 MSRP: ~~4.17~~ (20.4% off)	12
5	243721	SCREW WITH WASHER	243721 SCREW WITH WASHER M6 X 45	$0.50	4
5	243720	SCREW	243720 SCREW M6 X 40	$0.60	2
6	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	$0.58	20
7	239614	GASKET	239614 GASKET Also comes with engine gasket set	$6.73	1
8	239502	SCREW	239502 SCREW M6 X 25	$0.63	1
8	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	$0.58	4
9	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	1
10	211641	STUD BOLT	211641 STUD BOLT M8 X 16; Shaft length 24 mm	$1.04	12
11	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	$240.67	2
12	14304221	SCREW	14304221 SCREW M5 X 16	$0.10	2
13	11181574	WASHER	11181574 WASHER	$0.02	2
14	816000	LH CYLINDER HEAD COVER	816000 LH CYLINDER HEAD COVER	$1,187.39	1
15	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET Also comes with engine gasket set	$19.24 MSRP: ~~29.29~~ (34.3% off)	1
16	271521	CONNECTOR	271521 CONNECTOR	$6.84	1
17	243802	LH HEAD COVER GASKET	243802 LH HEAD COVER GASKET Also comes with engine gasket set	$85.03 MSRP: ~~111.59~~ (23.8% off)	1
18	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL Also comes with engine gasket set	$2.54 MSRP: ~~3.97~~ (36% off)	6
19	293214	FRONT LH HEAD HEAT SHIELD	293214 FRONT LH HEAD HEAT SHIELD	$301.00	1
20	293215	REAR LH HEAD HEAT SHIELD	293215 REAR LH HEAD HEAT SHIELD	$336.95	1
21	248334	SCREW	248334 SCREW M6 X 12	$0.68	3
22	11625524	SCREW	11625524 SCREW	$0.79	2
23	224573	TIMING SENSOR ARRIVING SOON	224573 TIMING SENSOR ARRIVING SOON	$39.30 MSRP: ~~55.44~~ (29.1% off)	2
24	248334	SCREW	248334 SCREW M6 X 14	$0.68	2
25	214412	STUD BOLT	214412 STUD BOLT M6 X 25	$13.14	17
26	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	20
27	339948	STUD BOLT	339948 STUD BOLT	$20.84	2
29	200458	CHECK VALVE	200458 CHECK VALVE	$9.77	2
30	214412	STUD BOLT	214412 STUD BOLT	$13.14	2
31	324096	CABLE FASTENER BRACKET	324096 CABLE FASTENER BRACKET	$18.62	1
32	320598	CLIP	320598 CLIP	$1.85	1
34	233513	STUD BOLT	233513 STUD BOLT No longer supplied	-	1	Enquire
35	256827	GRUB SCREW	256827 GRUB SCREW	$5.58	2
36	293278	SCREW	293278 SCREW M6 X 1	$14.68	1
37	269228	STUD BOLT	269228 STUD BOLT	$6.66	2
38	327089	COMPL. INJECTION CABLE FASTENER BRACKET	327089 COMPL. INJECTION CABLE FASTENER BRACKET	$19.24	1
