TIMING SYSTEM - TAPPETS of Ferrari Ferrari F12 TDF

View All

Ferrari F12 TDF - TIMING SYSTEM - TAPPETS

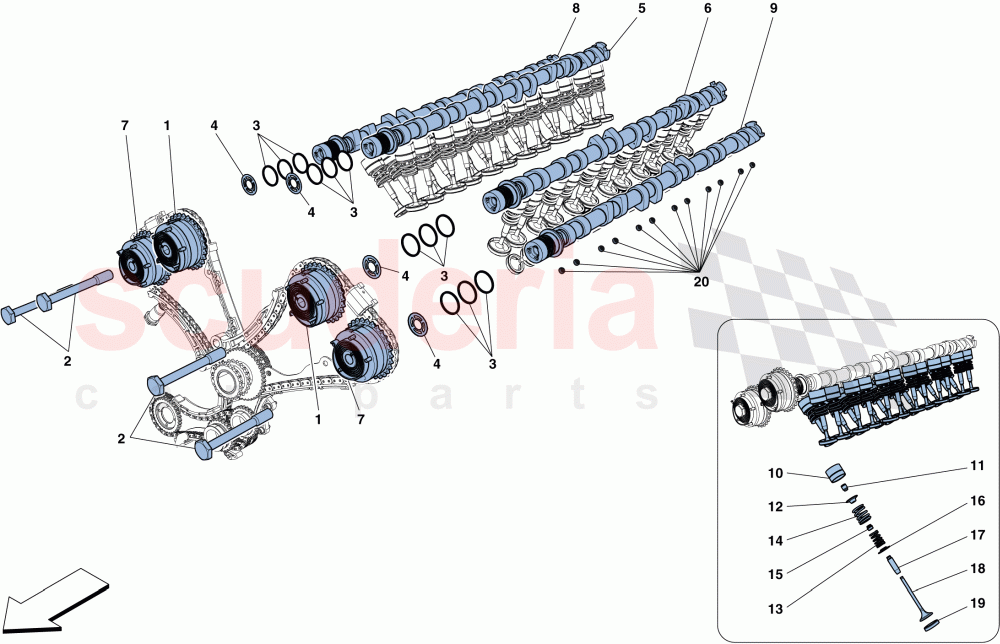

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	254892	SCREW HEX HEAD M14 X 15	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	197975	SEAL RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	314867	RH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314868	LH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	314869	RH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314870	LH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254496	MECHANICAL TAPPET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	237390	UPPER STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238641	INTERNAL VALVE RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238640	EXTERNAL VALVE RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247484	LOWER STOP COLLAR	Enquire	To Order
	242574	LOWER STOP CAP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6213498	VALVE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291638	INTAKE VALVE	Enquire	To Order
	291851	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6222847	INTAKE VALVE SEAT	Enquire	To Order
	6222848	EXHAUST VALVE SEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149229	VALVE CLEARANCE ADJUSTER PAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT IN STOCK	241906 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT IN STOCK	-	2	Enquire
2	254892	SCREW HEX HEAD M14 X 15 IN STOCK	254892 SCREW HEX HEAD M14 X 15 M14 X 1.5 X 109 IN STOCK	-	4	Enquire
3	197975	SEAL RING IN STOCK	197975 SEAL RING Also comes with engine gasket set IN STOCK	-	12	Enquire
4	240559	DIAMOND COATED WASHER IN STOCK	240559 DIAMOND COATED WASHER IN STOCK	-	4	Enquire
5	314867	RH INTAKE CAMSHAFT	314867 RH INTAKE CAMSHAFT	-	1	Enquire
6	314868	LH INTAKE CAMSHAFT	314868 LH INTAKE CAMSHAFT	-	1	Enquire
7	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT IN STOCK	248020 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT IN STOCK	-	2	Enquire
8	314869	RH EXHAUST CAMSHAFT	314869 RH EXHAUST CAMSHAFT	-	1	Enquire
9	314870	LH EXHAUST CAMSHAFT	314870 LH EXHAUST CAMSHAFT	-	1	Enquire
10	254496	MECHANICAL TAPPET	254496 MECHANICAL TAPPET	-	48	Enquire
11	179763	VALVE SPRING SEMI-CONE IN STOCK	179763 VALVE SPRING SEMI-CONE IN STOCK	-	96	Enquire
12	237390	UPPER STOP CAP	237390 UPPER STOP CAP	-	48	Enquire
13	238641	INTERNAL VALVE RETURN SPRING	238641 INTERNAL VALVE RETURN SPRING	-	48	Enquire
14	238640	EXTERNAL VALVE RETURN SPRING	238640 EXTERNAL VALVE RETURN SPRING	-	48	Enquire
15	221473	OIL SEAL IN STOCK	221473 OIL SEAL Also comes with engine gasket set IN STOCK	-	48	Enquire
16	247484	LOWER STOP COLLAR	247484 LOWER STOP COLLAR Intake side	-	24	Enquire
16	242574	LOWER STOP CAP IN STOCK	242574 LOWER STOP CAP Exhaust side IN STOCK	-	24	Enquire
17	6213498	VALVE GUIDE	6213498 VALVE GUIDE	-	24	Enquire
18	291638	INTAKE VALVE	291638 INTAKE VALVE	-	24	Enquire
18	291851	EXHAUST VALVE	291851 EXHAUST VALVE	-	24	Enquire
19	6222847	INTAKE VALVE SEAT	6222847 INTAKE VALVE SEAT	-	12	Enquire
19	6222848	EXHAUST VALVE SEAT	6222848 EXHAUST VALVE SEAT	-	12	Enquire
20	149229	VALVE CLEARANCE ADJUSTER PAD	149229 VALVE CLEARANCE ADJUSTER PAD	-	48	Enquire
