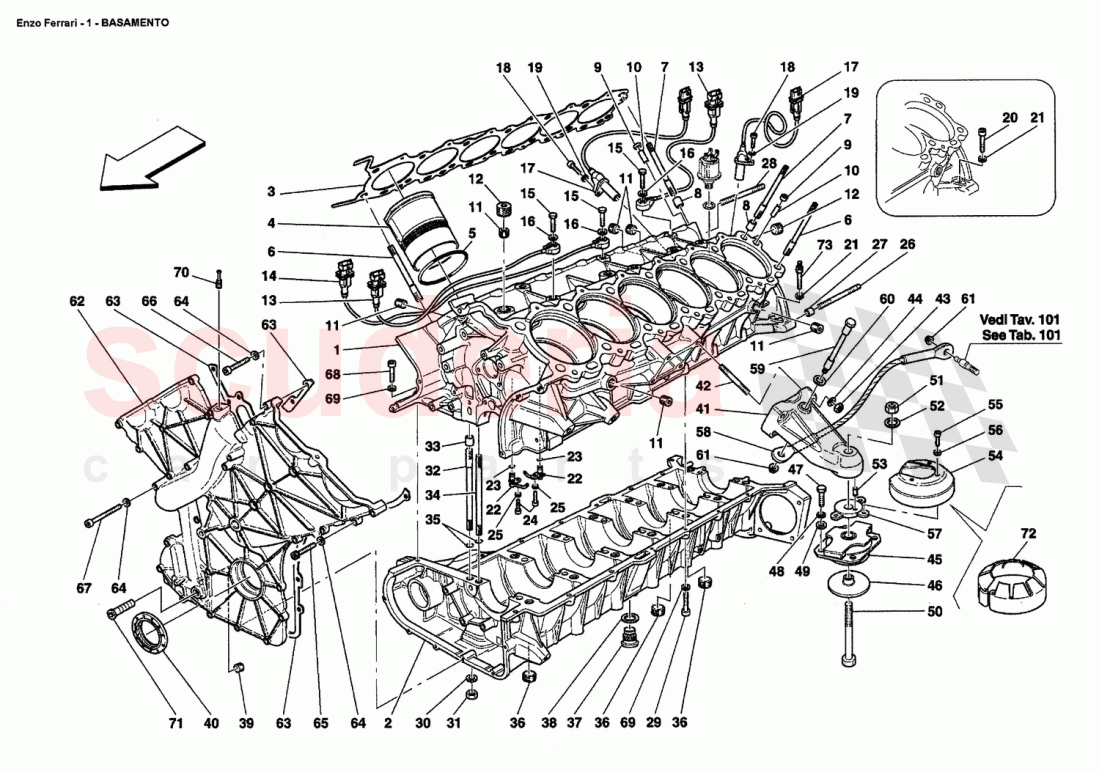

Ferrari Enzo - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	198048	COMPLETE CRANKCASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198048	COMPLETE CRANKCASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181832	R.H. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187806	CYLINDER LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186134	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186133	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195382	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156862	CHECK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187739	KNOCK SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187740	KNOCK SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182194	RPM Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182973	PISTONS COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164877	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217796	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231823	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188717	Front Crankshaft Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186307	ENGINE FIXING SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546624	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190255	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182141	RETAINER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15970634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128944	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15864334	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176573	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601774	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	125716	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189819	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188853	SPACER FOR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191430	ENGINE HOLDING CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193849	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10523225	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133216	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190486	FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190487	FRONT COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155093	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158025	THREADED UNION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	231624	SCREW	231624 SCREW L= 45 mm	-	1	Enquire
-	156828	SCREW	156828 SCREW L= 50 mm	-	4	Enquire
-	231620	SCREW	231620 SCREW L= 25 mm	-	15	Enquire
-	231622	SCREW	231622 SCREW L= 35 mm	-	6	Enquire
-	14305324	SCREW	14305324 SCREW L= 20 mm	-	1	Enquire
-	181833	L.H. GASKET	181833 L.H. GASKET	-	1	Enquire
-	198048	COMPLETE CRANKCASE	198048 COMPLETE CRANKCASE	-	1	Enquire
1	198048	COMPLETE CRANKCASE	198048 COMPLETE CRANKCASE Not as spare part / With the complete crankcase	-	1	Enquire
2	198048	COMPLETE CRANKCASE	198048 COMPLETE CRANKCASE Not as spare part / With the complete crankcase	-	1	Enquire
3	181832	R.H. GASKET	181832 R.H. GASKET	-	1	Enquire
4	187806	CYLINDER LINER	187806 CYLINDER LINER	-	12	Enquire
5	186251	O-RING	186251 O-RING	-	36	Enquire
6	186134	STUD	186134 STUD	-	14	Enquire
7	186133	STUD	186133 STUD	-	14	Enquire
8	185360	CENTERING DOWEL	185360 CENTERING DOWEL	-	4	Enquire
9	195382	DOWEL	195382 DOWEL	-	2	Enquire
10	156862	CHECK VALVE	156862 CHECK VALVE	-	2	Enquire
11	164400	THREADED PLUG	164400 THREADED PLUG	-	7	Enquire
12	282753	THREADED PLUG	282753 THREADED PLUG	-	4	Enquire
13	187739	KNOCK SENSOR	187739 KNOCK SENSOR L= 400 mm	-	4	Enquire
14	187740	KNOCK SENSOR	187740 KNOCK SENSOR L= 650 mm	-	2	Enquire
15	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	6	Enquire
16	986899	WASHER	986899 WASHER	-	6	Enquire
17	182194	RPM Sensor	182194 RPM Sensor	-	2	Enquire
18	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	2	Enquire
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
20	231625	SCREW	231625 SCREW	-	2	Enquire
21	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
22	182973	PISTONS COOLING NOZZLE	182973 PISTONS COOLING NOZZLE	-	12	Enquire
23	164877	O-RING	164877 O-RING	-	12	Enquire
24	14303123	SCREW	14303123 SCREW	-	12	Enquire
25	11181474	WASHER	11181474 WASHER	-	12	Enquire
26	13546934	STUD BOLT	13546934 STUD BOLT	-	2	Enquire
27	100052	CENTERING DOWEL	100052 CENTERING DOWEL	-	2	Enquire
28	13546834	STUD BOLT	13546834 STUD BOLT	-	5	Enquire
29	231620	SCREW	231620 SCREW L= 25 mm	-	12	Enquire
30	178348	WASHER	178348 WASHER	-	28	Enquire
31	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	28	Enquire
32	217796	STUD BOLT	217796 STUD BOLT	-	14	Enquire
33	176421	CENTERING DOWEL	176421 CENTERING DOWEL	-	14	Enquire
34	231823	STUD BOLT	231823 STUD BOLT	-	14	Enquire
35	134704	O-RING ARRIVING SOON	134704 O-RING ARRIVING SOON	-	28	Enquire
36	282753	THREADED PLUG	282753 THREADED PLUG	-	3	Enquire
37	307477	THREADED PLUG	307477 THREADED PLUG	-	1	Enquire
38	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	1	Enquire
39	164400	THREADED PLUG	164400 THREADED PLUG	-	1	Enquire
40	188717	Front Crankshaft Seal	188717 Front Crankshaft Seal	-	1	Enquire
41	186307	ENGINE FIXING SUPPORT	186307 ENGINE FIXING SUPPORT	-	2	Enquire
42	13546624	STUD	13546624 STUD	-	8	Enquire
43	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	8	Enquire
44	11190574	WASHER	11190574 WASHER	-	8	Enquire
45	190255	FLEXIBLE PAD	190255 FLEXIBLE PAD	-	2	Enquire
46	182141	RETAINER WASHER	182141 RETAINER WASHER	-	2	Enquire
47	15970634	SCREW	15970634 SCREW	-	8	Enquire
48	127497	WASHER	127497 WASHER	-	8	Enquire
49	128944	WASHER	128944 WASHER	-	8	Enquire
50	15864334	SCREW	15864334 SCREW	-	2	Enquire
51	176573	NUT	176573 NUT	-	2	Enquire
52	12601774	WASHER	12601774 WASHER	-	2	Enquire
53	125716	CENTERING DOWEL	125716 CENTERING DOWEL	-	2	Enquire
54	189819	SHIELD	189819 SHIELD	-	2	Enquire
55	14305024	SCREW	14305024 SCREW	-	6	Enquire
56	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
57	188853	SPACER FOR SHIELD	188853 SPACER FOR SHIELD	-	2	Enquire
58	191430	ENGINE HOLDING CABLE	191430 ENGINE HOLDING CABLE	-	2	Enquire
59	193849	SCREW	193849 SCREW	-	2	Enquire
60	10523225	WASHER	10523225 WASHER	-	2	Enquire
61	133216	NUT	133216 NUT	-	4	Enquire
62	190486	FRONT COVER	190486 FRONT COVER	-	1	Enquire
63	190487	FRONT COVER GASKET	190487 FRONT COVER GASKET	-	1	Enquire
64	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	33	Enquire
65	14305324	SCREW	14305324 SCREW L= 20 mm	-	2	Enquire
66	231620	SCREW	231620 SCREW L= 30 mm	-	3	Enquire
67	231625	SCREW	231625 SCREW L= 40 mm	-	2	Enquire
68	14305324	SCREW	14305324 SCREW	-	1	Enquire
69	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	14	Enquire
70	155093	CONNECTOR	155093 CONNECTOR	-	1	Enquire
71	158025	THREADED UNION	158025 THREADED UNION	-	1	Enquire
