Ferrari Enzo - OIL / WATER PUMP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
195440 COMPLETE WATER OIL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
187051 LATERAL OIL RECOVERY FILTER Enquire To Order
Photo Part No Description Price (each) Stock
140071 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
14306424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14359324 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
185345 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
986899 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
133938 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
196938 OIL HOSE Enquire To Order
Photo Part No Description Price (each) Stock
862084 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
10902424 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12648925 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
193713 THERMOSTAT VALVE BODY Enquire To Order
Photo Part No Description Price (each) Stock
14300724 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14304824 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
230890 THERMOSTAT WITH PRESSURE GUAGE Enquire To Order
Photo Part No Description Price (each) Stock
10300540 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
10298460 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
137873 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
178722 RUBBER HOSE Enquire To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
181975 PIPE FROM FRONT COVER TO PUMP Enquire To Order
Photo Part No Description Price (each) Stock
154191 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
186334 WATER INLET DUCTING Enquire To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
11193874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
141250 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
184726 COMPLETE WATER OUTLET MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
192353 PUMPS CONTROL SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
11067276 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
155996 BEARING Enquire To Order
Photo Part No Description Price (each) Stock
11381076 SEEGER RING Enquire To Order
Photo Part No Description Price (each) Stock
184384 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
132829 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
182658 GASKET Enquire To Order
View All

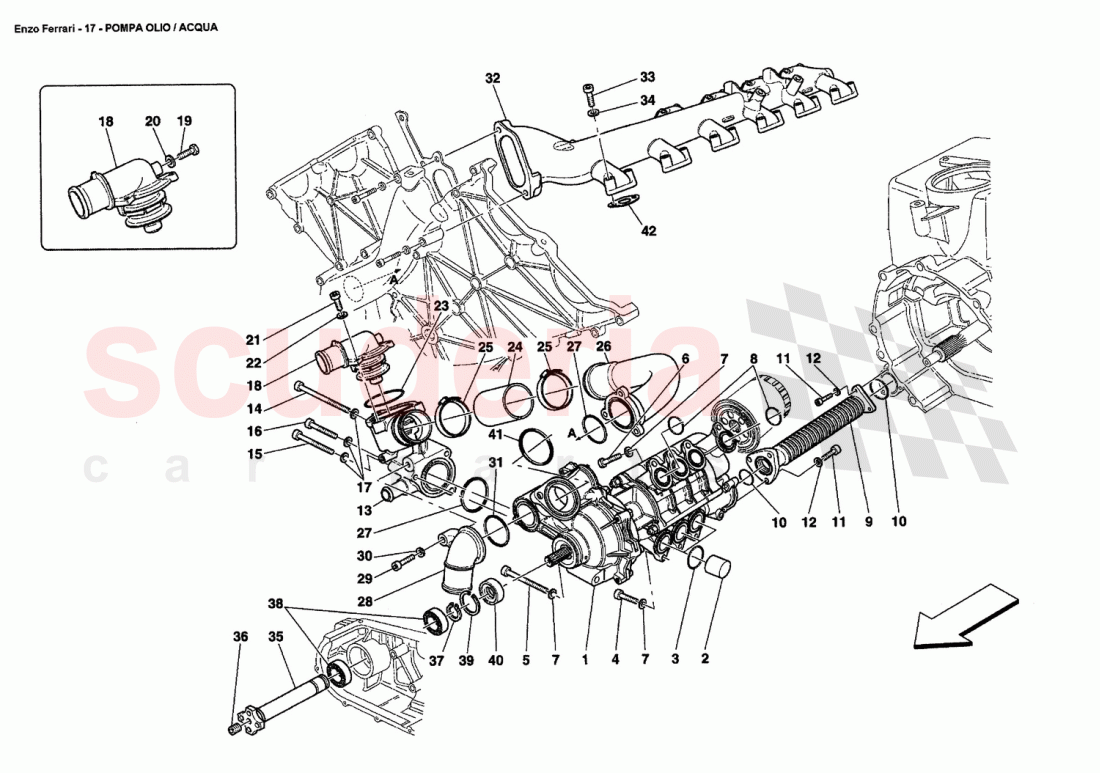

OIL / WATER PUMP of Ferrari Ferrari Enzo Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 187162
CENTRAL ENGINE OIL FILTER 		- 1 Enquire
1 195440
COMPLETE WATER OIL PUMP 		- 1 Enquire
2 187051
LATERAL OIL RECOVERY FILTER 		- 2 Enquire
3 140071
O-Ring 		- 3 Enquire
4 14306424
SCREW 		- 4 Enquire
5 14359324
SCREW 		- 2 Enquire
6 185345
SCREW 		- 4 Enquire
7 986899
WASHER 		- 10 Enquire
8 133938
O-RING 		- 4 Enquire
9 196938
OIL HOSE 		- 1 Enquire
10 862084
GASKET 		- 2 Enquire
11 10902424
SCREW 		- 6 Enquire
12 12648925
WASHER 		- 6 Enquire
13 193713
THERMOSTAT VALVE BODY 		- 1 Enquire
14 14300724
SCREW 		- 1 Enquire
15 14304824
SCREW 		- 1 Enquire
16 231620
SCREW 		- 1 Enquire
17 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 3 Enquire
18 230890
THERMOSTAT WITH PRESSURE GUAGE 		- 1 Enquire
19 10300540
THREADED PLUG 		- 1 Enquire
20 10298460
GASKET 		- 1 Enquire
21 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 3 Enquire
22 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 3 Enquire
23 137873
O-Ring 		- 1 Enquire
24 178722
RUBBER HOSE 		- 1 Enquire
25 13000790
SCREW COLLAR 		- 2 Enquire
26 181975
PIPE FROM FRONT COVER TO PUMP 		- 1 Enquire
27 154191
GASKET 		- 2 Enquire
28 186334
WATER INLET DUCTING 		- 1 Enquire
29 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 		- 1 Enquire
30 11193874
WASHER 		- 1 Enquire
31 141250
O-Ring 		- 1 Enquire
32 184726
COMPLETE WATER OUTLET MANIFOLD
MANIFOLD 		- 1 Enquire
33 231620
SCREW 		- 24 Enquire
34 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 24 Enquire
35 192353
PUMPS CONTROL SHAFT 		- 1 Enquire
36 127635
THREADED PLUG 		- 1 Enquire
37 11067276
SEEGER RING 		- 1 Enquire
38 155996
BEARING 		- 2 Enquire
39 11381076
SEEGER RING 		- 1 Enquire
40 184384
GASKET 		- 1 Enquire
41 132829
O-RING 		- 1 Enquire
42 182658
GASKET 		- 12 Enquire
