Ferrari Enzo - TIMING - TAPPETS AND SHAFTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247480 HYDRAULIC TAPPET Enquire To Order
Photo Part No Description Price (each) Stock
179763 VALVE SPRING SEMI-CONE Enquire To Order
Photo Part No Description Price (each) Stock
187489 UPPER CUP Enquire To Order
Photo Part No Description Price (each) Stock
188849 OUTER SPRING FOR VALVE RETURN Enquire To Order
Photo Part No Description Price (each) Stock
184055 INNER SPRING FOR VALVE RETURN Enquire To Order
Photo Part No Description Price (each) Stock
221473 OIL SEAL Enquire To Order
Photo Part No Description Price (each) Stock
204178 LOWER CUP Enquire To Order
Photo Part No Description Price (each) Stock
176437 INTAKE VALVE GUIDE Enquire To Order
Photo Part No Description Price (each) Stock
6222847 INTAKE VALVE SEAT Enquire To Order
Photo Part No Description Price (each) Stock
6222848 EXHAUST VALVE SEAT Enquire To Order
Photo Part No Description Price (each) Stock
190525 INTAKE VALVE Enquire To Order
Photo Part No Description Price (each) Stock
238485 EXHAUST VALVE Enquire To Order
Photo Part No Description Price (each) Stock
187848 R.H. INDUCTION DISTRIBUTION CAM SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
186321 R.H. VARIATOR OIL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
134701 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
14303474 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127492 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
206785 BUSHING FOR VARIATORS Enquire To Order
Photo Part No Description Price (each) Stock
134701 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
14721120 KEY Enquire To Order
Photo Part No Description Price (each) Stock
185288 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
187820 INDUCTION PHASE VARIATOR Enquire To Order
Photo Part No Description Price (each) Stock
193527 TOOTHED WHEEL Enquire To Order
Photo Part No Description Price (each) Stock
194977 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
187850 L.H. INDUCTION DISTRIBUTION CAM SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
186322 L.H. VARIATOR OIL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
134701 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
14303474 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127492 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
187849 R.H. EXHAUST CAM SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
185422 EXHAUST PHASE VARIATOR Enquire To Order
Photo Part No Description Price (each) Stock
187851 L.H. EXHAUST CAM SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
184188 OIL ACCUMULATOR Enquire To Order
Photo Part No Description Price (each) Stock
184800 BRACKET FIXING ACCUMULATOR Enquire To Order
Photo Part No Description Price (each) Stock
182426 THREADED UNION Enquire To Order
Photo Part No Description Price (each) Stock
192823 R.H. OIL PIPE Enquire To Order
Photo Part No Description Price (each) Stock
187534 L.H. OIL PIPE Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
View All

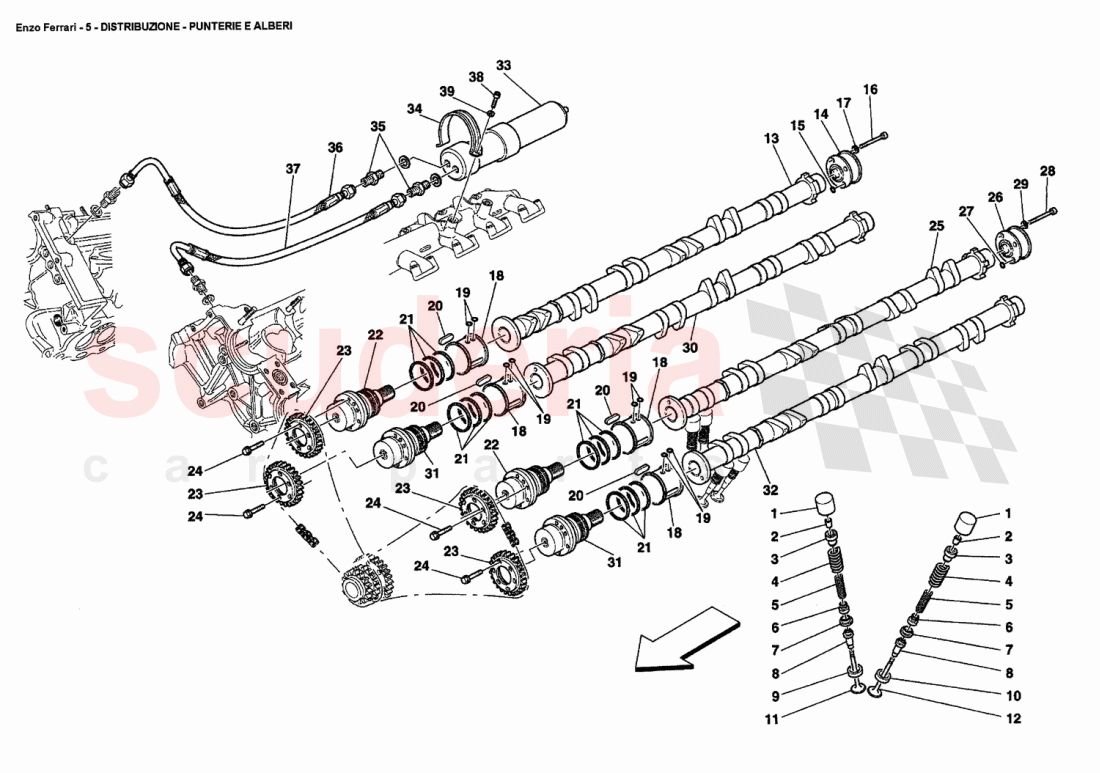

TIMING - TAPPETS AND SHAFTS of Ferrari Ferrari Enzo Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 176483
INTAKE VALVE GUIDE - OVERSIZED
OVERSIZED 		- 48 Enquire
1 247480
HYDRAULIC TAPPET 		- 48 Enquire
2 179763
VALVE SPRING SEMI-CONE
CUP 		- 96 Enquire
3 187489
UPPER CUP 		- 48 Enquire
4 188849
OUTER SPRING FOR VALVE RETURN
RETURN 		- 48 Enquire
5 184055
INNER SPRING FOR VALVE RETURN
RETURN 		- 48 Enquire
6 221473
OIL SEAL 		- 48 Enquire
7 204178
LOWER CUP 		- 48 Enquire
8 176437
INTAKE VALVE GUIDE 		- 48 Enquire
9 6222847
INTAKE VALVE SEAT 		- 24 Enquire
10 6222848
EXHAUST VALVE SEAT 		- 24 Enquire
11 190525
INTAKE VALVE 		- 24 Enquire
12 238485
EXHAUST VALVE 		- 24 Enquire
13 187848
R.H. INDUCTION DISTRIBUTION CAM SHAFT
DISTRIBUTION CAM SHAFT 		- 1 Enquire
14 186321
R.H. VARIATOR OIL PUMP 		- 1 Enquire
15 134701
O-RING 		- 2 Enquire
16 14303474
SCREW 		- 4 Enquire
17 127492
WASHER 		- 4 Enquire
18 206785
BUSHING FOR VARIATORS 		- 4 Enquire
19 134701
O-RING 		- 8 Enquire
20 14721120
KEY 		- 4 Enquire
21 185288
GASKET 		- 12 Enquire
22 187820
INDUCTION PHASE VARIATOR 		- 2 Enquire
23 193527
TOOTHED WHEEL 		- 4 Enquire
24 194977
SCREW 		- 20 Enquire
25 187850
L.H. INDUCTION DISTRIBUTION CAM SHAFT
CAM SHAFT 		- 1 Enquire
26 186322
L.H. VARIATOR OIL PUMP 		- 1 Enquire
27 134701
O-RING 		- 2 Enquire
28 14303474
SCREW 		- 4 Enquire
29 127492
WASHER 		- 4 Enquire
30 187849
R.H. EXHAUST CAM SHAFT 		- 1 Enquire
31 185422
EXHAUST PHASE VARIATOR 		- 2 Enquire
32 187851
L.H. EXHAUST CAM SHAFT 		- 1 Enquire
33 184188
OIL ACCUMULATOR 		- 1 Enquire
34 184800
BRACKET FIXING ACCUMULATOR 		- 2 Enquire
35 182426
THREADED UNION 		- 2 Enquire
36 192823
R.H. OIL PIPE 		- 1 Enquire
37 187534
L.H. OIL PIPE 		- 1 Enquire
38 248334
SCREW M6 X 14MM 		- 4 Enquire
39 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 4 Enquire
