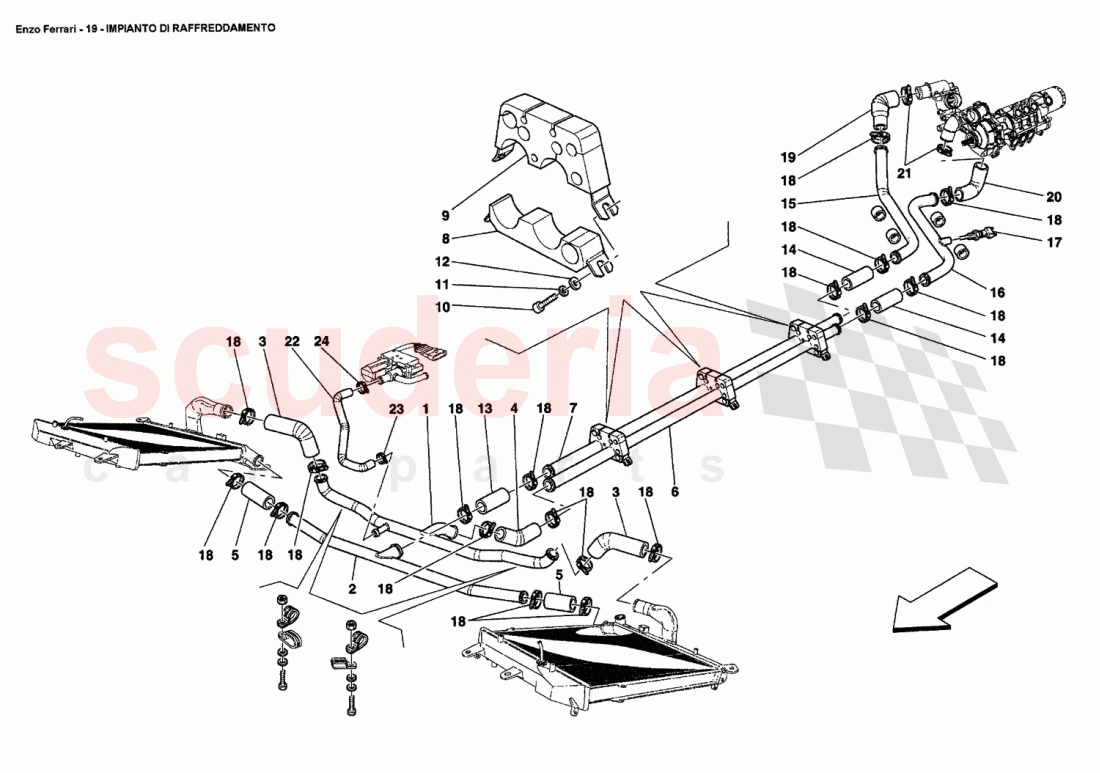

Ferrari Enzo - COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	188485	DELIVERY WATER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188486	RETURN WATER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181742	DELIVERY RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193463	RUBBER RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188422	RETURN RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188064	UNDERFLOOR DELIVERY ALUMINIUM TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191685	UNDERFLOOR RETURN ALUMINIUM TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188811	LOWER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188812	UPPER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191681	RETURN RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188422	RETURN RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188063	DELIVERY TUBE FROM UNDER FLOOR TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189150	RETURN TUBE FROM UNDER FLOOR TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	194208	RETURN RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193464	DELIVERY RUBBER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67191600	TUBE FROM 3 WAY TO TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	188485	DELIVERY WATER PIPE	188485 DELIVERY WATER PIPE	-	1	Enquire
2	188486	RETURN WATER PIPE	188486 RETURN WATER PIPE	-	1	Enquire
3	181742	DELIVERY RUBBER HOSE	181742 DELIVERY RUBBER HOSE	-	2	Enquire
4	193463	RUBBER RETURN PIPE	193463 RUBBER RETURN PIPE	-	1	Enquire
5	188422	RETURN RUBBER HOSE	188422 RETURN RUBBER HOSE	-	2	Enquire
6	188064	UNDERFLOOR DELIVERY ALUMINIUM TUBE	188064 UNDERFLOOR DELIVERY ALUMINIUM TUBE ALUMINIUM TUBE	-	1	Enquire
7	191685	UNDERFLOOR RETURN ALUMINIUM TUBE	191685 UNDERFLOOR RETURN ALUMINIUM TUBE ALUMINIUM TUBE	-	1	Enquire
8	188811	LOWER SUPPORT	188811 LOWER SUPPORT	-	3	Enquire
9	188812	UPPER SUPPORT	188812 UPPER SUPPORT	-	3	Enquire
10	13026924	SCREW	13026924 SCREW	-	6	Enquire
11	13577724	WASHER	13577724 WASHER	-	6	Enquire
12	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
13	191681	RETURN RUBBER HOSE	191681 RETURN RUBBER HOSE	-	1	Enquire
14	188422	RETURN RUBBER HOSE	188422 RETURN RUBBER HOSE	-	2	Enquire
15	188063	DELIVERY TUBE FROM UNDER FLOOR TO PUMP	188063 DELIVERY TUBE FROM UNDER FLOOR TO PUMP UNDER FLOOR TO PUMP	-	1	Enquire
16	189150	RETURN TUBE FROM UNDER FLOOR TO PUMP	189150 RETURN TUBE FROM UNDER FLOOR TO PUMP UNDER FLOOR TO PUMP	-	1	Enquire
17	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	-	1	Enquire
18	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	18	Enquire
19	194208	RETURN RUBBER HOSE	194208 RETURN RUBBER HOSE	-	1	Enquire
20	193464	DELIVERY RUBBER HOSE	193464 DELIVERY RUBBER HOSE	-	1	Enquire
21	13000790	SCREW COLLAR	13000790 SCREW COLLAR	-	2	Enquire
22	67191600	TUBE FROM 3 WAY TO TGK VALVE	67191600 TUBE FROM 3 WAY TO TGK VALVE	-	1	Enquire
23	13000490	Screw Collar	13000490 Screw Collar	-	1	Enquire
24	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
