AIR INTAKE MANIFOLD AND AIR BOX of Ferrari Ferrari Enzo

View All

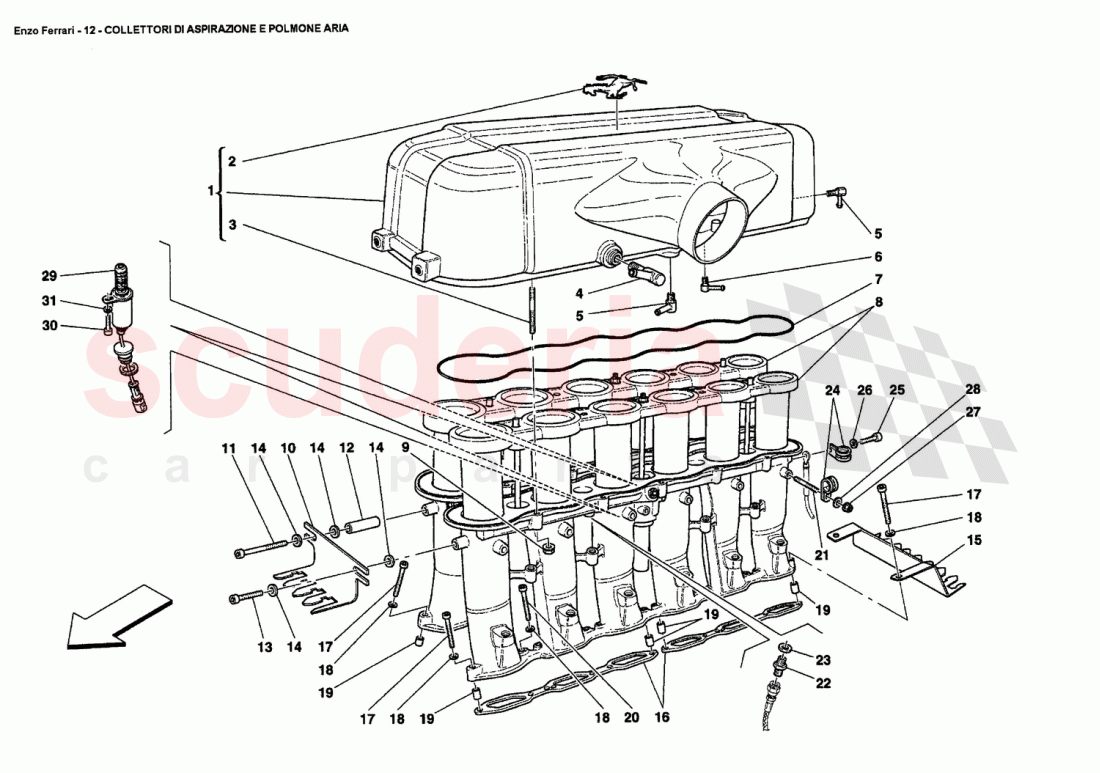

Ferrari Enzo - AIR INTAKE MANIFOLD AND AIR BOX

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	191038	COMPLETE PLENUM CHAMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196001	CAVALLINO RAMPANTE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500824	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195510	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195508	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195509	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190716	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186402	COMPLETE SUCTION MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185659	FRONT SENSORS FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305587	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169037	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185660	REAR SENSORS FIXING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184647	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	182426	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	-	3	Enquire
1	191038	COMPLETE PLENUM CHAMBER	191038 COMPLETE PLENUM CHAMBER	-	1	Enquire
2	196001	CAVALLINO RAMPANTE	196001 CAVALLINO RAMPANTE	-	1	Enquire
3	11500824	STUD	11500824 STUD	-	18	Enquire
4	195510	THREADED CONNECTOR	195510 THREADED CONNECTOR M14x1,25	-	2	Enquire
5	195508	CONNECTOR	195508 CONNECTOR M8x1	-	4	Enquire
6	195509	CONNECTOR	195509 CONNECTOR M6x1	-	2	Enquire
7	190716	GASKET	190716 GASKET	-	2	Enquire
8	186402	COMPLETE SUCTION MANIFOLD	186402 COMPLETE SUCTION MANIFOLD	-	2	Enquire
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	18	Enquire
10	185659	FRONT SENSORS FIXING BRACKET	185659 FRONT SENSORS FIXING BRACKET	-	1	Enquire
11	14305587	SCREW	14305587 SCREW	-	1	Enquire
12	169037	SPACER	169037 SPACER	-	1	Enquire
13	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
14	13577724	WASHER	13577724 WASHER	-	4	Enquire
15	185660	REAR SENSORS FIXING BRACKET	185660 REAR SENSORS FIXING BRACKET	-	1	Enquire
16	184647	GASKET	184647 GASKET	-	4	Enquire
17	231622	SCREW	231622 SCREW	-	8	Enquire
18	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	24	Enquire
19	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	8	Enquire
20	231620	SCREW	231620 SCREW	-	16	Enquire
21	11500124	STUD BOLT	11500124 STUD BOLT	-	12	Enquire
22	182426	THREADED UNION	182426 THREADED UNION	-	2	Enquire
23	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5	-	2	Enquire
24	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	11	Enquire
25	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	2	Enquire
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
27	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	12	Enquire
28	10519424	WASHER	10519424 WASHER	-	12	Enquire
