CHANKCASE of Ferrari Ferrari California (2008-2011)

View All

Ferrari California (2008-2011) - CHANKCASE

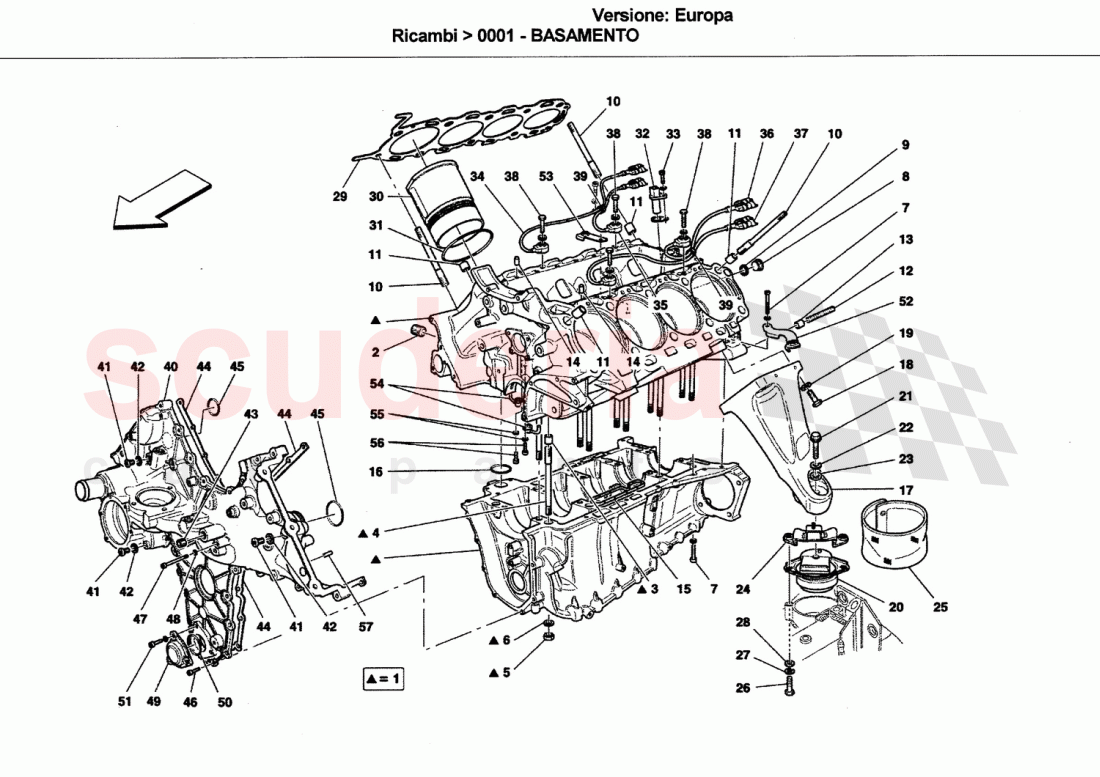

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	243454	COMPLETE CRANKCASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	217794	STUD BOLT	Enquire	To Order
	219800	STUD BOLT	Enquire	To Order
	217796	STUD BOLT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254979	STUD BOLT	Enquire	To Order
	254982	STUD BOLT	Enquire	To Order
	13546834	STUD BOLT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177727	CENTRING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236143	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140071	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244634	LH ENGINE-CHASSIS MOUNTING STRUT	Enquire	To Order
	244633	RH ENGINE-CHASSIS MOUNTING STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11306934	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269817	Elastic Engine Mounting Bushing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11112834	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278261	BUSH TRAVEL LIMITER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247858	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15972224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

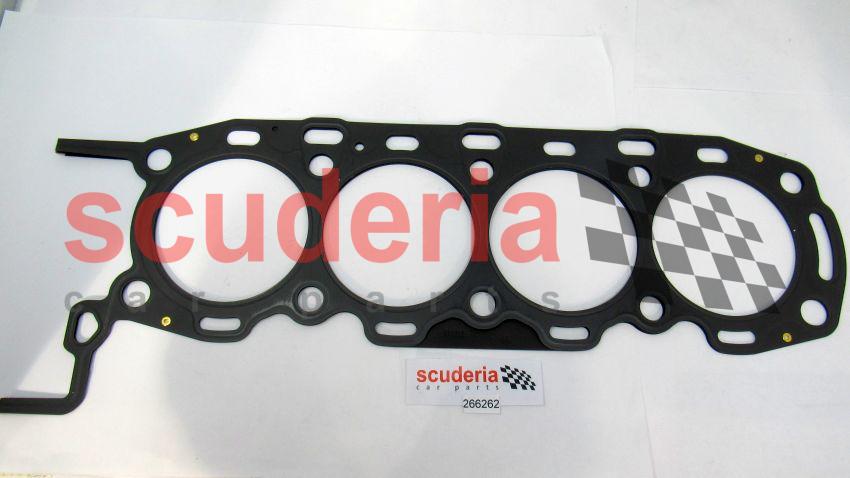

	266262	RH HEAD GASKET	Enquire	To Order

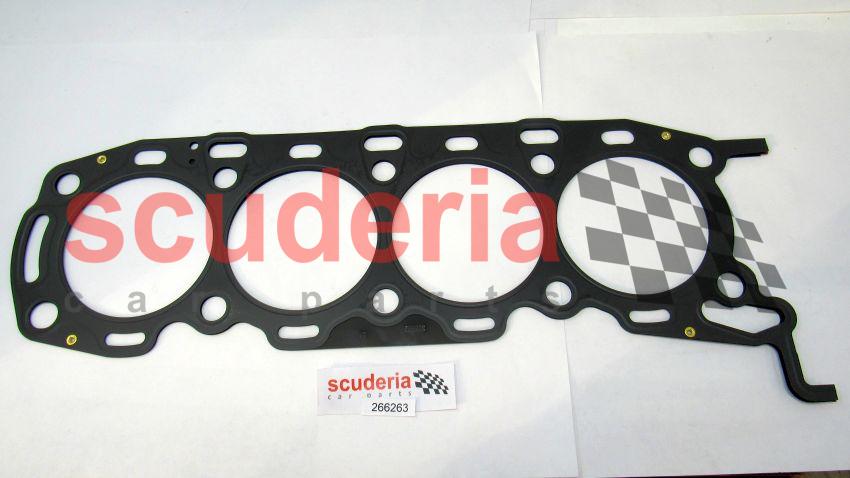

	266263	LH HEAD GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243339	CYLINDER SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236527	ANGULAR SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246802	COMPLETE SENSOR FOR FIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246803	COMPLETE SENSOR FOR FIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246804	COMPLETE SENSOR FOR FIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246805	COMPLETE SENSOR FOR FIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254154	COMPLETE FRONT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235748	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10296160	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	235754	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

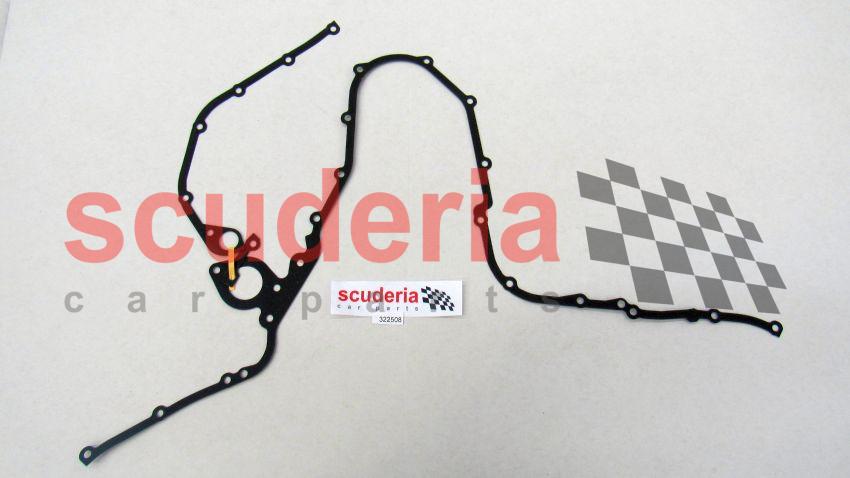

	322508	FRONT COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	231622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10589624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247185	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246325	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206739	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257212	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175657	PISTON COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	254051	ENGINE GASKET KIT	254051 ENGINE GASKET KIT	-	1	Enquire
1	243454	COMPLETE CRANKCASE	243454 COMPLETE CRANKCASE	-	1	Enquire
2	282753	THREADED PLUG	282753 THREADED PLUG	-	2	Enquire
3	176421	CENTERING DOWEL	176421 CENTERING DOWEL	-	2	Enquire
4	217794	STUD BOLT	217794 STUD BOLT	-	8	Enquire
4	219800	STUD BOLT	219800 STUD BOLT	-	2	Enquire
4	217796	STUD BOLT	217796 STUD BOLT	-	8	Enquire
4	219801	STUD BOLT	219801 STUD BOLT	-	2	Enquire
5	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	20	Enquire
6	178348	WASHER	178348 WASHER	-	20	Enquire
7	231620	SCREW	231620 SCREW	-	13	Enquire
7	231625	SCREW	231625 SCREW	-	2	Enquire
8	307477	THREADED PLUG	307477 THREADED PLUG	-	1	Enquire
9	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	1	Enquire
10	802590	STUD BOLT	802590 STUD BOLT	-	20	Enquire
11	185360	CENTERING DOWEL	185360 CENTERING DOWEL	-	4	Enquire
12	254979	STUD BOLT	254979 STUD BOLT	-	1	Enquire
12	254982	STUD BOLT	254982 STUD BOLT	-	1	Enquire
12	13546834	STUD BOLT	13546834 STUD BOLT	-	4	Enquire
12	13546834	STUD BOLT	13546834 STUD BOLT	-	2	Enquire
13	100052	CENTERING DOWEL	100052 CENTERING DOWEL	-	2	Enquire
14	177727	CENTRING DOWEL	177727 CENTRING DOWEL	-	2	Enquire
15	236143	GASKET	236143 GASKET	-	2	Enquire
16	140071	O-Ring	140071 O-Ring	-	1	Enquire
17	244634	LH ENGINE-CHASSIS MOUNTING STRUT	244634 LH ENGINE-CHASSIS MOUNTING STRUT	-	1	Enquire
17	244633	RH ENGINE-CHASSIS MOUNTING STRUT	244633 RH ENGINE-CHASSIS MOUNTING STRUT	-	1	Enquire
18	11306934	SCREW	11306934 SCREW	-	8	Enquire
19	11190574	WASHER	11190574 WASHER	-	8	Enquire
20	269817	Elastic Engine Mounting Bushing	269817 Elastic Engine Mounting Bushing	-	2	Enquire
21	11112834	SCREW	11112834 SCREW	-	2	Enquire
22	127498	WASHER	127498 WASHER	-	2	Enquire
23	10738021	WASHER	10738021 WASHER	-	2	Enquire
24	278261	BUSH TRAVEL LIMITER BRACKET	278261 BUSH TRAVEL LIMITER BRACKET	-	2	Enquire
25	247858	HEAT SHIELD	247858 HEAT SHIELD	-	2	Enquire
26	15972224	SCREW	15972224 SCREW	-	4	Enquire
27	127497	WASHER	127497 WASHER	-	4	Enquire
28	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	4	Enquire
29	266262	RH HEAD GASKET	266262 RH HEAD GASKET	-	1	Enquire
29	266263	LH HEAD GASKET	266263 LH HEAD GASKET	-	1	Enquire
30	243339	CYLINDER SLEEVE	243339 CYLINDER SLEEVE	-	8	Enquire
31	186251	O-RING	186251 O-RING	-	24	Enquire
32	236527	ANGULAR SPEED SENSOR	236527 ANGULAR SPEED SENSOR	-	1	Enquire
33	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	1	Enquire
34	246802	COMPLETE SENSOR FOR FIRING	246802 COMPLETE SENSOR FOR FIRING	-	1	Enquire
35	246803	COMPLETE SENSOR FOR FIRING	246803 COMPLETE SENSOR FOR FIRING	-	1	Enquire
36	246804	COMPLETE SENSOR FOR FIRING	246804 COMPLETE SENSOR FOR FIRING	-	1	Enquire
37	246805	COMPLETE SENSOR FOR FIRING	246805 COMPLETE SENSOR FOR FIRING	-	1	Enquire
38	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	4	Enquire
39	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	3	Enquire
40	254154	COMPLETE FRONT COVER	254154 COMPLETE FRONT COVER	-	1	Enquire
41	235748	CAP	235748 CAP	-	3	Enquire
42	10296160	GASKET	10296160 GASKET	-	3	Enquire
43	235754	THREADED PLUG	235754 THREADED PLUG	-	1	Enquire
44	322508	FRONT COVER GASKET	322508 FRONT COVER GASKET	-	1	Enquire
45	183010	O-RING	183010 O-RING	-	2	Enquire
46	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	18	Enquire
46	231622	SCREW	231622 SCREW	-	10	Enquire
47	10589624	SCREW	10589624 SCREW	-	1	Enquire
48	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
49	247185	COVER	247185 COVER	-	1	Enquire
50	246325	GASKET	246325 GASKET	-	1	Enquire
51	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	3	Enquire
52	206739	CLAMP	206739 CLAMP	-	1	Enquire
53	257212	BRACKET	257212 BRACKET	-	2	Enquire
54	175657	PISTON COOLING NOZZLE	175657 PISTON COOLING NOZZLE	-	8	Enquire
55	11181474	WASHER	11181474 WASHER	-	8	Enquire
56	14302921	SCREW	14302921 SCREW	-	8	Enquire
57	175611	CENTERING DOWEL	175611 CENTERING DOWEL	-	2	Enquire
