Name: HEAT EXCHANGER
Rating: 4.4 (1 reviews)

View All

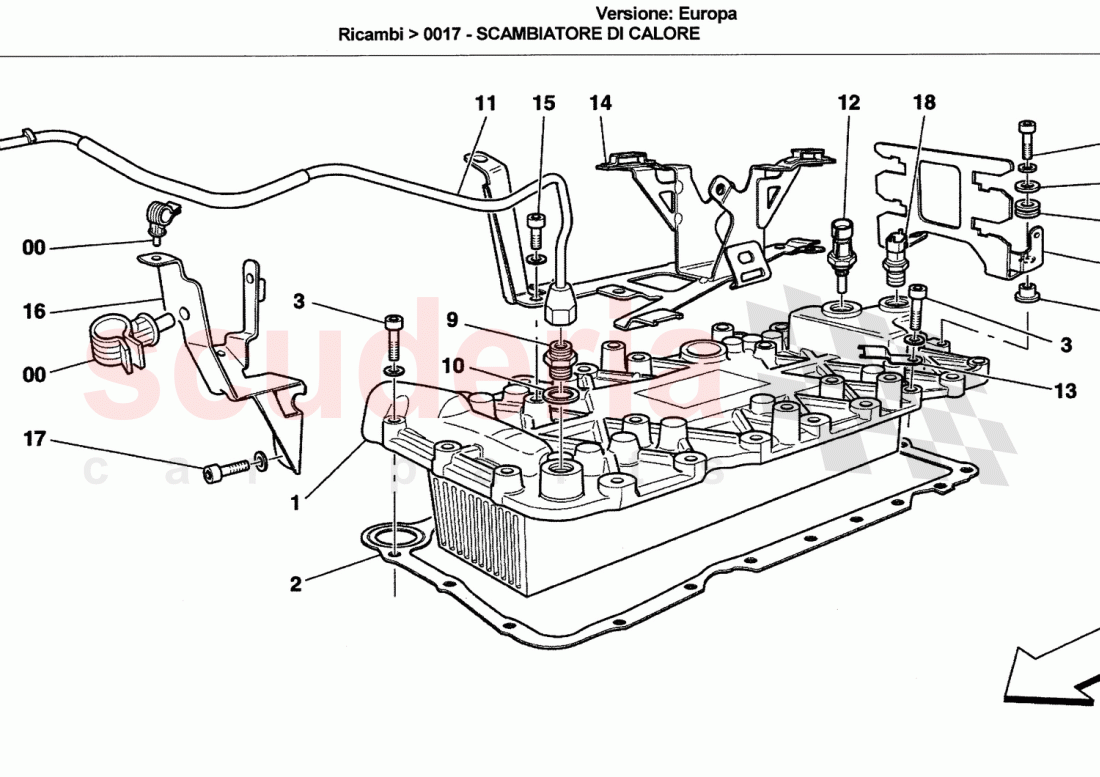

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	239137	HEAT EXCHANGER	$1,980.06	To Order

Photo	Part No	Description	Price (each)	Stock
	322663	HEAT EXCHANGER GASKET	$46.52	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	192327	CONNECTOR	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	247944	WATER VENT PIPE	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	201672	OIL PRESSURE TRANSMITTER	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	251595	CABLES SUPPORT BRACKET	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	248044	BRACKET	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	288663	SECONDARY AIR PIPE MOUNTING BRACKET	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$30.23	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	239137	HEAT EXCHANGER	239137 HEAT EXCHANGER	$1,980.06	1
2	322663	HEAT EXCHANGER GASKET	322663 HEAT EXCHANGER GASKET	$46.52	1
3	231620	SCREW	231620 SCREW	$0.32 MSRP: ~~0.35~~ (8.6% off)	18
4	251249	BRACKET	251249 BRACKET	$59.35	1
5	149707	SPACER	149707 SPACER	$1.17 MSRP: ~~1.75~~ (33.1% off)	2
6	177576	CABLE GROMMET	177576 CABLE GROMMET	$2.33	2
7	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
8	248334	SCREW	248334 SCREW	$0.68	3
9	192327	CONNECTOR	192327 CONNECTOR	$5.12	1
10	127497	WASHER	127497 WASHER	$0.06 MSRP: ~~0.75~~ (92% off)	1
11	247944	WATER VENT PIPE	247944 WATER VENT PIPE	$97.86 MSRP: ~~120.19~~ (18.6% off)	1
12	201672	OIL PRESSURE TRANSMITTER	201672 OIL PRESSURE TRANSMITTER	$6.56 MSRP: ~~10.25~~ (36% off)	1
13	251595	CABLES SUPPORT BRACKET	251595 CABLES SUPPORT BRACKET	$10.89	1
14	248044	BRACKET	248044 BRACKET	$240.67	1
15	231620	SCREW	231620 SCREW	$0.32 MSRP: ~~0.35~~ (8.6% off)	2
16	288663	SECONDARY AIR PIPE MOUNTING BRACKET	288663 SECONDARY AIR PIPE MOUNTING BRACKET	$141.19	1
17	248334	SCREW	248334 SCREW	$0.68	1
18	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR	$30.23 MSRP: ~~32.99~~ (8.4% off)	2
