Name: LUBRICATION SYSTEM: CIRCUIT AND COLLECTION
Rating: 4.1 (1 reviews)

View All

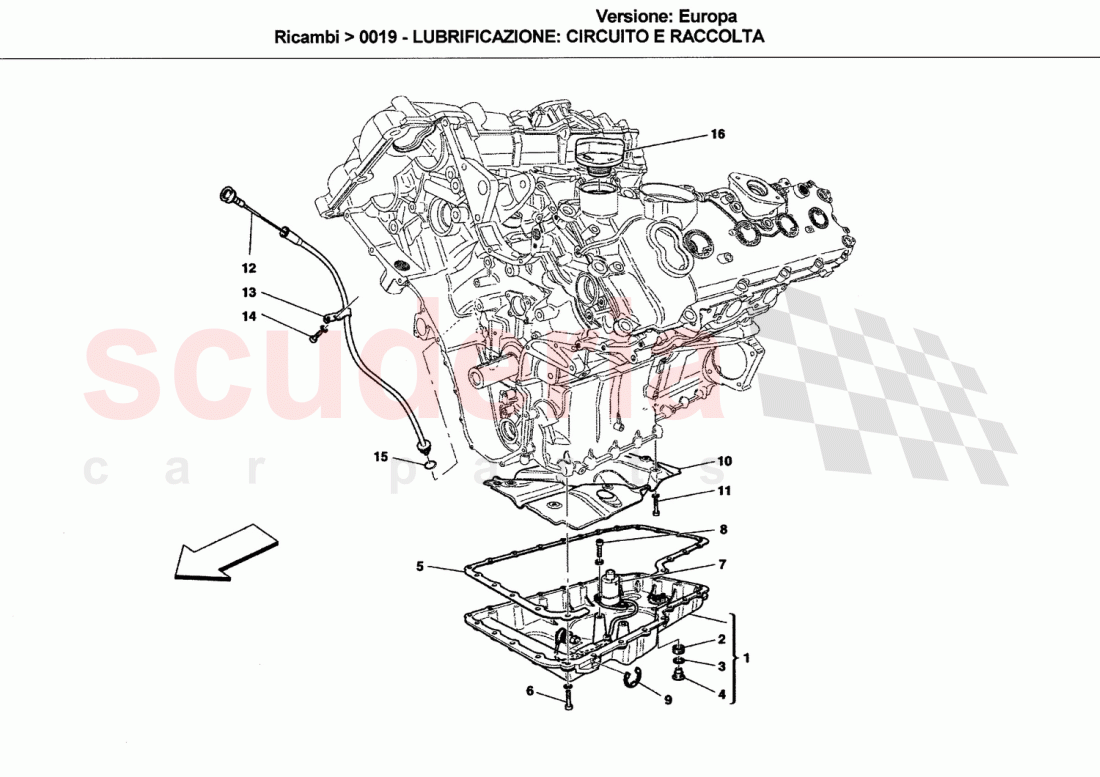

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	240052	COMPLETE OIL SUMP	$563.13	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	$5.96	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	322667	SUB CRANKCASE OIL SUMP GASKET	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	230171	OIL LEVEL SENSOR	$51.41	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	16165276	SNAP RING	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	251166	SUMP SHIELD	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	159871	SEAL RING	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	247720	OIL PLUG	$30.47	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	240052	COMPLETE OIL SUMP	240052 COMPLETE OIL SUMP	$563.13	1
2	223577	THREADED INSERT M22 X 1.5 X 9MM	223577 THREADED INSERT M22 X 1.5 X 9MM	$5.96	1
3	10261860	GASKET	10261860 GASKET	$0.45 MSRP: ~~1.00~~ (55% off)	1
4	104280	MAGNETIC THREADED PLUG M22 X 1.5	104280 MAGNETIC THREADED PLUG M22 X 1.5	$6.26 MSRP: ~~6.90~~ (9.3% off)	1
5	322667	SUB CRANKCASE OIL SUMP GASKET	322667 SUB CRANKCASE OIL SUMP GASKET	$48.12	1
6	231619	SCREW	231619 SCREW	$0.31	24
7	230171	OIL LEVEL SENSOR ARRIVING SOON	230171 OIL LEVEL SENSOR ARRIVING SOON	$51.41 MSRP: ~~67.22~~ (23.5% off)	1
8	231625	SCREW	231625 SCREW	$0.65	2
9	16165276	SNAP RING	16165276 SNAP RING	$0.52	1
10	251166	SUMP SHIELD	251166 SUMP SHIELD	$94.66	1
11	248334	SCREW	248334 SCREW	$0.68	6
12	250940	OIL DIPSTICK	250940 OIL DIPSTICK	$240.67	1
12	250954	OIL DIPSTICK	250954 OIL DIPSTICK	$30.08	1
13	250808	OIL LEVEL ROD EXTENTION	250808 OIL LEVEL ROD EXTENTION	$117.12	1
13	252371	OIL LEVEL ROD EXTENTION	252371 OIL LEVEL ROD EXTENTION	$323.43	1
14	248334	SCREW	248334 SCREW	$0.68	1
15	159871	SEAL RING	159871 SEAL RING	$0.63 MSRP: ~~1.40~~ (55% off)	1
16	247720	OIL PLUG	247720 OIL PLUG	$30.47	1
17	257212	BRACKET	257212 BRACKET	$64.17	1
