Alternator Starting Motor And A.c. Compressor

Ferrari California (2008-2011)

Find Your Part

Ferrari California (2008-2011) - ALTERNATOR STARTING MOTOR AND A.C. COMPRESSOR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock

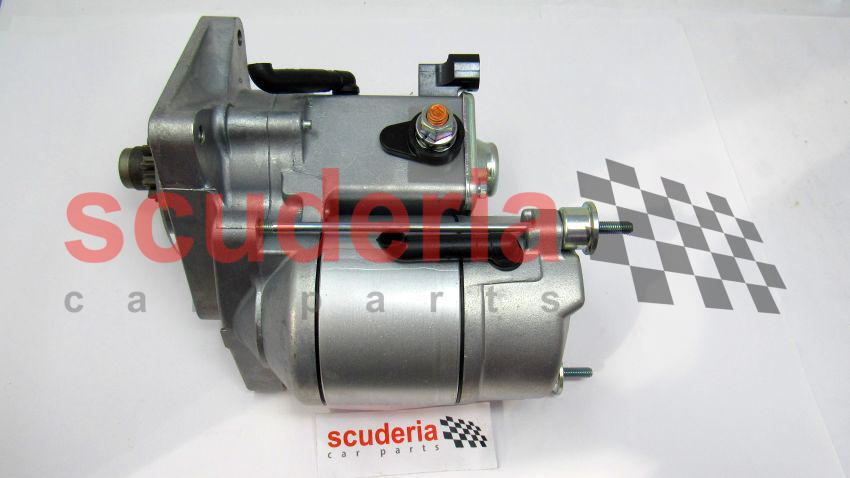

252087 STARTER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
248066 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
15896470 NUT Enquire To Order
Photo Part No Description Price (each) Stock
127493 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
215645 SPACER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
14498824 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
124683 PROTECTIVE CAP Enquire To Order
Photo Part No Description Price (each) Stock
251293 ANTI-HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
263829 ALTERNATOR Enquire To Order
Photo Part No Description Price (each) Stock
14308724 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
203135 SCREW WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10569474 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
247088 THREADED BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
253732 THREADED BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
247087 THREADED BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
244781 THREADED BUSHING Enquire To Order
Photo Part No Description Price (each) Stock

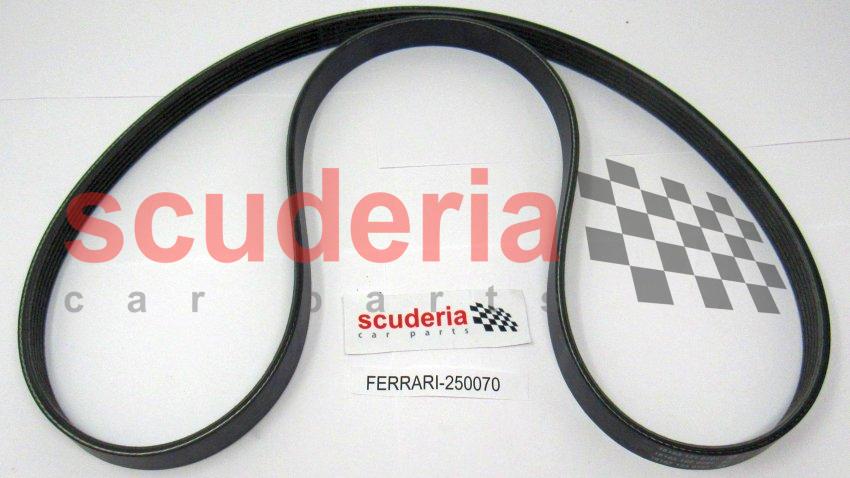

250070 Compressor Control Belt Enquire To Order
Photo Part No Description Price (each) Stock

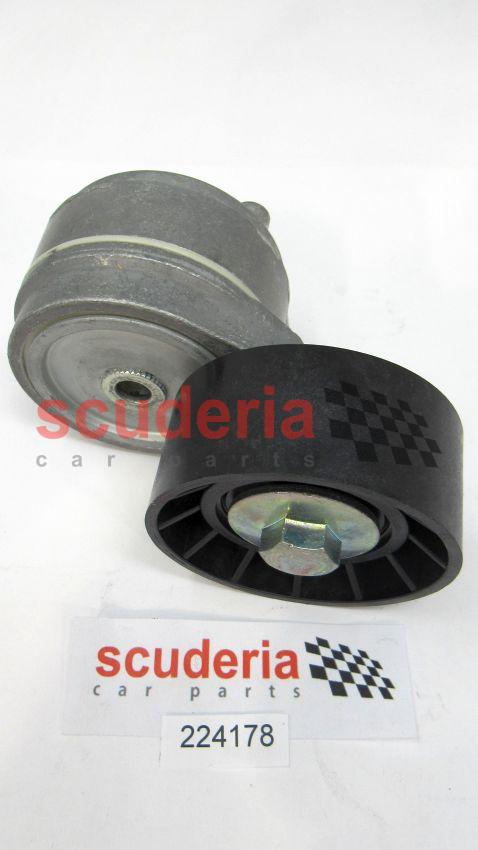

224178 BELT TIGHTENER Enquire To Order
Photo Part No Description Price (each) Stock
227894 BELT TIGHTENING PULLEY Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
268567 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11193874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11343821 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10569474 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
226205 Belt Tightening Pulley Enquire To Order
Photo Part No Description Price (each) Stock
16043324 SCREW M8 X 18 Enquire To Order
Photo Part No Description Price (each) Stock
12642078 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12647021 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
263173 AIR CONDITIONING COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
243936 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14307224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11193874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
250238 OUTER SHIELD SUPPORT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
250239 CRANKCASE SHIELD SUPPORT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
246208 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11186374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
256467 CABLE FROM ALTERNATOR TO STARTER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
247169 ALTERNATOR BRACKET STIFFENER Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
222072 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
246722 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
253024 ANTI-HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
View All

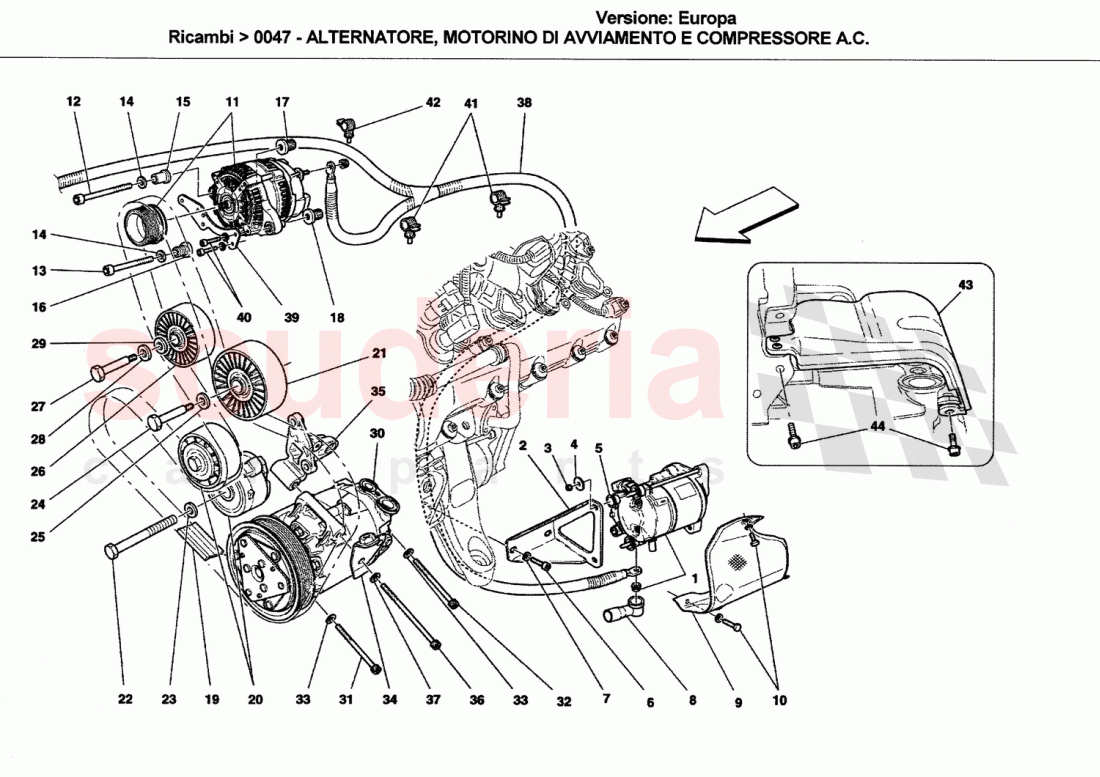

ALTERNATOR STARTING MOTOR AND A.C. COMPRESSOR of Ferrari Ferrari California (2008-2011) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 252087
STARTER MOTOR 		- 1 Enquire
2 248066
BRACKET 		- 1 Enquire
3 15896470
NUT 		- 2 Enquire
4 127493
WASHER 		- 2 Enquire
5 215645
SPACER BUSHING 		- 2 Enquire
6 248334
SCREW M6 X 14MM 		- 2 Enquire
7 14498824
WASHER 		- 2 Enquire
8 124683
PROTECTIVE CAP 		- 1 Enquire
9 251293
ANTI-HEAT SHIELD 		- 1 Enquire
10 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 3 Enquire
11 263829
ALTERNATOR 		- 1 Enquire
12 14308724
SCREW 		- 1 Enquire
13 203135
SCREW WITH WASHER 		- 1 Enquire
14 10569474
WASHER 		- 2 Enquire
15 247088
THREADED BUSHING 		- 1 Enquire
16 253732
THREADED BUSHING 		- 1 Enquire
17 247087
THREADED BUSHING 		- 1 Enquire
18 244781
THREADED BUSHING 		- 1 Enquire
19 250070
Compressor Control Belt 		- 1 Enquire
20 224178
BELT TIGHTENER 		- 1 Enquire
21 227894
BELT TIGHTENING PULLEY
ARRIVING SOON 		- 1 Enquire
22 268567
SCREW 		- 1 Enquire
23 11193874
WASHER 		- 1 Enquire
24 11343821
SCREW 		- 1 Enquire
25 10569474
WASHER 		- 1 Enquire
26 226205
Belt Tightening Pulley 		- 1 Enquire
27 16043324
SCREW M8 X 18 		- 1 Enquire
28 12642078
WASHER 		- 1 Enquire
29 12647021
WASHER 		- 1 Enquire
30 263173
AIR CONDITIONING COMPRESSOR 		- 1 Enquire
31 243936
SCREW 		- 1 Enquire
32 14307224
SCREW 		- 1 Enquire
33 11193874
WASHER 		- 2 Enquire
34 250238
OUTER SHIELD SUPPORT BRACKET 		- 1 Enquire
35 250239
CRANKCASE SHIELD SUPPORT BRACKET 		- 1 Enquire
36 246208
SCREW 		- 1 Enquire
37 11186374
WASHER 		- 1 Enquire
38 256467
CABLE FROM ALTERNATOR TO STARTER MOTOR 		- 1 Enquire
39 247169
ALTERNATOR BRACKET STIFFENER 		- 1 Enquire
40 231620
SCREW 		- 5 Enquire
41 222072
CLIP 		- 2 Enquire
42 246722
CLIP 		- 1 Enquire
43 253024
ANTI-HEAT SHIELD 		- 1 Enquire
44 248334
SCREW M6 X 14MM 		- 2 Enquire
