Timing-Shafts And Valves

Ferrari California (2008-2011)

Find Your Part

Ferrari California (2008-2011) - TIMING-SHAFTS AND VALVES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
241906 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $497.41 IN STOCK
Photo Part No Description Price (each) Stock
254892 SCREW $14.33 IN STOCK
Photo Part No Description Price (each) Stock
246965 O-RING $12.03 IN STOCK
Photo Part No Description Price (each) Stock
240995 RH INTAKE CAMSHAFT $289.82 To Order
Photo Part No Description Price (each) Stock
240996 LH INTAKE CAMSHAFT $289.82 To Order
Photo Part No Description Price (each) Stock
250173 RH EXHAUST CAMSHAFT $289.82 To Order
Photo Part No Description Price (each) Stock
250174 LH EXHAUST CAMSHAFT $289.82 To Order
Photo Part No Description Price (each) Stock
248020 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $497.41 IN STOCK
Photo Part No Description Price (each) Stock
240559 DIAMOND COATED WASHER $9.11 IN STOCK
Photo Part No Description Price (each) Stock
247480 HYDRAULIC TAPPET $94.66 IN STOCK
Photo Part No Description Price (each) Stock
179763 VALVE SPRING SEMI-CONE $0.86 IN STOCK
Photo Part No Description Price (each) Stock
237390 UPPER STOP CAP $9.61 To Order
Photo Part No Description Price (each) Stock
197900 EXTERNAL VALVE RETURN SPRING $7.05 IN STOCK
Photo Part No Description Price (each) Stock
197901 INTERNAL VALVE RETURN SPRING $5.12 IN STOCK
Photo Part No Description Price (each) Stock
221473 OIL SEAL $1.75 IN STOCK
Photo Part No Description Price (each) Stock
242574 LOWER STOP CAP $10.73 IN STOCK
Photo Part No Description Price (each) Stock
6213498 VALVE GUIDE $3.19 To Order
Photo Part No Description Price (each) Stock
6222847 INTAKE VALVE SEAT $9.29 To Order
Photo Part No Description Price (each) Stock
6222848 EXHAUST VALVE SEAT $9.94 To Order
Photo Part No Description Price (each) Stock
198581 INTAKE VALVE $15.92 IN STOCK
Photo Part No Description Price (each) Stock
238485 EXHAUST VALVE $26.16 IN STOCK
Photo Part No Description Price (each) Stock
259198 LOWER SPRING RETAINER, EXHAUST SIDE $6.24 To Order
View All

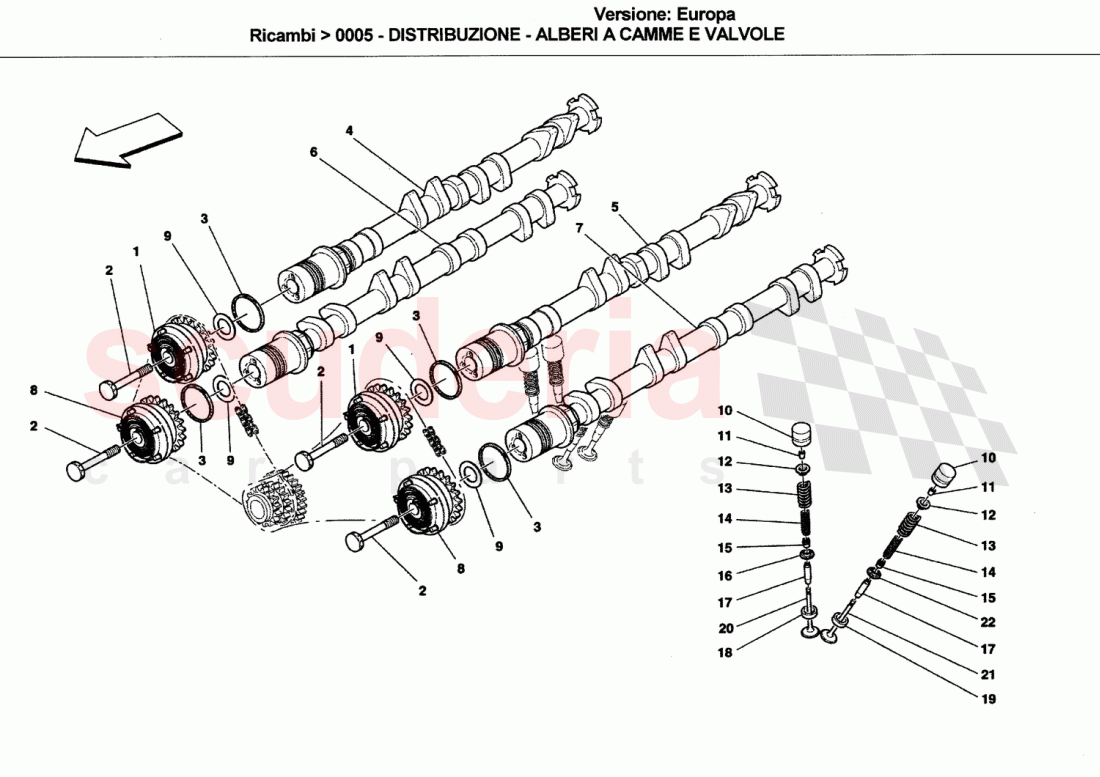

TIMING-SHAFTS AND VALVES of Ferrari Ferrari California (2008-2011) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 241906
VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT
IN STOCK 		$497.41 2
2 254892
SCREW
IN STOCK 		$14.33 4
3 246965
O-RING
IN STOCK 		$12.03 4
4 240995
RH INTAKE CAMSHAFT 		$289.82 1
5 240996
LH INTAKE CAMSHAFT 		$289.82 1
6 250173
RH EXHAUST CAMSHAFT 		$289.82 1
7 250174
LH EXHAUST CAMSHAFT 		$289.82 1
8 248020
VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT
IN STOCK 		$497.41 2
9 240559
DIAMOND COATED WASHER
IN STOCK 		$9.11 4
10 247480
HYDRAULIC TAPPET
IN STOCK 		$94.66 32
11 179763
VALVE SPRING SEMI-CONE
IN STOCK 		$0.86 (4.4% off) 64
12 237390
UPPER STOP CAP 		$9.61 32
13 197900
EXTERNAL VALVE RETURN SPRING
IN STOCK 		$7.05 32
14 197901
INTERNAL VALVE RETURN SPRING
IN STOCK 		$5.12 32
15 221473
OIL SEAL
IN STOCK 		$1.75 (32.7% off) 32
16 242574
LOWER STOP CAP
IN STOCK 		$10.73 16
17 6213498
VALVE GUIDE 		$3.19 (26.3% off) 32
18 6222847
INTAKE VALVE SEAT 		$9.29 16
19 6222848
EXHAUST VALVE SEAT 		$9.94 16
20 198581
INTAKE VALVE
IN STOCK 		$15.92 (33.6% off) 16
21 238485
EXHAUST VALVE
IN STOCK 		$26.16 16
22 259198
LOWER SPRING RETAINER, EXHAUST SIDE 		$6.24 16
