REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari California T

View All

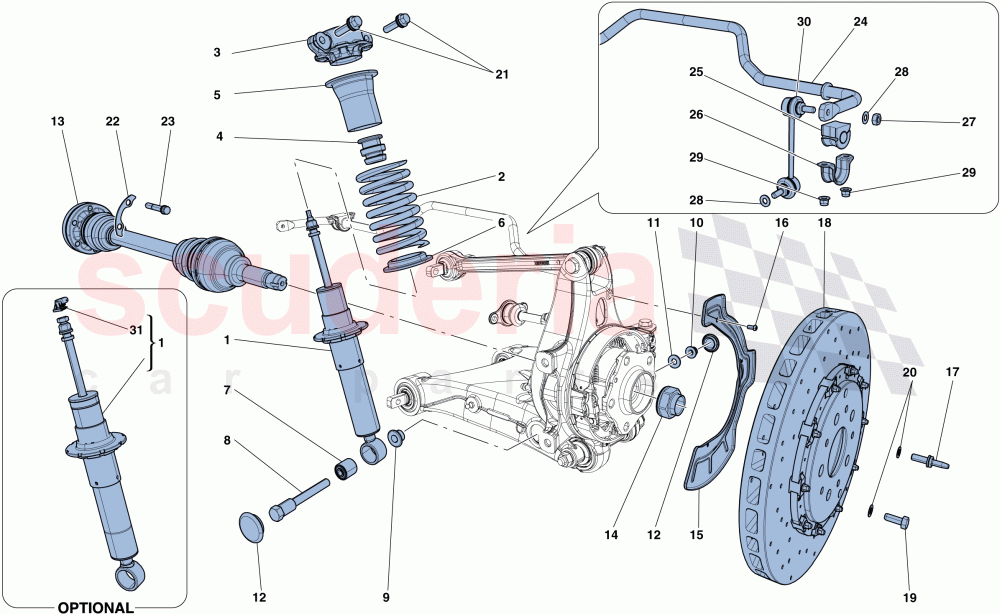

Ferrari California T - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	324167	REAR SHOCK ABSORBER	Enquire	To Order
	308243	REAR SHOCK ABSORBER	Enquire	To Order
	324168	REAR SHOCK ABSORBER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	304242	REAR SUSPENSION SPRING	Enquire	To Order
	312992	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250394	STOP CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267936	SHOCK ABSORBER BUSH	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	212517	UPPER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188996	LOWER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	BALL JOINT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	246962	SPECIAL SCREW M12 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237821	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14507987	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226650	COMPLETE AXLE SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203780	Hub Nut Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257423	LH REAR DISC SHIELD	Enquire	To Order
	257424	RH REAR DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304561	Rear Brake Disc	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228131	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248790	SCREW M12 X 1.25 X 50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	220325	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237590	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274172	REAR STABILISER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236242	Roll Bar Bush D21 x 36	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244778	RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578321	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	242392	BALL-JOINT TIE-ROD	Enquire	To Order
	242391	BALL-JOINT TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234671	UPPER CONNECTOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	324167	REAR SHOCK ABSORBER	324167 REAR SHOCK ABSORBER Dual Mode Magneride; Special Handling Pack; Applicable from Ass. No. 140672	-	2	Enquire
1	308243	REAR SHOCK ABSORBER	308243 REAR SHOCK ABSORBER Applicable up to Ass. No. 140671	-	2	Enquire
1	324168	REAR SHOCK ABSORBER	324168 REAR SHOCK ABSORBER Applicable from Ass. No. 140672	-	2	Enquire

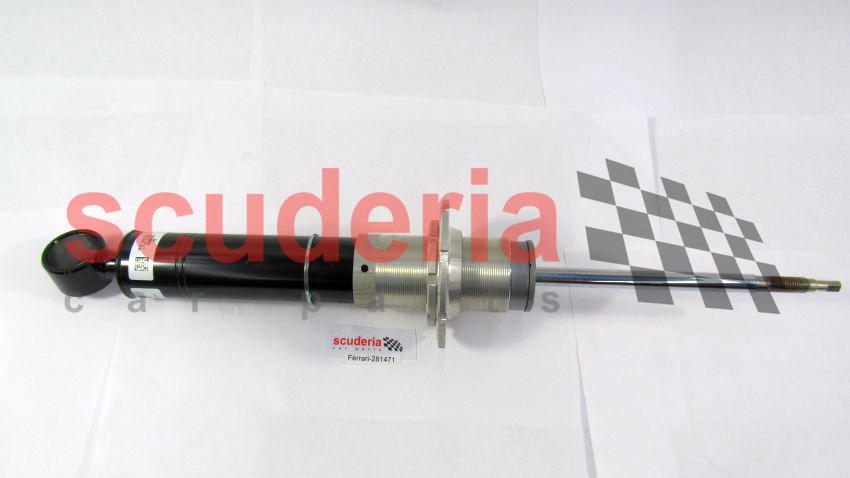

1	281471	REAR SHOCK ABSORBER	281471 REAR SHOCK ABSORBER Dual Mode Magneride; Special Handling Pack; Applicable up to Ass. No. 140671	-	2	Enquire
2	304242	REAR SUSPENSION SPRING	304242 REAR SUSPENSION SPRING	-	2	Enquire
2	312992	SPRING	312992 SPRING Special Handling Pack	-	2	Enquire
3	250394	STOP CAP	250394 STOP CAP	-	2	Enquire
4	267936	SHOCK ABSORBER BUSH ARRIVING SOON	267936 SHOCK ABSORBER BUSH ARRIVING SOON	-	2	Enquire
5	212517	UPPER SPACER	212517 UPPER SPACER	-	2	Enquire
6	188996	LOWER SPACER	188996 LOWER SPACER	-	2	Enquire
7	157630	BALL JOINT ARRIVING SOON	157630 BALL JOINT ARRIVING SOON	-	2	Enquire
8	246962	SPECIAL SCREW M12 X 1.25	246962 SPECIAL SCREW M12 X 1.25	-	2	Enquire
9	237821	BUSH	237821 BUSH	-	2	Enquire
10	255271	NUT	255271 NUT	-	2	Enquire
11	12646921	WASHER	12646921 WASHER	-	2	Enquire
12	14507987	PLUG	14507987 PLUG	-	4	Enquire
13	226650	COMPLETE AXLE SHAFT	226650 COMPLETE AXLE SHAFT	-	2	Enquire
14	203780	Hub Nut Hex	203780 Hub Nut Hex	-	2	Enquire
15	257423	LH REAR DISC SHIELD	257423 LH REAR DISC SHIELD	-	1	Enquire
15	257424	RH REAR DISC SHIELD	257424 RH REAR DISC SHIELD	-	1	Enquire
16	250657	SCREW M6 X 14	250657 SCREW M6 X 14	-	6	Enquire
17	104370	SCREW	104370 SCREW	-	2	Enquire

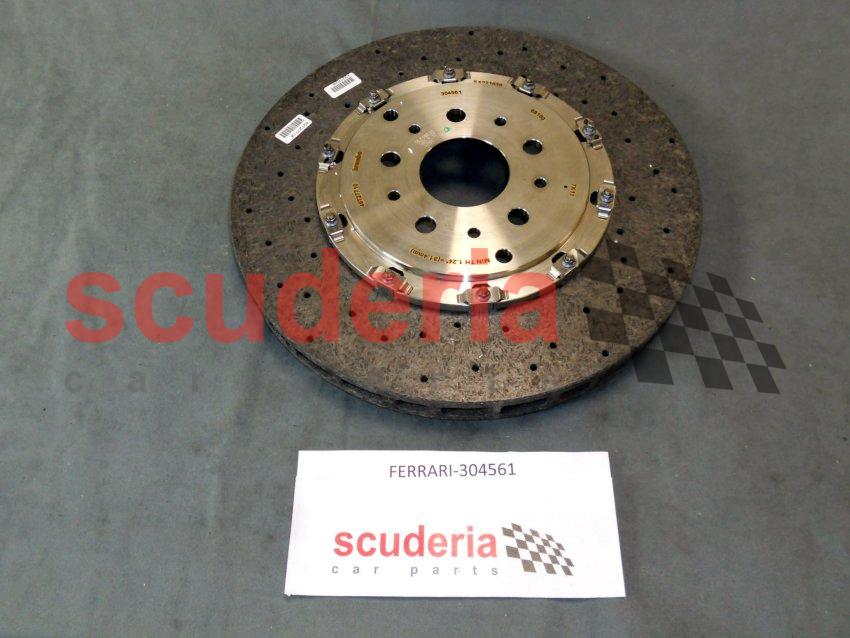

18	304561	Rear Brake Disc	304561 Rear Brake Disc	-	2	Enquire
19	228131	SCREW	228131 SCREW	-	2	Enquire
20	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
21	248790	SCREW M12 X 1.25 X 50	248790 SCREW M12 X 1.25 X 50	-	4	Enquire
22	220325	PLATE	220325 PLATE	-	6	Enquire
23	237590	SCREW	237590 SCREW	-	12	Enquire
24	274172	REAR STABILISER BAR	274172 REAR STABILISER BAR	-	1	Enquire
25	236242	Roll Bar Bush D21 x 36	236242 Roll Bar Bush D21 x 36	-	2	Enquire
26	244778	RETAINER BRACKET	244778 RETAINER BRACKET	-	2	Enquire
27	10791014	NUT	10791014 NUT	-	2	Enquire
28	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
29	12578321	NUT	12578321 NUT	-	4	Enquire
30	242392	BALL-JOINT TIE-ROD	242392 BALL-JOINT TIE-ROD	-	1	Enquire
30	242391	BALL-JOINT TIE-ROD	242391 BALL-JOINT TIE-ROD	-	1	Enquire
31	234671	UPPER CONNECTOR	234671 UPPER CONNECTOR Dual Mode Magneride; Special Handling Pack	-	2	Enquire
