Name: FUEL TANK
Rating: 5.0 (1 reviews)

View All

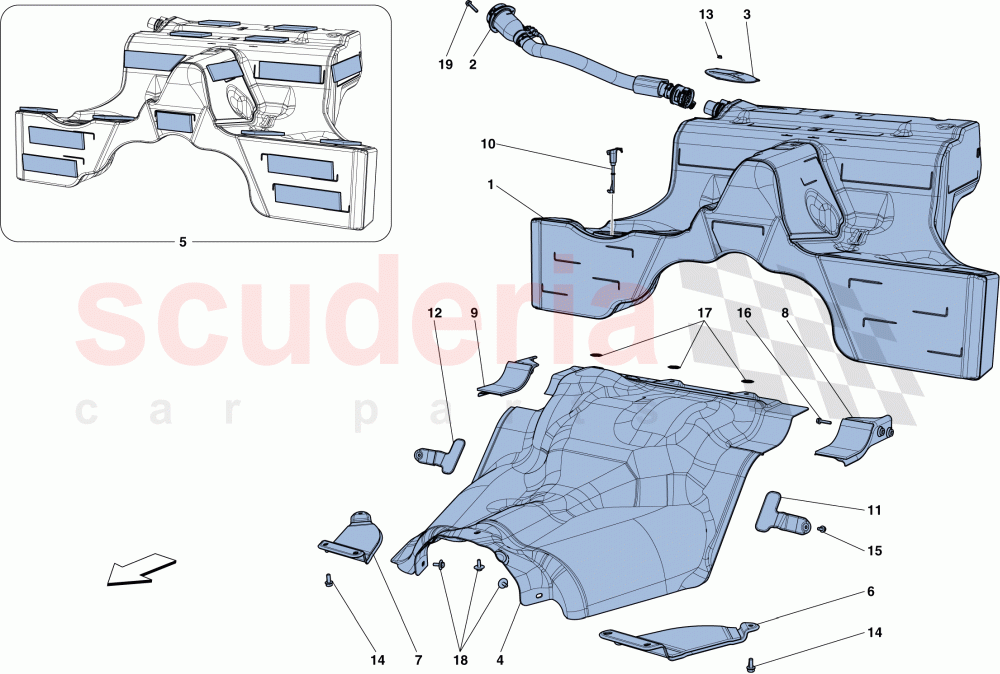

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	269702	FUEL TANK	$2,723.08	To Order

Photo	Part No	Description	Price (each)	Stock
	272714	COMPL. REAR INSPECTION COVER	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	296444	FUEL TANK HEAT INSULATION	$417.18	To Order

Photo	Part No	Description	Price (each)	Stock
	269715	FUEL TANK VIBRATION DAMPER KIT	$129.96	To Order

Photo	Part No	Description	Price (each)	Stock
	274023	LH FRONT TANK MOUNTING BRACKET	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	274025	RH FRONT TANK MOUNTING BRACKET	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	289799	LH REAR TANK MOUNTING BRACKET	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	289800	RH REAR TANK MOUNTING BRACKET	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	237598	COMPL. FLEXIBLE HOOK	$70.59	To Order

Photo	Part No	Description	Price (each)	Stock
	278569	LH TANK INSULATION BRACKET	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	278570	RH TANK INSULATION BRACKET	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	$2.79	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	16286324	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	791355	SCREW	$5.07	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	269702	FUEL TANK	269702 FUEL TANK Included with complete tank table 7 pos. 37; No longer supplied	$2,723.08	1
3	272714	COMPL. REAR INSPECTION COVER	272714 COMPL. REAR INSPECTION COVER	$27.26	1
4	296444	FUEL TANK HEAT INSULATION	296444 FUEL TANK HEAT INSULATION	$417.18	1
5	269715	FUEL TANK VIBRATION DAMPER KIT	269715 FUEL TANK VIBRATION DAMPER KIT Included with complete tank table 7 pos. 37	$129.96	1
6	274023	LH FRONT TANK MOUNTING BRACKET	274023 LH FRONT TANK MOUNTING BRACKET	$72.19	1
7	274025	RH FRONT TANK MOUNTING BRACKET	274025 RH FRONT TANK MOUNTING BRACKET	$72.19	1
8	289799	LH REAR TANK MOUNTING BRACKET	289799 LH REAR TANK MOUNTING BRACKET	$78.61	1
9	289800	RH REAR TANK MOUNTING BRACKET	289800 RH REAR TANK MOUNTING BRACKET	$78.61	1
10	237598	COMPL. FLEXIBLE HOOK	237598 COMPL. FLEXIBLE HOOK Included with complete tank table 7 pos. 37	$70.59	1
11	278569	LH TANK INSULATION BRACKET	278569 LH TANK INSULATION BRACKET	$30.47	1
12	278570	RH TANK INSULATION BRACKET	278570 RH TANK INSULATION BRACKET	$30.47	1
13	13046011	NUT	13046011 NUT	$0.39	3
14	13839224	SCREW	13839224 SCREW	$2.79	6
15	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	$0.47	2
16	16286324	SCREW	16286324 SCREW	$0.65	4
17	67315400	WASHER	67315400 WASHER	$0.44	3
18	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26	$6.18	3
19	791355	SCREW	791355 SCREW	$5.07	3
