Name: WHEELS
Rating: 5.0 (1 reviews)

View All

Ferrari California T - WHEELS

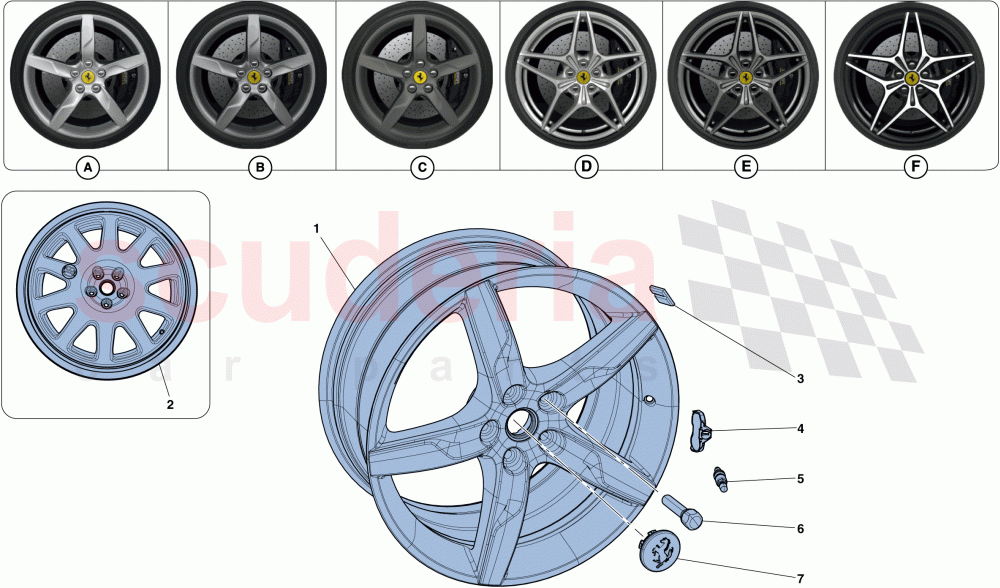

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	303335	REAR WHEEL	$4,599.77	To Order
	291379	REAR WHEEL	$4,110.58	To Order
	303334	REAR WHEEL	$4,369.24	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	240241	SPARE WHEEL RIM	$3,410.95	To Order

Photo	Part No	Description	Price (each)	Stock
	251393	COUNTERWEIGHT	$13.31	To Order
	251393	COUNTERWEIGHT	$13.31	To Order
	212174	COUNTERWEIGHT	$4.17	To Order

Photo	Part No	Description	Price (each)	Stock
	282189	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	$177.93	ARRIVING SOON
	314821	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	$185.26	To Order

Photo	Part No	Description	Price (each)	Stock
	185328	Valve - Tyre Pressure Monitoring System	$21.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	70006039	WHEEL STUD BOLT KIT	$545.55	ARRIVING SOON
	55031812	WHEEL STUD BOLT	$39.09	To Order

Photo	Part No	Description	Price (each)	Stock
	281089	HUB CAP	$216.99	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	303335	REAR WHEEL	303335 REAR WHEEL 10J X 20"; Forged, diamond cut; Modis code RSFD; See box F	$4,599.77	2
1	291379	REAR WHEEL	291379 REAR WHEEL 10J X 20"; Forged; Modis code RMSV; See box D	$4,110.58 MSRP: ~~5,269.81~~ (22% off)	2
1	303334	REAR WHEEL	303334 REAR WHEEL 10J X 20"; Forged dark grey; Modis code RIFS; See box E	$4,369.24	2
1	303333	FRONT WHEEL	303333 FRONT WHEEL 8J X 20"; Forged, diamond cut; Modis code RSFD; See box F	$3,975.21	2
1	291342	REAR WHEEL	291342 REAR WHEEL 10J X 19"; Cast and painted (standard); Modis code STANDARD; See box A	$1,233.03	2
1	309029	REAR WHEEL	309029 REAR WHEEL 10J X 19"; Cast chrome RICS; Modis code; See box B	$1,489.02	2
1	303310	REAR WHEEL	303310 REAR WHEEL 10J X 19"; Cast matte Corsa grey; Modis code RMSC; See box C	$1,549.33	2
1	301961	FRONT WHEEL	301961 FRONT WHEEL 8J X 20"; Forged; Modis code RMSV; See box D	$3,567.77 MSRP: ~~4,571.66~~ (22% off)	2
1	303332	FRONT WHEEL	303332 FRONT WHEEL 8J X 20"; Forged dark grey; Modis code RIFS; See box E	$3,771.49	2
1	301960	FRONT WHEEL	301960 FRONT WHEEL 8J X 19"; Cast and painted (standard); Modis code STANDARD; See box A	$1,166.01	2
1	309028	FRONT WHEEL	309028 FRONT WHEEL 8J X 19"; Cast chrome; Modis code RICS; See box B	$1,420.67	2
1	303305	FRONT WHEEL	303305 FRONT WHEEL 8J X 19"; Cast matte Corsa grey; Modis code RMSC; See box C	$1,480.98	2
2	240241	SPARE WHEEL RIM	240241 SPARE WHEEL RIM	$3,410.95	1
3	251393	COUNTERWEIGHT	251393 COUNTERWEIGHT 10 g	$13.31	-
3	251393	COUNTERWEIGHT	251393 COUNTERWEIGHT 4 X 5 g + 4 X 2.5 g	$13.31	-
3	212174	COUNTERWEIGHT	212174 COUNTERWEIGHT 5 g	$4.17	-
4	282189	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR ARRIVING SOON	282189 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Not for J ARRIVING SOON	$177.93 MSRP: ~~201.31~~ (11.6% off)	4
4	314821	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	314821 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Applicable for J	$185.26	4
5	185328	Valve - Tyre Pressure Monitoring System IN STOCK	185328 Valve - Tyre Pressure Monitoring System IN STOCK	$21.07 MSRP: ~~23.07~~ (8.7% off)	4
6	70006039	WHEEL STUD BOLT KIT ARRIVING SOON	70006039 WHEEL STUD BOLT KIT ARRIVING SOON	$545.55	1
6	55031812	WHEEL STUD BOLT	55031812 WHEEL STUD BOLT After depletion, order Kit P/N 70006039 and replace all stud bolts; Applicable until depletion	$39.09	20
7	281089	HUB CAP	281089 HUB CAP Carbon	$216.99	4
