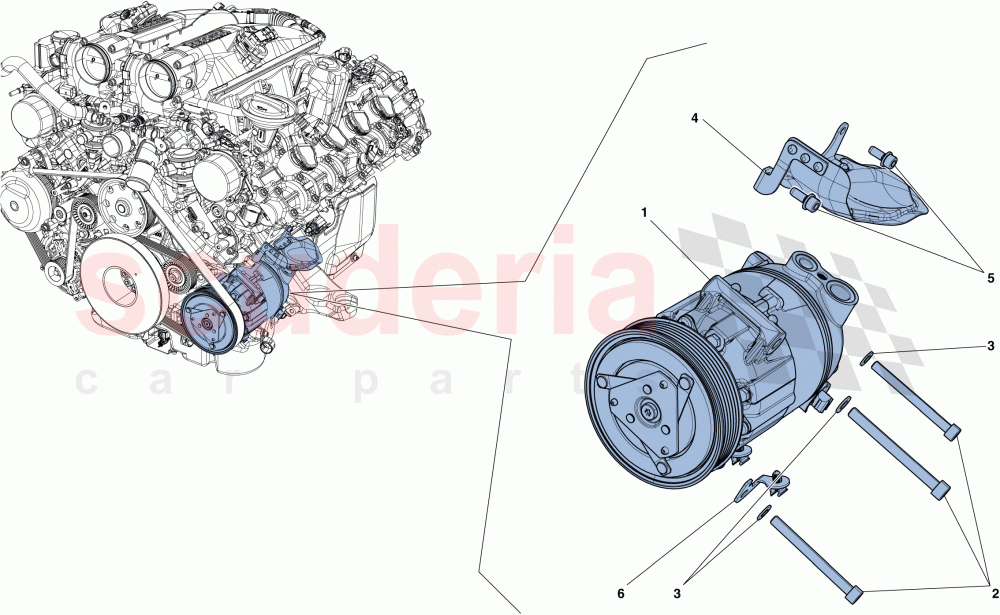

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	287343	AIR CONDITIONING COMPRESSOR	Enquire	To Order
	802715	AC SYSTEM COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298606	COMPRESSOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299159	BRACKET COMPL. WITH CLIP	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	287343	AIR CONDITIONING COMPRESSOR	287343 AIR CONDITIONING COMPRESSOR Applicable up to Ass. No. 138138	-	1	Enquire
1	802715	AC SYSTEM COMPRESSOR	802715 AC SYSTEM COMPRESSOR Applicable from Ass. No. 138139	-	1	Enquire
2	14307224	SCREW	14307224 SCREW	-	3	Enquire
3	11193874	WASHER	11193874 WASHER	-	3	Enquire
4	298606	COMPRESSOR HEAT SHIELD	298606 COMPRESSOR HEAT SHIELD	-	1	Enquire
5	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	2	Enquire
6	299159	BRACKET COMPL. WITH CLIP	299159 BRACKET COMPL. WITH CLIP	-	1	Enquire
