TURBOCHARGING SYSTEM ADJUSTMENTS of Ferrari Ferrari California T

View All

Ferrari California T - TURBOCHARGING SYSTEM ADJUSTMENTS

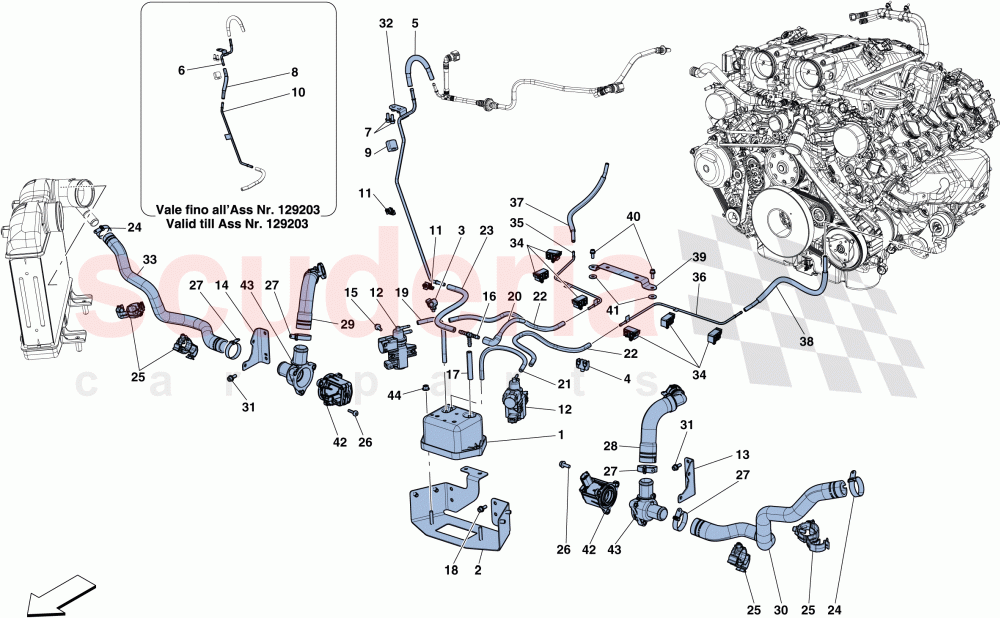

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	306401	VACUUM ACCUMULATOR TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	323324	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263230	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198259	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303639	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303642	RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303640	PIPE COMPL. WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278889	RUBBER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303289	PIPE BETWEEN PRESSURE REDUCERS AND TANKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303873	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287732	MODULATOR SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320325	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320326	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305769	T UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300548	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	115147	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294268	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169456	R.H. PIPE VALVE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308860	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299144	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270085	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320331	PIPE FROM DUMP VALVE TO LH INTAKE PIPE	Enquire	To Order
	320335	PIPE FROM DUMP VALVE TO LH INTAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320332	PIPE FROM DUMP VALVE TO RH INTAKE PIPE	Enquire	To Order
	320336	PIPE FROM DUMP VALVE TO RH INTAKE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320337	PIPE FROM INTERCOOLER TO LH DUMP VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318000	RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320334	PIPE FROM INTERCOOLER TO RH DUMP VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312163	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300307	RH WASTEGATE REGULATOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300309	LH WASTEGATE REGULATOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304422	PIPE COMPL. WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304423	PIPE COMPL. WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302172	RIGID PIPE SHIELD BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315495	DUMP-VALVE	Enquire	To Order
	306403	KAYSER DUMP VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	982210	DUMP VALVE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	306401	VACUUM ACCUMULATOR TANK	306401 VACUUM ACCUMULATOR TANK Applicable from Ass. No. 129879	-	1	Enquire
2	323324	BRACKET	323324 BRACKET Applicable from Ass. No. 129879	-	1	Enquire
3	263230	CLIP	263230 CLIP Applicable from Ass. No. 129879	-	1	Enquire
4	198259	CLIP	198259 CLIP Applicable from Ass. No. 129879	-	1	Enquire
5	303639	RUBBER PIPE	303639 RUBBER PIPE Applicable from Ass. No. 129879	-	1	Enquire
6	303642	RIGID PIPE	303642 RIGID PIPE Applicable up to Ass. No. 129203	-	1	Enquire
7	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16; Applicable from Ass. No. 129879	-	2	Enquire
8	303640	PIPE COMPL. WITH SHEATH	303640 PIPE COMPL. WITH SHEATH Applicable up to Ass. No. 129203	-	1	Enquire
9	278889	RUBBER RING	278889 RUBBER RING Applicable from Ass. No. 129879; No longer supplied	-	1	Enquire
10	303289	PIPE BETWEEN PRESSURE REDUCERS AND TANKS	303289 PIPE BETWEEN PRESSURE REDUCERS AND TANKS Applicable up to Ass. No. 129203	-	1	Enquire
11	303873	CLIP	303873 CLIP Applicable from Ass. No. 129879	-	2	Enquire
12	287732	MODULATOR SOLENOID VALVE	287732 MODULATOR SOLENOID VALVE Applicable from Ass. No. 129879	-	2	Enquire
13	320325	LH BRACKET	320325 LH BRACKET Applicable from Ass. No. 129879	-	1	Enquire
14	320326	RH BRACKET	320326 RH BRACKET Applicable from Ass. No. 129879	-	1	Enquire
15	85833700	SCREW	85833700 SCREW M5 X 16; Applicable from Ass. No. 129879	-	4	Enquire
16	305769	T UNION	305769 T UNION Applicable from Ass. No. 129879	-	1	Enquire
17	300548	RUBBER PIPE	300548 RUBBER PIPE Applicable from Ass. No. 129879	-	1	Enquire
18	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16; Applicable from Ass. No. 129879	-	4	Enquire
19	115147	RUBBER PIPE	115147 RUBBER PIPE Applicable from Ass. No. 129879	-	1	Enquire
20	294268	RUBBER PIPE	294268 RUBBER PIPE Applicable from Ass. No. 129879	-	1	Enquire
21	169456	R.H. PIPE VALVE TUBE	169456 R.H. PIPE VALVE TUBE Applicable from Ass. No. 129879	-	1	Enquire
22	308860	RUBBER PIPE	308860 RUBBER PIPE Applicable from Ass. No. 129879	-	2	Enquire
23	299144	RUBBER PIPE	299144 RUBBER PIPE Applicable from Ass. No. 129879	-	1	Enquire
24	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP Applicable from Ass. No. 129879	-	2	Enquire
25	270085	CLIP	270085 CLIP Applicable from Ass. No. 129879	-	4	Enquire
26	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	4	Enquire
27	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP Applicable from Ass. No. 129879	-	4	Enquire
28	320331	PIPE FROM DUMP VALVE TO LH INTAKE PIPE	320331 PIPE FROM DUMP VALVE TO LH INTAKE PIPE Not for USA, CDN, USA LIGHT; Applicable from Ass. No. 129879	-	1	Enquire
28	320335	PIPE FROM DUMP VALVE TO LH INTAKE PIPE	320335 PIPE FROM DUMP VALVE TO LH INTAKE PIPE Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 129879	-	1	Enquire
29	320332	PIPE FROM DUMP VALVE TO RH INTAKE PIPE	320332 PIPE FROM DUMP VALVE TO RH INTAKE PIPE Not for USA, CDN, USA LIGHT; Applicable from Ass. No. 129879	-	1	Enquire
29	320336	PIPE FROM DUMP VALVE TO RH INTAKE PIPE	320336 PIPE FROM DUMP VALVE TO RH INTAKE PIPE Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 129879	-	1	Enquire
30	320337	PIPE FROM INTERCOOLER TO LH DUMP VALVE	320337 PIPE FROM INTERCOOLER TO LH DUMP VALVE Applicable from Ass. No. 129879	-	1	Enquire
31	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16; Applicable from Ass. No. 129879	-	4	Enquire
32	318000	RIGID PIPE	318000 RIGID PIPE Applicable from Ass. No. 129204	-	1	Enquire
33	320334	PIPE FROM INTERCOOLER TO RH DUMP VALVE	320334 PIPE FROM INTERCOOLER TO RH DUMP VALVE Applicable from Ass. No. 129879	-	1	Enquire
34	312163	CLIP	312163 CLIP Applicable from Ass. No. 129879	-	6	Enquire
35	300307	RH WASTEGATE REGULATOR PIPE	300307 RH WASTEGATE REGULATOR PIPE Applicable from Ass. No. 129879	-	1	Enquire
36	300309	LH WASTEGATE REGULATOR PIPE	300309 LH WASTEGATE REGULATOR PIPE Applicable from Ass. No. 129879	-	1	Enquire
37	304422	PIPE COMPL. WITH SHEATH	304422 PIPE COMPL. WITH SHEATH Applicable from Ass. No. 129879	-	1	Enquire
38	304423	PIPE COMPL. WITH SHEATH	304423 PIPE COMPL. WITH SHEATH Applicable from Ass. No. 129879	-	1	Enquire
39	302172	RIGID PIPE SHIELD BRACKET	302172 RIGID PIPE SHIELD BRACKET Applicable from Ass. No. 129879	-	1	Enquire
40	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16; Applicable from Ass. No. 129879	-	2	Enquire
41	860172	WASHER	860172 WASHER Applicable from Ass. No. 129879	-	2	Enquire
42	315495	DUMP-VALVE	315495 DUMP-VALVE Applicable from Ass. No. 129879	-	2	Enquire
42	306403	KAYSER DUMP VALVE	306403 KAYSER DUMP VALVE Applicable for CINA, USA, CDN, GOLFO, USA LIGHT; Applicable from Ass. No. 129879	-	2	Enquire
43	982210	DUMP VALVE BASE	982210 DUMP VALVE BASE Applicable from Ass. No. 129879	-	2	Enquire
44	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable from Ass. No. 129879	-	2	Enquire
