Name: REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC
Rating: 5.0 (1 reviews)

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 812 Superfast/GTS

View All

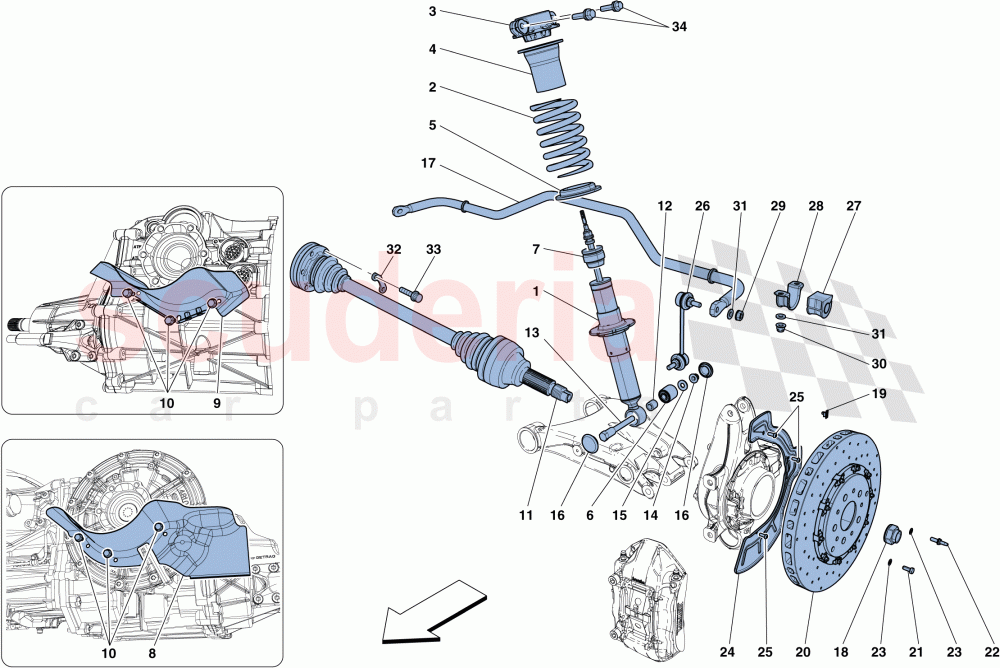

Ferrari 812 Superfast/GTS - REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	335659	REAR SHOCK ABSORBER	$1,651.12	To Order

Photo	Part No	Description	Price (each)	Stock
	332990	REAR SUSPENSION SPRING	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	274308	STOP CAP	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	212517	UPPER SPACER	$11.86	To Order

Photo	Part No	Description	Price (each)	Stock
	211236	LOWER SPRING SPACER	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	157630	SHOCK ABSORBER BUSH	$118.72	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	281221	ENDSTOP BUSH, SHOCK ABSORBER	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	259461	RH AXLE SHAFT HEAT SHIELD	$143.33	To Order

Photo	Part No	Description	Price (each)	Stock
	248707	LH AXLE SHAFT HEAT SHIELD	$75.40	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	744019	AXLE SHAFT	$1,476.21	To Order

Photo	Part No	Description	Price (each)	Stock
	237821	BUSH	$4.86	To Order

Photo	Part No	Description	Price (each)	Stock
	246962	SPECIAL SCREW	$31.36	To Order

Photo	Part No	Description	Price (each)	Stock
	255271	NUT	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	14507987	PLUG	$1.83	To Order

Photo	Part No	Description	Price (each)	Stock
	262790	STABILISER BAR	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	203780	HUB NUT HEX M28	$24.62	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	315458	REAR BRAKE DISC	$5,077.53	To Order

Photo	Part No	Description	Price (each)	Stock
	228131	SCREW	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	104370	SCREW	$10.11	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	257423	LH REAR DISC SHIELD	$62.56	To Order
	257424	RH REAR DISC SHIELD	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW	$7.60	To Order

Photo	Part No	Description	Price (each)	Stock
	242392	BALL-JOINT TIE-ROD	$123.54	To Order
	242391	BALL-JOINT TIE-ROD	$123.54	To Order

Photo	Part No	Description	Price (each)	Stock
	236242	Roll Bar Bush D21 x 36	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	244778	RETAINER BRACKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	12578321	NUT	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	To Order

Photo	Part No	Description	Price (each)	Stock
	220325	PLATE	$4.04	To Order

Photo	Part No	Description	Price (each)	Stock
	237590	SCREW M10 X 1.25 X 50	$4.86	To Order

Photo	Part No	Description	Price (each)	Stock
	248790	SCREW	$4.04	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	335659	REAR SHOCK ABSORBER	335659 REAR SHOCK ABSORBER	$1,651.12	2
2	332990	REAR SUSPENSION SPRING	332990 REAR SUSPENSION SPRING	$186.33	2
3	274308	STOP CAP	274308 STOP CAP	$256.72	2
4	212517	UPPER SPACER	212517 UPPER SPACER	$11.86	2
5	211236	LOWER SPRING SPACER	211236 LOWER SPRING SPACER	$32.08	2
6	157630	SHOCK ABSORBER BUSH ARRIVING SOON	157630 SHOCK ABSORBER BUSH ARRIVING SOON	$118.72 MSRP: ~~152.24~~ (22% off)	2
7	281221	ENDSTOP BUSH, SHOCK ABSORBER	281221 ENDSTOP BUSH, SHOCK ABSORBER	$40.10	2
8	259461	RH AXLE SHAFT HEAT SHIELD	259461 RH AXLE SHAFT HEAT SHIELD	$143.33	1
9	248707	LH AXLE SHAFT HEAT SHIELD	248707 LH AXLE SHAFT HEAT SHIELD	$75.40	1
10	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	$0.47	6
11	744019	AXLE SHAFT	744019 AXLE SHAFT	$1,476.21	2
12	237821	BUSH	237821 BUSH	$4.86 MSRP: ~~5.50~~ (11.6% off)	2
13	246962	SPECIAL SCREW	246962 SPECIAL SCREW	$31.36	2
14	255271	NUT	255271 NUT	$1.41 MSRP: ~~1.45~~ (2.8% off)	2
15	12646921	WASHER	12646921 WASHER	$0.53	2
16	14507987	PLUG	14507987 PLUG	$1.83 MSRP: ~~2.45~~ (25.3% off)	6
17	262790	STABILISER BAR	262790 STABILISER BAR	$433.23	1
18	203780	HUB NUT HEX M28	203780 HUB NUT HEX M28	$24.62 MSRP: ~~25.80~~ (4.6% off)	2
19	303385	CLIP	303385 CLIP	$0.31	2
20	315458	REAR BRAKE DISC	315458 REAR BRAKE DISC	$5,077.53	2
21	228131	SCREW	228131 SCREW M8 X 20	$0.83	2
22	104370	SCREW	104370 SCREW	$10.11	2
23	228132	SPRING WASHER	228132 SPRING WASHER	$0.32	4
24	257423	LH REAR DISC SHIELD	257423 LH REAR DISC SHIELD	$62.56 MSRP: ~~82.42~~ (24.1% off)	1
24	257424	RH REAR DISC SHIELD	257424 RH REAR DISC SHIELD	$62.56	1
25	250657	SCREW	250657 SCREW M6 X 14	$7.60	6
26	242392	BALL-JOINT TIE-ROD	242392 BALL-JOINT TIE-ROD LH rear	$123.54	1
26	242391	BALL-JOINT TIE-ROD	242391 BALL-JOINT TIE-ROD RH rear	$123.54	1
27	236242	Roll Bar Bush D21 x 36	236242 Roll Bar Bush D21 x 36	$32.08	2
28	244778	RETAINER BRACKET	244778 RETAINER BRACKET	$24.05	2
29	10791014	NUT	10791014 NUT	$0.29	2
30	12578321	NUT	12578321 NUT	$0.65	2
31	12601474	WASHER	12601474 WASHER	$0.03	4
32	220325	PLATE	220325 PLATE	$4.04	6
33	237590	SCREW M10 X 1.25 X 50	237590 SCREW M10 X 1.25 X 50	$4.86 MSRP: ~~4.99~~ (2.6% off)	12
34	248790	SCREW	248790 SCREW M12 X 1.25 X 50	$4.04	4
