Front Suspension - Shock Absorber And Brake Disc

Ferrari 812 Superfast/GTS

Find Your Part

Ferrari 812 Superfast/GTS - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
321240 FRONT SHOCK ABSORBER Enquire To Order
336094 FRONT SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
332989 FRONT SUSPENSION SPRING Enquire To Order
332988 FRONT SUSPENSION SPRING Enquire To Order
Photo Part No Description Price (each) Stock
250394 STOP CAP Enquire To Order
Photo Part No Description Price (each) Stock
212517 UPPER SPACER Enquire IN STOCK
Photo Part No Description Price (each) Stock
188996 LOWER SPACER Enquire IN STOCK
Photo Part No Description Price (each) Stock
157630 BALL JOINT Enquire IN STOCK
Photo Part No Description Price (each) Stock
288828 ENDSTOP BUSH Enquire IN STOCK
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM Enquire IN STOCK
Photo Part No Description Price (each) Stock
300214 ACTUATOR Enquire IN STOCK
Photo Part No Description Price (each) Stock
277168 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
261587 HOSE Enquire IN STOCK
Photo Part No Description Price (each) Stock
259638 GASKET 8.7 - 14 Enquire IN STOCK
Photo Part No Description Price (each) Stock
237297 SCREW M12 X 1.25 X 8 Enquire IN STOCK
Photo Part No Description Price (each) Stock
237821 BUSH Enquire IN STOCK
Photo Part No Description Price (each) Stock
255271 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
12646921 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
321910 FRONT BRAKE DISC Enquire IN STOCK
Photo Part No Description Price (each) Stock
321235 FRONT LH DISC SHIELD Enquire IN STOCK
321236 FRONT RH DISC SHIELD Enquire IN STOCK
Photo Part No Description Price (each) Stock
336477 LH FRONT BRAKE AIR DUCT Enquire To Order
336478 RH FRONT BRAKE AIR DUCT Enquire To Order
Photo Part No Description Price (each) Stock
228132 SPRING WASHER Enquire To Order
Photo Part No Description Price (each) Stock
320715 BRACKET FASTENING DUCT TO RH LOWER ARM Enquire To Order
320714 BRACKET FASTENING DUCT TO LH LOWER ARM Enquire To Order
Photo Part No Description Price (each) Stock
231624 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
11193274 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
322888 COMPL. LH AIR DEFLECTOR Enquire To Order
322889 COMPL. RH AIR DEFLECTOR Enquire To Order
Photo Part No Description Price (each) Stock
203780 Hub Nut Hex Enquire To Order
Photo Part No Description Price (each) Stock
288829 STOP CAP Enquire To Order
Photo Part No Description Price (each) Stock
291864 ABS CABLE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
261214 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
321262 STABILISER BAR Enquire To Order
Photo Part No Description Price (each) Stock
10791014 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire IN STOCK
Photo Part No Description Price (each) Stock
328463 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire IN STOCK
Photo Part No Description Price (each) Stock
242392 BALL-JOINT TIE-ROD Enquire IN STOCK
242391 BALL-JOINT TIE-ROD Enquire IN STOCK
Photo Part No Description Price (each) Stock
242404 BUSH FOR BAR Enquire To Order
Photo Part No Description Price (each) Stock
244778 RETAINER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
286144 BUSHING MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
248790 SCREW M12 X 1.25 X 50 Enquire To Order
Photo Part No Description Price (each) Stock
250657 SCREW M6 X 14 Enquire IN STOCK
Photo Part No Description Price (each) Stock
104370 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
228131 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
327874 TORSION BAR FASTENER BRACKET Enquire To Order
View All

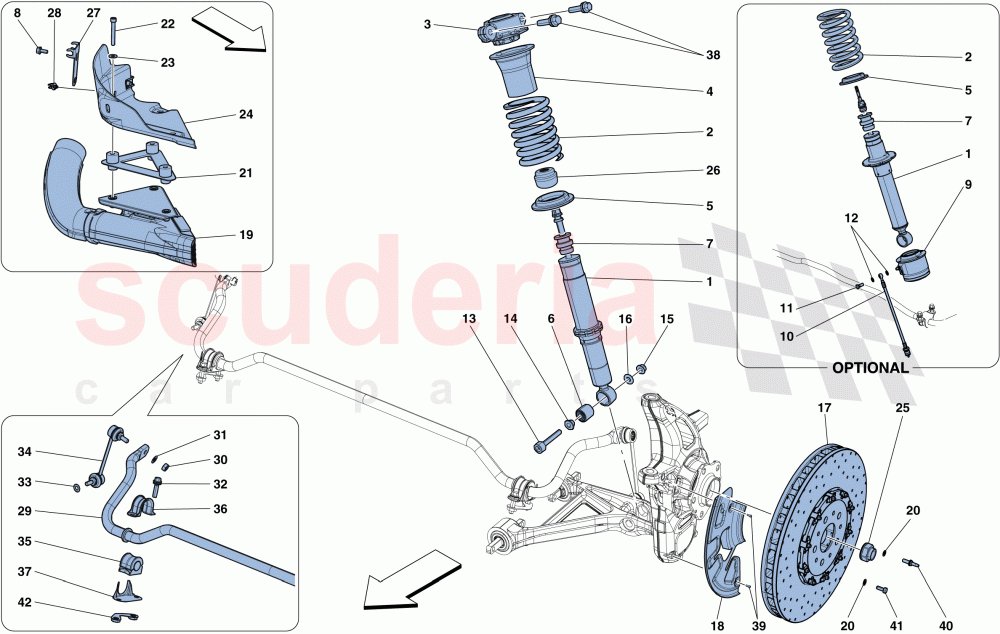

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 812 Superfast/GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 321240
FRONT SHOCK ABSORBER 		- 2 Enquire
1 336094
FRONT SHOCK ABSORBER
Version with lifter 		- 2 Enquire
2 332989
FRONT SUSPENSION SPRING
Version with lifter 		- 2 Enquire
2 332988
FRONT SUSPENSION SPRING 		- 2 Enquire
3 250394
STOP CAP 		- 2 Enquire
4 212517
UPPER SPACER
IN STOCK 		- 2 Enquire
5 188996
LOWER SPACER
IN STOCK 		- 2 Enquire
6 157630
BALL JOINT
IN STOCK 		- 2 Enquire
7 288828
ENDSTOP BUSH
IN STOCK 		- 2 Enquire
8 16296934
SCREW 6 X 14MM
M6 X 14
IN STOCK 		- 2 Enquire
9 300214
ACTUATOR
Version with lifter
IN STOCK 		- 1 Enquire
10 277168
HOSE
Version with lifter 		- 2 Enquire
11 261587
HOSE
Version with lifter
IN STOCK 		- 2 Enquire
12 259638
GASKET 8.7 - 14
Version with lifter
IN STOCK 		- 4 Enquire
13 237297
SCREW M12 X 1.25 X 8
M12 X 1.25 X 80
IN STOCK 		- 2 Enquire
14 237821
BUSH
IN STOCK 		- 2 Enquire
15 255271
NUT
IN STOCK 		- 2 Enquire
16 12646921
WASHER
IN STOCK 		- 2 Enquire
17 321910
FRONT BRAKE DISC
IN STOCK 		- 2 Enquire
18 321235
FRONT LH DISC SHIELD
IN STOCK 		- 1 Enquire
18 321236
FRONT RH DISC SHIELD
IN STOCK 		- 1 Enquire
19 336477
LH FRONT BRAKE AIR DUCT 		- 1 Enquire
19 336478
RH FRONT BRAKE AIR DUCT 		- 1 Enquire
20 228132
SPRING WASHER 		- 4 Enquire
21 320715
BRACKET FASTENING DUCT TO RH LOWER ARM 		- 1 Enquire
21 320714
BRACKET FASTENING DUCT TO LH LOWER ARM 		- 1 Enquire
22 231624
SCREW
M6 X 45
IN STOCK 		- 6 Enquire
23 11193274
WASHER
IN STOCK 		- 6 Enquire
24 322888
COMPL. LH AIR DEFLECTOR 		- 1 Enquire
24 322889
COMPL. RH AIR DEFLECTOR 		- 1 Enquire
25 203780
Hub Nut Hex 		- 2 Enquire
26 288829
STOP CAP 		- 1 Enquire
27 291864
ABS CABLE MOUNTING BRACKET 		- 1 Enquire
28 261214
CLIP 		- 2 Enquire
29 321262
STABILISER BAR 		- 1 Enquire
30 10791014
NUT 		- 2 Enquire
31 12601474
WAVY WASHER 10MM
IN STOCK 		- 2 Enquire
32 328463
SCREW
M10 X 1.25 X 30 		- 4 Enquire
33 12601474
WAVY WASHER 10MM
IN STOCK 		- 2 Enquire
34 242392
BALL-JOINT TIE-ROD
RH front
IN STOCK 		- 1 Enquire
34 242391
BALL-JOINT TIE-ROD
LH front
IN STOCK 		- 1 Enquire
35 242404
BUSH FOR BAR 		- 2 Enquire
36 244778
RETAINER BRACKET 		- 2 Enquire
37 286144
BUSHING MOUNT 		- 2 Enquire
38 248790
SCREW M12 X 1.25 X 50
M12 X 1.25 X 50 		- 4 Enquire
39 250657
SCREW M6 X 14
M6 X 14
IN STOCK 		- 4 Enquire
40 104370
SCREW
IN STOCK 		- 2 Enquire
41 228131
SCREW
M8 X 20
IN STOCK 		- 2 Enquire
42 327874
TORSION BAR FASTENER BRACKET 		- 2 Enquire
