COOLING - HEADER TANK AND PIPES of Ferrari Ferrari 812 Superfast/GTS

View All

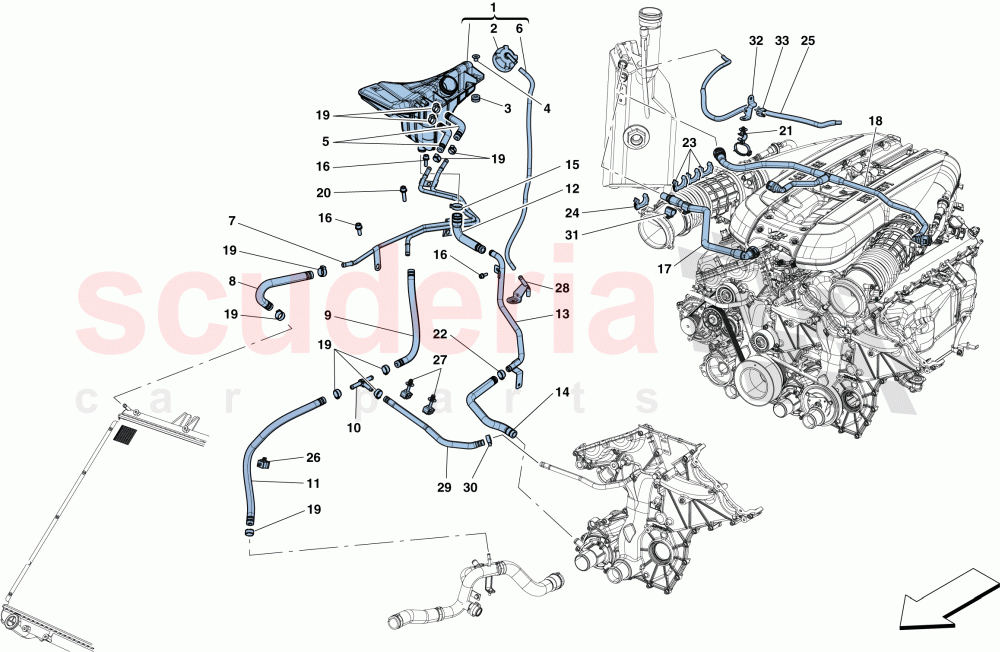

Ferrari 812 Superfast/GTS - COOLING - HEADER TANK AND PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	329418	COMPL. EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329417	CAP WITH BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288386	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280418	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324412	COMPL. BREATHER PIPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288387	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288385	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281899	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340329	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282575	PIPE FROM RESERVOIR TO DISCONNECTOR UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289021	RESERVOIR OUTLET RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289020	PIPE FROM DISCONNECTOR TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333856	VAPOUR PIPE FROM HEADS	Enquire	To Order
	330640	VAPOUR PIPE FROM HEADS	Enquire	To Order
	330640	VAPOUR PIPE FROM HEADS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	330633	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	Enquire	To Order
	333857	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	Enquire	To Order
	333857	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339342	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140728	CLIP	Enquire	To Order
	140728	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145543	CLIP	Enquire	To Order
	145543	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336898	RUBBER PIPE	Enquire	To Order
	336898	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257273	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339343	CLIP	Enquire	To Order
	339343	CLIP	Enquire	To Order
	198253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	764686	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342162	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338263	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339842	BLOW-BY PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14574287	CLIP	Enquire	To Order
	14574287	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	329418	COMPL. EXPANSION TANK	329418 COMPL. EXPANSION TANK	-	1	Enquire
2	329417	CAP WITH BREATHER	329417 CAP WITH BREATHER	-	1	Enquire
3	812273	CABLE GROMMET	812273 CABLE GROMMET	-	1	Enquire
4	149707	SPACER	149707 SPACER	-	1	Enquire
5	288386	RUBBER PIPE	288386 RUBBER PIPE D. 7-14 X 107	-	2	Enquire
6	280418	RUBBER PIPE	280418 RUBBER PIPE D. 7 X 1.5 X 825	-	1	Enquire
7	324412	COMPL. BREATHER PIPING	324412 COMPL. BREATHER PIPING	-	1	Enquire
8	288387	RUBBER PIPE	288387 RUBBER PIPE	-	1	Enquire
9	288385	RUBBER PIPE	288385 RUBBER PIPE D. 7-14 X 235	-	1	Enquire
10	281899	3-WAY CONNECTOR	281899 3-WAY CONNECTOR	-	1	Enquire
11	340329	RUBBER PIPE	340329 RUBBER PIPE D. 7-14	-	1	Enquire
12	282575	PIPE FROM RESERVOIR TO DISCONNECTOR UNION	282575 PIPE FROM RESERVOIR TO DISCONNECTOR UNION	-	1	Enquire
13	289021	RESERVOIR OUTLET RIGID PIPE	289021 RESERVOIR OUTLET RIGID PIPE	-	1	Enquire
14	289020	PIPE FROM DISCONNECTOR TO PUMP	289020 PIPE FROM DISCONNECTOR TO PUMP	-	1	Enquire
15	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
16	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	5	Enquire
17	333856	VAPOUR PIPE FROM HEADS	333856 VAPOUR PIPE FROM HEADS Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775	-	1	Enquire
17	330640	VAPOUR PIPE FROM HEADS	330640 VAPOUR PIPE FROM HEADS Applicable for EU GS, AUS, UK; Applicable from Ass. No. 152776	-	1	Enquire
17	330640	VAPOUR PIPE FROM HEADS	330640 VAPOUR PIPE FROM HEADS Applicable for USA, CDN, USA LIGHT	-	1	Enquire
17	333856	VAPOUR PIPE FROM HEADS	333856 VAPOUR PIPE FROM HEADS Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
18	330633	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	330633 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD Applicable for USA, CDN, USA LIGHT	-	1	Enquire
18	333857	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	333857 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
18	333857	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	333857 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775	-	1	Enquire
18	330633	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	330633 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD Applicable for EU GS, AUS, UK; Applicable from Ass. No. 152776	-	1	Enquire
19	13126970	COLLAR	13126970 COLLAR	-	11	Enquire
20	231620	SCREW	231620 SCREW M6 X 25	-	1	Enquire
21	339342	CLIP	339342 CLIP	-	1	Enquire
22	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
23	140728	CLIP	140728 CLIP Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	3	Enquire
23	140728	CLIP	140728 CLIP Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775	-	3	Enquire
24	145543	CLIP	145543 CLIP Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
24	145543	CLIP	145543 CLIP Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775	-	1	Enquire
25	336898	RUBBER PIPE	336898 RUBBER PIPE Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775	-	1	Enquire
25	336898	RUBBER PIPE	336898 RUBBER PIPE Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
26	257273	CLIP	257273 CLIP	-	1	Enquire
27	339343	CLIP	339343 CLIP Applicable from engine No. 345076	-	1	Enquire
27	339343	CLIP	339343 CLIP	-	1	Enquire
27	198253	CLIP	198253 CLIP 1 compartment; Applicable up to engine No. 345075	-	1	Enquire
28	764686	BRACKET	764686 BRACKET	-	1	Enquire
29	342162	PIPE	342162 PIPE	-	1	Enquire
30	13127070	COLLAR	13127070 COLLAR	-	1	Enquire
31	338263	CLIP	338263 CLIP	-	1	Enquire
32	339842	BLOW-BY PIPE FASTENER BRACKET	339842 BLOW-BY PIPE FASTENER BRACKET	-	1	Enquire
33	14574287	CLIP	14574287 CLIP Not for EU GS, AUS, USA, CDN, UK, USA LIGHT	-	1	Enquire
33	14574287	CLIP	14574287 CLIP Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775	-	1	Enquire
