Ferrari 812 Superfast/GTS - BRAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
331000 HYDRAULIC UNIT $3,408.75 To Order
Photo Part No Description Price (each) Stock
324542 ECU MOUNTING BRACKET $100.33 To Order
333613 ECU MOUNTING BRACKET $96.26 To Order
Photo Part No Description Price (each) Stock
13604015 SPACER $0.83 To Order
Photo Part No Description Price (each) Stock
14054511 NUT $1.30 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12647724 WASHER $0.15 To Order
Photo Part No Description Price (each) Stock
324553 PIPE FROM ECU TO LH FRONT WHEEL $99.47 To Order
335561 PIPE FROM ECU TO LH FRONT WHEEL $54.46 To Order
Photo Part No Description Price (each) Stock
325032 PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET $54.46 To Order
324551 PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET $59.35 To Order
Photo Part No Description Price (each) Stock
324552 PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET $56.14 To Order
325033 PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET $55.89 To Order
Photo Part No Description Price (each) Stock
769871 PIPE FROM ECU TO RH FRONT WHEEL SECTION $101.75 To Order
324556 PIPE FROM ECU TO RH FRONT WHEEL SECTION $57.75 To Order
Photo Part No Description Price (each) Stock
769872 PIPE FROM ECU TO RH REAR WHEEL SECTION $107.49 To Order
324554 PIPE FROM ECU TO RH REAR WHEEL SECTION $59.35 To Order
Photo Part No Description Price (each) Stock
275449 PIPE FROM DISCONNECTOR TO RH FRONT WHEEL $44.91 To Order
287846 PIPE FROM DISCONNECTOR TO RH FRONT WHEEL $57.33 To Order
Photo Part No Description Price (each) Stock
314454 PIPE FROM ECU TO LH REAR WHEEL SECTION $55.89 To Order
324555 PIPE FROM ECU TO LH REAR WHEEL SECTION $123.54 To Order
Photo Part No Description Price (each) Stock
284624 PIPE FROM SECTION TO LH REAR WHEEL $75.95 To Order
Photo Part No Description Price (each) Stock
284627 PIPE FROM SECTION TO LH REAR WHEEL $74.52 To Order
Photo Part No Description Price (each) Stock
284622 CLIP $1.85 To Order
234286 CLIP $1.56 To Order
241118 CLIP $1.46 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
116374 CLIP $2.51 To Order
Photo Part No Description Price (each) Stock
262737 RUBBER RETAINER $6.56 To Order
Photo Part No Description Price (each) Stock
307688 YAW SENSOR $291.76 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
291250 CLIP $0.78 To Order
Photo Part No Description Price (each) Stock
291251 CLIP $0.78 To Order
Photo Part No Description Price (each) Stock
296332 BRAKE PIPE MOUNTING BRACKET $54.54 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
217156 RUBBER SHIM $0.79 To Order
View All

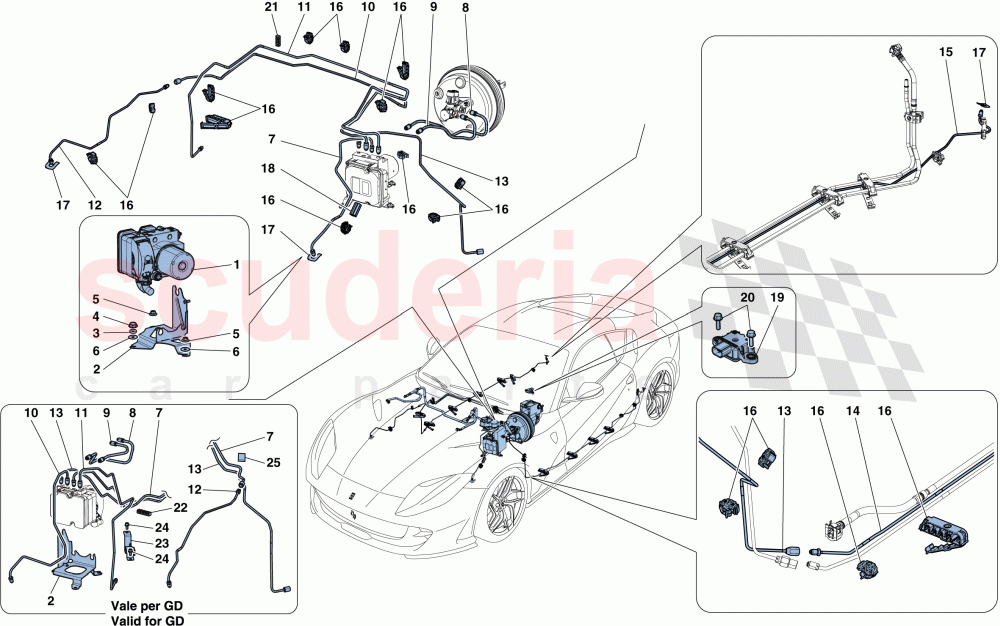

BRAKE SYSTEM of Ferrari Ferrari 812 Superfast/GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 331000
HYDRAULIC UNIT 		$3,408.75 1
2 324542
ECU MOUNTING BRACKET
Applicable for GD 		$100.33 1
2 333613
ECU MOUNTING BRACKET
Not for GD 		$96.26 1
3 13604015
SPACER 		$0.83 1
4 14054511
NUT 		$1.30 1
5 14059290
FLANGED NUT M6 		$1.51 2
6 12647724
WASHER 		$0.15 2
7 324553
PIPE FROM ECU TO LH FRONT WHEEL
Applicable for GD 		$99.47 1
7 335561
PIPE FROM ECU TO LH FRONT WHEEL
Not for GD 		$54.46 1
8 325032
PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET
Not for GD 		$54.46 1
8 324551
PIPE FROM MASTER CYLINDER TO UNIT PRIMARY INLET
Applicable for GD 		$59.35 1
9 324552
PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET
Applicable for GD 		$56.14 1
9 325033
PIPE FROM MASTER CYLINDER TO UNIT SECONDARY INLET
Not for GD 		$55.89 1
10 769871
PIPE FROM ECU TO RH FRONT WHEEL SECTION
Not for GD 		$101.75 1
10 324556
PIPE FROM ECU TO RH FRONT WHEEL SECTION
Applicable for GD 		$57.75 1
11 769872
PIPE FROM ECU TO RH REAR WHEEL SECTION
Not for GD 		$107.49 1
11 324554
PIPE FROM ECU TO RH REAR WHEEL SECTION
Applicable for GD 		$59.35 1
12 275449
PIPE FROM DISCONNECTOR TO RH FRONT WHEEL
Not for GD 		$44.91 1
12 287846
PIPE FROM DISCONNECTOR TO RH FRONT WHEEL
Applicable for GD 		$57.33 1
13 314454
PIPE FROM ECU TO LH REAR WHEEL SECTION
Not for GD 		$55.89 1
13 324555
PIPE FROM ECU TO LH REAR WHEEL SECTION
Applicable for GD 		$123.54 1
14 284624
PIPE FROM SECTION TO LH REAR WHEEL 		$75.95 1
15 284627
PIPE FROM SECTION TO LH REAR WHEEL 		$74.52 1
16 284622
CLIP
3 compartments 		$1.85 2
16 234286
CLIP
4 compartments 		$1.56 2
16 241118
CLIP
5 compartments 		$1.46 10
16 249782
CLIP 		$1.15 2
16 234284
CLIP
1 compartment 		$0.63 2
16 234285
CLIP
2 compartments 		$0.70 9
17 116374
CLIP 		$2.51 (28.3% off) 4
18 262737
RUBBER RETAINER 		$6.56 1
19 307688
YAW SENSOR 		$291.76 1
20 16286124
SCREW
M6 X 20 		$0.37 2
21 291250
CLIP 		$0.78 1
22 291251
CLIP
Applicable for GD 		$0.78 1
23 296332
BRAKE PIPE MOUNTING BRACKET
Applicable for GD 		$54.54 1
24 248334
SCREW
M6 X 14; Applicable for GD 		$0.68 2
25 217156
RUBBER SHIM
Applicable for GD 		$0.79 1
