FRONT SUSPENSION - ARMS

Find Your Part

Ferrari 812 Superfast/GTS - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
248758 LH Front Upper Arm $850.42 To Order
248760 RH Front Upper Arm $850.42 To Order
Photo Part No Description Price (each) Stock
264523 Lower LH Front Arm $1,407.15 To Order
268896 LH FRONT LOWER ARM $1,331.80 To Order
264524 Lower RH Front Arm $1,407.15 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
328039 COMPL. LH FRONT HUB CARRIER $2,560.92 To Order
328040 COMPL. RH FRONT HUB CARRIER $2,560.92 To Order
Photo Part No Description Price (each) Stock
259615 ABS SENSOR $218.81 To Order
Photo Part No Description Price (each) Stock
149807 NUT $1.18 To Order
Photo Part No Description Price (each) Stock
12646921 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
203795 NUT $2.58 To Order
Photo Part No Description Price (each) Stock
241689 WASHER $7.68 To Order
Photo Part No Description Price (each) Stock
343376 BALL JOINT $22.45 To Order
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.94 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.92 To Order
Photo Part No Description Price (each) Stock
12646821 WASHER D.10 20-25 X 2 $0.11 To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.91 To Order
Photo Part No Description Price (each) Stock
238882 ADJUSTMENT SHIM $5.59 To Order
238883 ADJUSTMENT SHIM $5.59 To Order
238884 ADJUSTMENT SHIM $5.59 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
314493 COMPL. FRONT LH JOINT BRACKET $139.58 To Order
314494 COMPL. FRONT RH JOINT BRACKET $139.58 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
229324 SCREW $46.57 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $1.36 To Order
View All

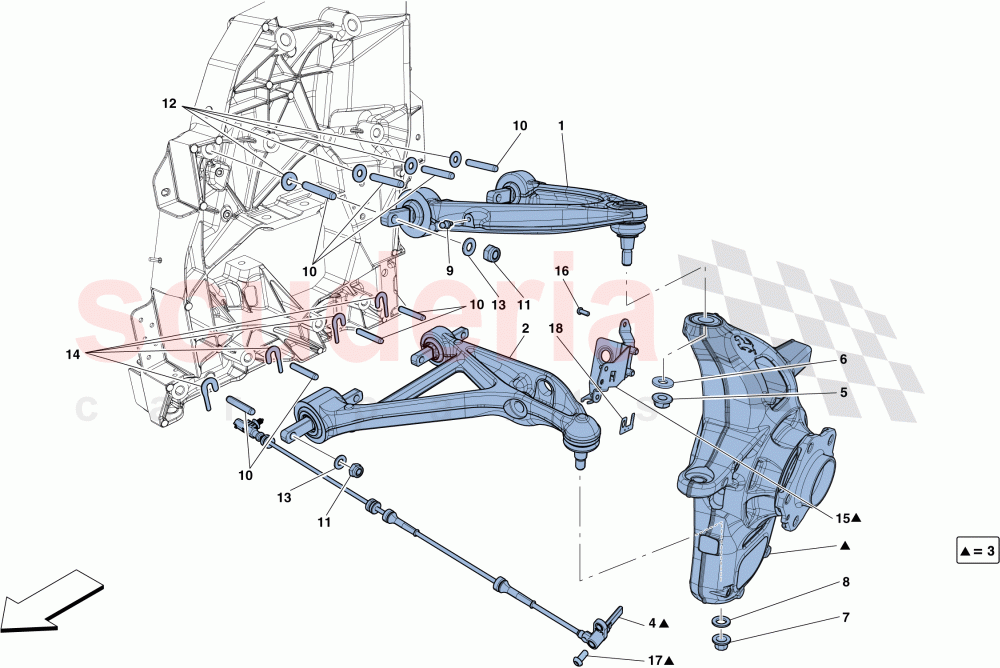

FRONT SUSPENSION - ARMS of Ferrari Ferrari 812 Superfast/GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 248758
LH Front Upper Arm 		$850.42 (38.6% off) 1
1 248760
RH Front Upper Arm 		$850.42 (38.6% off) 1
2 264523
Lower LH Front Arm
Applicable up to Ass. No. 155249 		$1,407.15 1
2 268896
LH FRONT LOWER ARM
Applicable from Ass. No. 155250 		$1,331.80 1
2 264524
Lower RH Front Arm
Applicable up to Ass. No. 155249 		$1,407.15 1
2 268897
RH FRONT LOWER ARM
Applicable from Ass. No. 155250 		$1,412.03 1
3 328039
COMPL. LH FRONT HUB CARRIER 		$2,560.92 1
3 328040
COMPL. RH FRONT HUB CARRIER 		$2,560.92 1
4 259615
ABS SENSOR 		$218.81 (9.4% off) 2
5 149807
NUT 		$1.18 (41% off) 2
6 12646921
WASHER 		$0.53 2
7 203795
NUT 		$2.58 2
8 241689
WASHER 		$7.68 2
9 343376
BALL JOINT 		$22.45 2
10 264528
THREADED ROD 		$3.94 16
11 12574521
Nyloc Nut 		$0.92 (54% off) 16
12 12646821
WASHER D.10 20-25 X 2 		$0.11 (78% off) 4
13 126648
WASHER D.10.5-21 X 2 		$1.91 16
14 238882
ADJUSTMENT SHIM
Th. 2.5 mm 		$5.59 (10.6% off) 8
14 238883
ADJUSTMENT SHIM
Th. 3 mm 		$5.59 (10.6% off) 8
14 238884
ADJUSTMENT SHIM
Th. 3.5 mm 		$5.59 (10.6% off) 8
14 238885
CAMBER SPACER 4MM
Th. 4 mm 		$5.77 (7.7% off) 8
14 238692
ADJUSTMENT SHIM
Th. 0.5 mm 		$6.55 8
14 238693
ADJUSTMENT SHIM
Th. 1 mm 		$5.77 (7.7% off) 8
14 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm 		$5.77 (6.2% off) 8
14 238694
ADJUSTMENT SHIM
Th. 2 mm 		$5.59 (9.1% off) 8
15 314493
COMPL. FRONT LH JOINT BRACKET 		$139.58 1
15 314494
COMPL. FRONT RH JOINT BRACKET 		$139.58 1
16 250657
SCREW
M6 X 14 		$7.60 4
17 229324
SCREW 		$46.57 2
18 162606
CLIP 		$1.36 (7.5% off) 2
