WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Ferrari Ferrari 612 Sessanta

View All

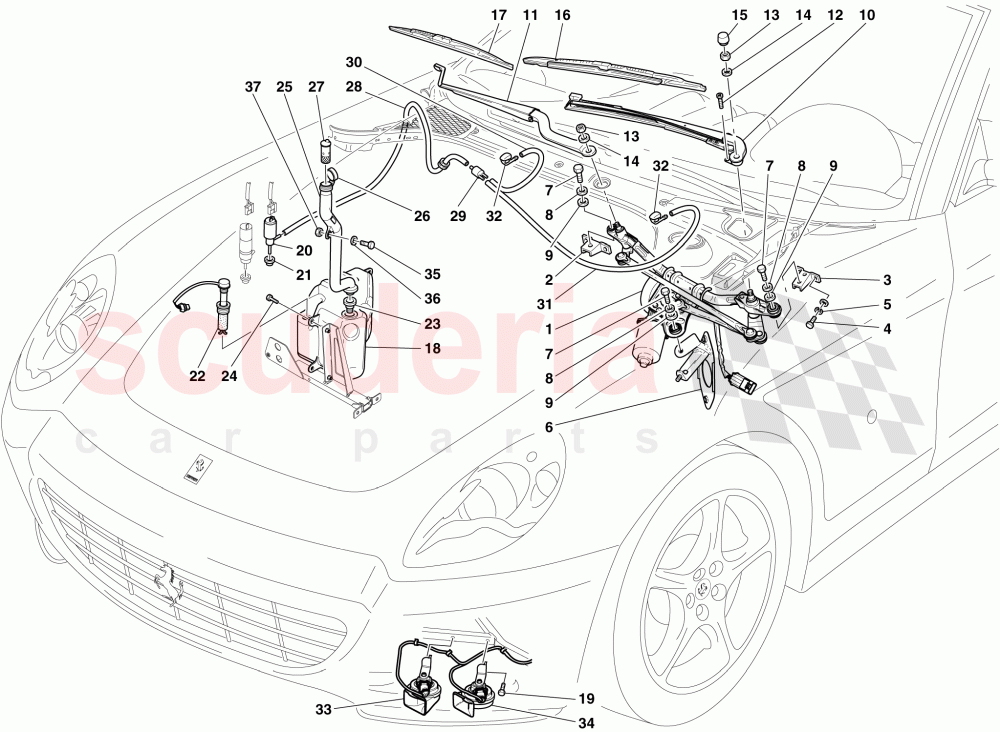

Ferrari 612 Sessanta - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67742400	COMPLETE WINDSCREEN WIPER LINKAGE	Enquire	To Order
	67842900	COMPLETE WINDSCREEN WIPER LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67329300	CENTRAL BRACKET	Enquire	To Order
	67843400	CENTRAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67158100	LATERAL BRACKET	Enquire	To Order
	67843500	LATERAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12625224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67158000	WINDSCREEN WIPER MOTOR FASTENER BRACKET	Enquire	To Order
	67843600	WINDSCREEN WIPER MOTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11194674	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68468200	PASSENGER SIDE ARM	Enquire	To Order
	68468300	PASSENGER SIDE ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67929800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15811887	Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67264800	DRIVER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order
	67843200	DRIVER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order
	80534900	WINDSCREEN WIPER BLADE DRIVER SIDE LHD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	980139980	PASSENGER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order
	67843300	Passenger Side Windscreen Wiper Blade	Enquire	To Order
	80535000	PASSENGER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	67892700	WINDSCREEN-HEADLIGHT WASHER FLUID CONTAINER	Enquire	To Order
	67892800	SCREEN WASHER FLUID CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836971	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65358700	WINDSCREEN WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65775100	GASKET FOR WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190048	FLUID SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65581700	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13836971	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67892900	FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66421300	Cap	Enquire	ARRIVING SOON
	80285600	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66421400	FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67588000	HEADLIGHT WASHER TUBES ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81061000	COMPLETE WINDSCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66981400	PIPE FROM VALVE TO RH NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66981500	PIPE FROM VALVE TO LH NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191000	SPRAY NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191456	RH ELECTROPNEUMATIC WARNING DEVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193982	LH ELECTROPNEUMATIC WARNING DEVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10978224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	67742400	COMPLETE WINDSCREEN WIPER LINKAGE	67742400 COMPLETE WINDSCREEN WIPER LINKAGE Not for GD	-	1	Enquire
1	67842900	COMPLETE WINDSCREEN WIPER LINKAGE	67842900 COMPLETE WINDSCREEN WIPER LINKAGE Applicable for GD	-	1	Enquire
2	67329300	CENTRAL BRACKET	67329300 CENTRAL BRACKET Not for GD	-	1	Enquire
2	67843400	CENTRAL BRACKET	67843400 CENTRAL BRACKET Applicable for GD	-	1	Enquire
3	67158100	LATERAL BRACKET	67158100 LATERAL BRACKET Not for GD	-	1	Enquire
3	67843500	LATERAL BRACKET	67843500 LATERAL BRACKET Applicable for GD	-	1	Enquire
4	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18	-	4	Enquire
5	12625224	WASHER	12625224 WASHER	-	4	Enquire
6	67158000	WINDSCREEN WIPER MOTOR FASTENER BRACKET	67158000 WINDSCREEN WIPER MOTOR FASTENER BRACKET Not for GD	-	1	Enquire
6	67843600	WINDSCREEN WIPER MOTOR FASTENER BRACKET	67843600 WINDSCREEN WIPER MOTOR FASTENER BRACKET Applicable for GD	-	1	Enquire
7	231620	SCREW	231620 SCREW	-	3	Enquire
8	11194674	WASHER	11194674 WASHER	-	3	Enquire
9	12648925	WASHER	12648925 WASHER	-	3	Enquire
11	68468200	PASSENGER SIDE ARM	68468200 PASSENGER SIDE ARM Not for GD	-	1	Enquire
11	68468300	PASSENGER SIDE ARM	68468300 PASSENGER SIDE ARM Applicable for GD	-	1	Enquire
12	67929800	SCREW	67929800 SCREW	-	1	Enquire
13	10791014	NUT	10791014 NUT	-	2	Enquire
14	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
15	15811887	Cap	15811887 Cap	-	2	Enquire
16	67264800	DRIVER SIDE WINDSCREEN WIPER BLADE	67264800 DRIVER SIDE WINDSCREEN WIPER BLADE Not for GD	-	1	Enquire
16	67843200	DRIVER SIDE WINDSCREEN WIPER BLADE	67843200 DRIVER SIDE WINDSCREEN WIPER BLADE Applicable for GD	-	1	Enquire
16	80534900	WINDSCREEN WIPER BLADE DRIVER SIDE LHD	80534900 WINDSCREEN WIPER BLADE DRIVER SIDE LHD Enhanced version; Not for GD	-	1	Enquire
16	80539000	WINDSCREEN WIPER BLADE DRIVER SIDE RHD	80539000 WINDSCREEN WIPER BLADE DRIVER SIDE RHD Enhanced version; Applicable for GD	-	1	Enquire
17	980139980	PASSENGER SIDE WINDSCREEN WIPER BLADE	980139980 PASSENGER SIDE WINDSCREEN WIPER BLADE Not for GD	-	1	Enquire
17	67843300	Passenger Side Windscreen Wiper Blade	67843300 Passenger Side Windscreen Wiper Blade Applicable for GD	-	1	Enquire
17	80535000	PASSENGER SIDE WINDSCREEN WIPER BLADE	80535000 PASSENGER SIDE WINDSCREEN WIPER BLADE Enhanced version; Not for GD	-	1	Enquire
17	80539100	PASSENGER SIDE WINDSCREEN WIPER BLADE	80539100 PASSENGER SIDE WINDSCREEN WIPER BLADE Enhanced version; Applicable for GD	-	1	Enquire
18	67892700	WINDSCREEN-HEADLIGHT WASHER FLUID CONTAINER	67892700 WINDSCREEN-HEADLIGHT WASHER FLUID CONTAINER Not for USA, CDN	-	1	Enquire
18	67892800	SCREEN WASHER FLUID CONTAINER	67892800 SCREEN WASHER FLUID CONTAINER Applicable for USA, CDN	-	1	Enquire
19	13836971	SCREW	13836971 SCREW	-	2	Enquire
20	65358700	WINDSCREEN WASHER PUMP	65358700 WINDSCREEN WASHER PUMP	-	1	Enquire
21	65775100	GASKET FOR WASHER PUMP	65775100 GASKET FOR WASHER PUMP	-	1	Enquire
22	190048	FLUID SENSOR	190048 FLUID SENSOR	-	1	Enquire
23	65581700	GASKET	65581700 GASKET	-	1	Enquire
24	13836971	SCREW	13836971 SCREW	-	4	Enquire
25	67892900	FILLER PIPE	67892900 FILLER PIPE	-	1	Enquire
26	66421300	Cap ARRIVING SOON	66421300 Cap ARRIVING SOON	-	1	Enquire
26	80285600	CAP	80285600 CAP Enhanced version	-	1	Enquire
27	66421400	FILTER	66421400 FILTER	-	1	Enquire
28	67588000	HEADLIGHT WASHER TUBES ASSEMBLY	67588000 HEADLIGHT WASHER TUBES ASSEMBLY	-	1	Enquire
29	81061000	COMPLETE WINDSCREEN WASHER PIPE	81061000 COMPLETE WINDSCREEN WASHER PIPE	-	1	Enquire
30	66981400	PIPE FROM VALVE TO RH NOZZLE	66981400 PIPE FROM VALVE TO RH NOZZLE	-	1	Enquire
31	66981500	PIPE FROM VALVE TO LH NOZZLE	66981500 PIPE FROM VALVE TO LH NOZZLE	-	1	Enquire
32	65191000	SPRAY NOZZLE	65191000 SPRAY NOZZLE	-	2	Enquire
33	191456	RH ELECTROPNEUMATIC WARNING DEVICE	191456 RH ELECTROPNEUMATIC WARNING DEVICE	-	1	Enquire
34	193982	LH ELECTROPNEUMATIC WARNING DEVICE	193982 LH ELECTROPNEUMATIC WARNING DEVICE	-	1	Enquire
35	10978224	SCREW	10978224 SCREW	-	1	Enquire
36	127494	WASHER	127494 WASHER	-	1	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
