AIR INTAKE of Ferrari Ferrari 612 Sessanta

View All

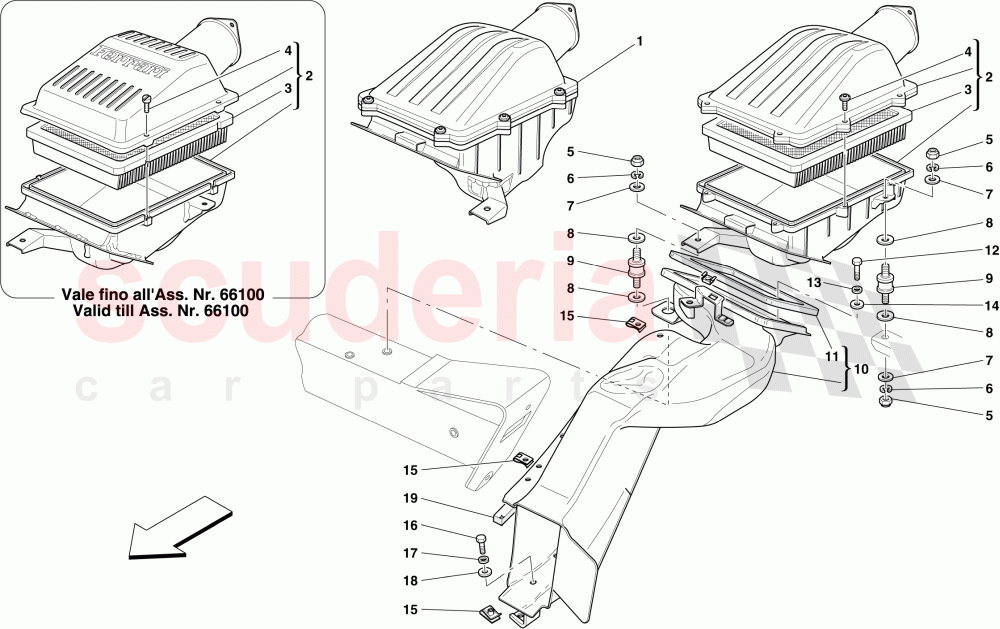

Ferrari 612 Sessanta - AIR INTAKE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	195736	COMPLETE RH AIR INTAKE	Enquire	To Order
	225011	COMPLETE RH AIR INTAKE	Enquire	To Order
	235545	COMPLETE RH AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195737	COMPLETE LH AIR INTAKE	Enquire	To Order
	225012	COMPLETE LH AIR INTAKE	Enquire	To Order
	235546	COMPLETE LH AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180935	Air Filter	Enquire	To Order
	223039	Air Filter	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	193276	SCREW	Enquire	To Order
	81266200	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285553	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197983	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245805	VIBRATION DAMPER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	195736	COMPLETE RH AIR INTAKE	195736 COMPLETE RH AIR INTAKE Applicable up to Ass. No. 66100	-	1	Enquire
1	225011	COMPLETE RH AIR INTAKE	225011 COMPLETE RH AIR INTAKE Applicable from Ass. No. 66101	-	1	Enquire
1	235545	COMPLETE RH AIR INTAKE	235545 COMPLETE RH AIR INTAKE Enhanced version	-	1	Enquire
2	195737	COMPLETE LH AIR INTAKE	195737 COMPLETE LH AIR INTAKE Applicable up to Ass. No. 66100	-	1	Enquire
2	225012	COMPLETE LH AIR INTAKE	225012 COMPLETE LH AIR INTAKE Applicable from Ass. No. 66101	-	1	Enquire
2	235546	COMPLETE LH AIR INTAKE	235546 COMPLETE LH AIR INTAKE Enhanced version	-	1	Enquire
3	180935	Air Filter	180935 Air Filter Applicable up to Ass. No. 66100	-	2	Enquire
3	223039	Air Filter ARRIVING SOON	223039 Air Filter Applicable from Ass. No. 66101 ARRIVING SOON	-	2	Enquire
4	193276	SCREW	193276 SCREW Applicable up to Ass. No. 66100	-	8	Enquire
4	81266200	SCREW	81266200 SCREW Applicable from Ass. No. 66101	-	8	Enquire
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
6	127494	WASHER	127494 WASHER	-	6	Enquire
7	12648925	WASHER	12648925 WASHER	-	6	Enquire
8	12643724	WASHER	12643724 WASHER	-	8	Enquire
9	285553	VIBRATION DAMPER	285553 VIBRATION DAMPER	-	4	Enquire
11	197983	GASKET	197983 GASKET	-	2	Enquire
12	231625	SCREW	231625 SCREW	-	2	Enquire
13	127494	WASHER	127494 WASHER	-	2	Enquire
14	12643724	WASHER	12643724 WASHER	-	2	Enquire
15	68700800	CLIP	68700800 CLIP	-	12	Enquire
16	81591700	SCREW	81591700 SCREW	-	2	Enquire
17	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
18	13577724	WASHER	13577724 WASHER	-	2	Enquire
19	245805	VIBRATION DAMPER	245805 VIBRATION DAMPER	-	2	Enquire
