EXTERIOR TRIM of Ferrari Ferrari 612 Sessanta

View All

Ferrari 612 Sessanta - EXTERIOR TRIM

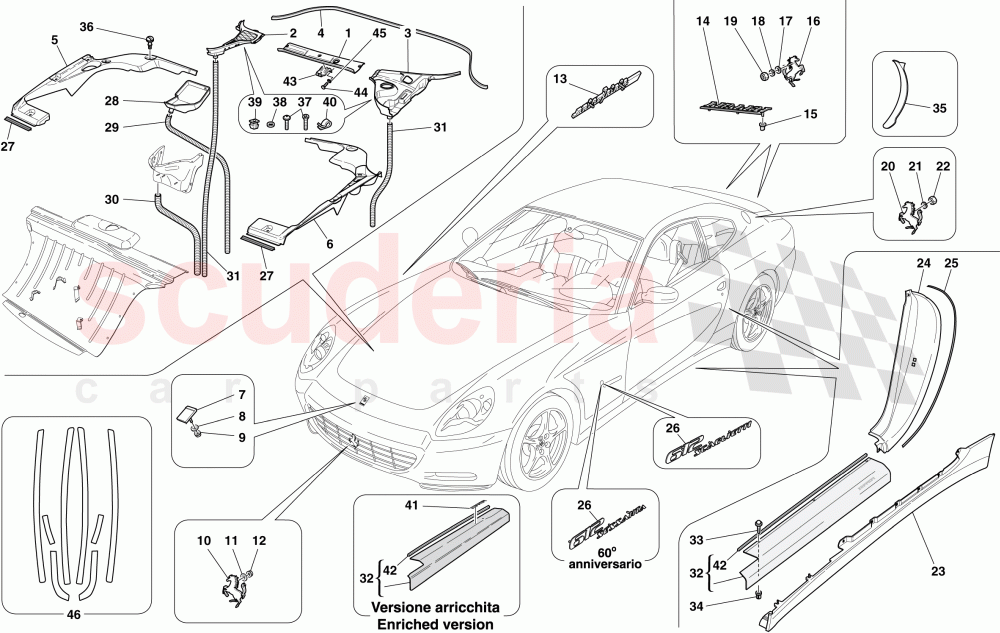

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	68311800	CENTRAL UNDERWINDSCREEN TRAY	Enquire	To Order
	67842700	CENTRAL UNDERWINDSCREEN TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68311500	RH UNDERWINDSCREEN TRAY	Enquire	To Order
	67842300	RH UNDERWINDSCREEN TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68312200	LH UNDERWINDSCREEN TRAY	Enquire	To Order
	67842200	LH UNDERWINDSCREEN TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68314400	UNDERWINDSCREEN SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67629200	RH ENGINE SHIELD	Enquire	To Order
	69557000	RH ENGINE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67629300	LH ENGINE SHIELD	Enquire	To Order
	69557100	LH ENGINE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	973053	FRONT BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

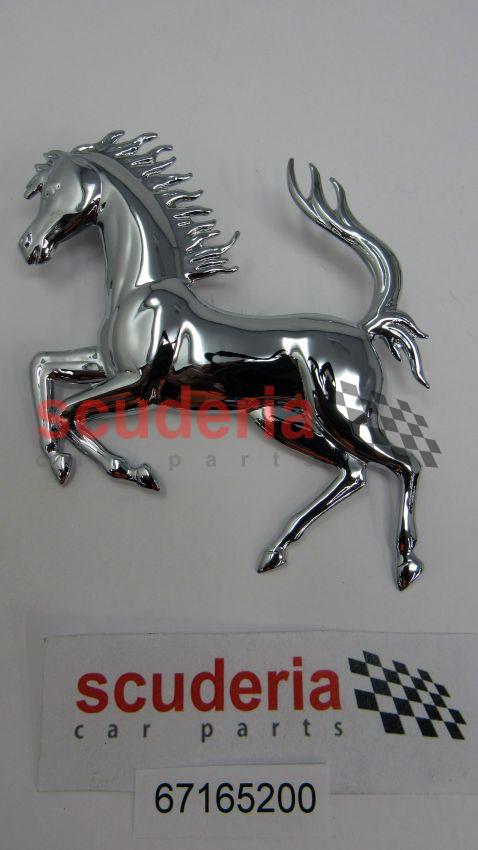

	67165200	PRANCING HORSE MOTIF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12600474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63482200	FERRARI LETTERING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88074800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60032109	PRANCING HORSE BADGE CHROME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85617800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67840500	CAVALLINO RAMPANTE BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12600474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101721	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66859110	RH SILL TRIM	Enquire	To Order
	69547600	RH SILL TRIM	Enquire	To Order
	66859210	LH SILL TRIM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	66989211	PILASTER STRIP COVER FOR RH DOOR	Enquire	To Order
	66989311	PILASTER STRIP COVER FOR LH DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66971900	PILASTER STRIP COVER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68292700	612 SCAGLIETTI BADGE	Enquire	To Order
	80735700	612 SESSANTA BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68302100	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68116100	WATER DRAIN TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65992600	WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67620600	WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67620500	WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80124600	RH SILL TRIM PANEL	Enquire	To Order
	80462100	RH SILL TRIM PANEL	Enquire	To Order
	80124700	LH SILL TRIM PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	15688875	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115480	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68297200	ADHESIVE PROTECTION FILM FOR RH FRONT WHEELHOUSE	Enquire	To Order
	68297300	ADHESIVE PROTECTION FILM FOR LH FRONT WHEELHOUSE	Enquire	To Order
	68297400	ADHESIVE PROTECTION FILM FOR RH FRONT SILL TRIM PANEL	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85199200	FIXING BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15672777	SCREW	Enquire	To Order
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67611500	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69373900	FERRARI BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65858500	RUBBER MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67157900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902511	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70001944	HIGH WEAR FILM KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	68311800	CENTRAL UNDERWINDSCREEN TRAY	68311800 CENTRAL UNDERWINDSCREEN TRAY Not for GD	-	1	Enquire
1	67842700	CENTRAL UNDERWINDSCREEN TRAY	67842700 CENTRAL UNDERWINDSCREEN TRAY Applicable for GD	-	1	Enquire
2	68311500	RH UNDERWINDSCREEN TRAY	68311500 RH UNDERWINDSCREEN TRAY Not for GD	-	1	Enquire
2	67842300	RH UNDERWINDSCREEN TRAY	67842300 RH UNDERWINDSCREEN TRAY Applicable for GD	-	1	Enquire
3	68312200	LH UNDERWINDSCREEN TRAY	68312200 LH UNDERWINDSCREEN TRAY Not for GD	-	1	Enquire
3	67842200	LH UNDERWINDSCREEN TRAY	67842200 LH UNDERWINDSCREEN TRAY Applicable for GD	-	1	Enquire
4	68314400	UNDERWINDSCREEN SEAL	68314400 UNDERWINDSCREEN SEAL	-	1	Enquire
5	67629200	RH ENGINE SHIELD	67629200 RH ENGINE SHIELD Applicable up to Ass. No. 66100	-	1	Enquire
5	69557000	RH ENGINE SHIELD	69557000 RH ENGINE SHIELD Applicable from Ass. No. 66101	-	1	Enquire
6	67629300	LH ENGINE SHIELD	67629300 LH ENGINE SHIELD Applicable up to Ass. No. 66100	-	1	Enquire
6	69557100	LH ENGINE SHIELD	69557100 LH ENGINE SHIELD Applicable from Ass. No. 66101	-	1	Enquire
7	973053	FRONT BADGE	973053 FRONT BADGE	-	1	Enquire
8	12638124	WASHER	12638124 WASHER No longer supplied; Replaced by 10519378	-	1	Enquire
8	62769800	WASHER	62769800 WASHER	-	1	Enquire
9	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	1	Enquire
10	67165200	PRANCING HORSE MOTIF	67165200 PRANCING HORSE MOTIF	-	1	Enquire
11	12600474	WASHER	12600474 WASHER	-	2	Enquire
12	16101714	NUT	16101714 NUT	-	2	Enquire
14	63482200	FERRARI LETTERING	63482200 FERRARI LETTERING	-	1	Enquire
15	88074800	CLIP	88074800 CLIP	-	3	Enquire
16	60032109	PRANCING HORSE BADGE CHROME	60032109 PRANCING HORSE BADGE CHROME	-	1	Enquire
17	10519224	WASHER	10519224 WASHER	-	2	Enquire
18	85617800	WASHER	85617800 WASHER	-	2	Enquire
19	62790300	NUT	62790300 NUT	-	2	Enquire
20	67840500	CAVALLINO RAMPANTE BADGE	67840500 CAVALLINO RAMPANTE BADGE Applicable up to Ass. No. 52182	-	1	Enquire
21	12600474	WASHER	12600474 WASHER	-	1	Enquire
22	16101721	NUT	16101721 NUT	-	1	Enquire
23	66859110	RH SILL TRIM	66859110 RH SILL TRIM	-	1	Enquire
23	69547600	RH SILL TRIM	69547600 RH SILL TRIM Blue; Optional JPNS; Applicable for J	-	1	Enquire
23	66859210	LH SILL TRIM	66859210 LH SILL TRIM	-	1	Enquire
23	69547700	LH SILL TRIM	69547700 LH SILL TRIM Blue; Optional JPNS; Applicable for J	-	1	Enquire
24	66989211	PILASTER STRIP COVER FOR RH DOOR	66989211 PILASTER STRIP COVER FOR RH DOOR	-	1	Enquire
24	66989311	PILASTER STRIP COVER FOR LH DOOR	66989311 PILASTER STRIP COVER FOR LH DOOR	-	1	Enquire
25	66971900	PILASTER STRIP COVER SEAL	66971900 PILASTER STRIP COVER SEAL	-	2	Enquire
26	68292700	612 SCAGLIETTI BADGE	68292700 612 SCAGLIETTI BADGE LH side	-	1	Enquire
26	80735700	612 SESSANTA BADGE	80735700 612 SESSANTA BADGE LH side; Applicable for "60°anniversario"	-	1	Enquire
27	68302100	GASKET	68302100 GASKET	-	2	Enquire
28	68116100	WATER DRAIN TRAY	68116100 WATER DRAIN TRAY	-	1	Enquire
29	65992600	WATER DRAIN PIPE	65992600 WATER DRAIN PIPE	-	1	Enquire
30	67620600	WATER DRAIN PIPE	67620600 WATER DRAIN PIPE	-	1	Enquire
31	67620500	WATER DRAIN PIPE	67620500 WATER DRAIN PIPE	-	2	Enquire
32	80124600	RH SILL TRIM PANEL	80124600 RH SILL TRIM PANEL	-	1	Enquire
32	80462100	RH SILL TRIM PANEL	80462100 RH SILL TRIM PANEL Carbon version; Enhanced version	-	1	Enquire
32	80124700	LH SILL TRIM PANEL	80124700 LH SILL TRIM PANEL	-	1	Enquire
32	80462200	LH SILL TRIM PANEL	80462200 LH SILL TRIM PANEL Carbon version; Enhanced version	-	1	Enquire
33	15688875	SCREW	15688875 SCREW	-	6	Enquire
34	14115480	BLOCK	14115480 BLOCK	-	6	Enquire
35	68297200	ADHESIVE PROTECTION FILM FOR RH FRONT WHEELHOUSE	68297200 ADHESIVE PROTECTION FILM FOR RH FRONT WHEELHOUSE No longer supplied	-	1	Enquire
35	68297300	ADHESIVE PROTECTION FILM FOR LH FRONT WHEELHOUSE	68297300 ADHESIVE PROTECTION FILM FOR LH FRONT WHEELHOUSE No longer supplied	-	1	Enquire
35	68297400	ADHESIVE PROTECTION FILM FOR RH FRONT SILL TRIM PANEL	68297400 ADHESIVE PROTECTION FILM FOR RH FRONT SILL TRIM PANEL No longer supplied	-	1	Enquire
35	68297500	ADHESIVE PROTECTION FILM FOR LH FRONT SILL TRIM PANEL	68297500 ADHESIVE PROTECTION FILM FOR LH FRONT SILL TRIM PANEL No longer supplied	-	1	Enquire
35	68297600	ADHESIVE PROTECTION FILM FOR UPPER RH REAR BUMPER.	68297600 ADHESIVE PROTECTION FILM FOR UPPER RH REAR BUMPER. No longer supplied	-	1	Enquire
35	68297700	ADHESIVE PROTECTION FILM FOR LH UPPER REAR BUMPER.	68297700 ADHESIVE PROTECTION FILM FOR LH UPPER REAR BUMPER. No longer supplied	-	1	Enquire
35	68299300	ADHESIVE PROTECTION FILM FOR LOWER RH REAR BUMPER.	68299300 ADHESIVE PROTECTION FILM FOR LOWER RH REAR BUMPER. No longer supplied	-	1	Enquire
35	68299400	ADHESIVE PROTECTION FILM FOR LH LOWER REAR BUMPER.	68299400 ADHESIVE PROTECTION FILM FOR LH LOWER REAR BUMPER. No longer supplied	-	1	Enquire
35	70001209	COMPL. ADHESIVE PROTECTION	70001209 COMPL. ADHESIVE PROTECTION Not for USA, CDN	-	1	Enquire
35	70001420	COMPL. ADHESIVE PROTECTION	70001420 COMPL. ADHESIVE PROTECTION Applicable for USA, CDN	-	1	Enquire
35	70001210	LH ADHESIVE PROTECTION	70001210 LH ADHESIVE PROTECTION	-	1	Enquire
35	70001211	RH ADHESIVE PROTECTIONS	70001211 RH ADHESIVE PROTECTIONS	-	1	Enquire
35	70001212	FRONT ADHESIVE PROTECTIONS	70001212 FRONT ADHESIVE PROTECTIONS Not for USA, CDN	-	1	Enquire
35	70001421	FRONT ADHESIVE PROTECTIONS	70001421 FRONT ADHESIVE PROTECTIONS Applicable for USA, CDN	-	1	Enquire
36	85199200	FIXING BUTTON	85199200 FIXING BUTTON	-	9	Enquire
37	15672777	SCREW	15672777 SCREW	-	2	Enquire
37	81591700	SCREW	81591700 SCREW	-	6	Enquire
38	62769800	WASHER	62769800 WASHER	-	6	Enquire
39	67611500	BLOCK	67611500 BLOCK	-	2	Enquire
40	68700800	CLIP	68700800 CLIP	-	8	Enquire
41	69373900	FERRARI BADGE	69373900 FERRARI BADGE Enhanced version	-	2	Enquire
42	65858500	RUBBER MOULDING	65858500 RUBBER MOULDING	-	2	Enquire
43	67157900	BRACKET	67157900 BRACKET	-	1	Enquire
44	10902511	SCREW	10902511 SCREW	-	2	Enquire
45	860172	WASHER	860172 WASHER	-	2	Enquire
46	70001944	HIGH WEAR FILM KIT	70001944 HIGH WEAR FILM KIT	-	1	Enquire
