REAR EXHAUST SYSTEM of Ferrari Ferrari 612 Sessanta

View All

Ferrari 612 Sessanta - REAR EXHAUST SYSTEM

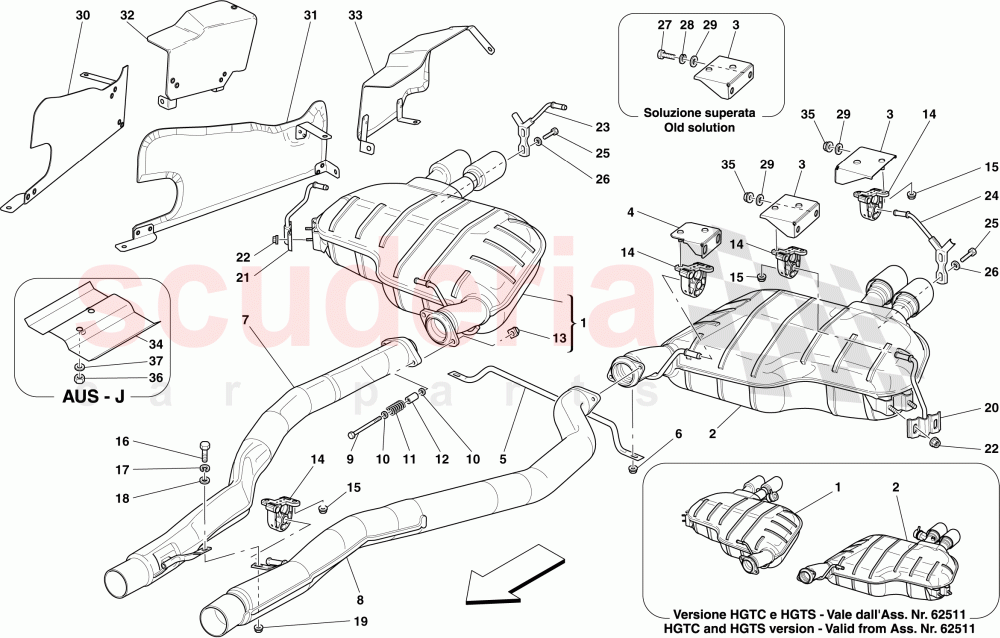

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	197767	RH EXHAUST SILENCER	Enquire	To Order
	224371	RH EXHAUST SILENCER	Enquire	To Order
	224371	RH EXHAUST SILENCER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	197766	LH EXHAUST SILENCER	Enquire	To Order
	224372	LH EXHAUST SILENCER	Enquire	To Order
	224372	LH EXHAUST SILENCER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	196106	SILENCER MOUNTING BRACKET	Enquire	To Order
	196106	SILENCER MOUNTING BRACKET	Enquire	To Order
	191586	SILENCER MOUNTING BRACKET	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	196105	SILENCER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195336	CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058519	FLANGED NUT M8 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197732	RH EXHAUST EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197731	LH EXHAUST EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128010	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	111743	EXHAUST BRACKET SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114749	Spacer D8. 10 x 23	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058519	FLANGED NUT M8 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199731	VIBRATION DAMPER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058519	FLANGED NUT M8 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043434	HEX HEAD SCREW M8 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058519	FLANGED NUT M8 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207238	LH LATERAL MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207239	RH LATERAL MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058519	FLANGED NUT M8 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207237	RH "Y" BRACKET	Enquire	To Order
	210940	RH "Y" BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	207236	LH "Y" BRACKET	Enquire	To Order
	210941	LH "Y" BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043021	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order
	14306924	SCREW	Enquire	To Order
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order
	12601374	WASHER	Enquire	To Order
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578305	WASHER	Enquire	To Order
	13578305	WASHER	Enquire	To Order
	12646678	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208837	RH FRONT SHIELD	Enquire	To Order
	247262	RH FRONT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208835	LH FRONT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208838	RH REAR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208836	LH REAR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199075	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175283	Nut	Enquire	To Order
	175283	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14048327	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12626024	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	197767	RH EXHAUST SILENCER	197767 RH EXHAUST SILENCER	-	1	Enquire
1	224371	RH EXHAUST SILENCER	224371 RH EXHAUST SILENCER HGTC and HGTS versions; Optional; Applicable up to Ass. No. 62510	-	1	Enquire
1	224371	RH EXHAUST SILENCER	224371 RH EXHAUST SILENCER HGTC and HGTS versions; Optional; Not applicable for enhanced and "OTO" versions; Not for J; Applicable from Ass. No. 62511	-	1	Enquire
1	247274	RH EXHAUST SILENCER	247274 RH EXHAUST SILENCER HGTC version; Optional; Applicable for enhanced and "OTO" versions; Applicable for J	-	1	Enquire
1	234429	RH EXHAUST SILENCER	234429 RH EXHAUST SILENCER Enhanced version and "OTO" version; Standard	-	1	Enquire
1	240524	RH EXHAUST SILENCER	240524 RH EXHAUST SILENCER Applicable for "60° anniversario" version and "OTO" version	-	1	Enquire
2	197766	LH EXHAUST SILENCER	197766 LH EXHAUST SILENCER	-	1	Enquire
2	224372	LH EXHAUST SILENCER	224372 LH EXHAUST SILENCER HGTC and HGTS versions; Optional; Applicable up to Ass. No. 62510	-	1	Enquire
2	224372	LH EXHAUST SILENCER	224372 LH EXHAUST SILENCER HGTC and HGTS versions; Optional; Not applicable for enhanced and "OTO" versions; Not for J; Applicable from Ass. No. 62511	-	1	Enquire
2	247275	LH EXHAUST SILENCER	247275 LH EXHAUST SILENCER HGTC version; Optional; Applicable for enhanced and "OTO" versions; Applicable for J	-	1	Enquire
2	234428	LH EXHAUST SILENCER	234428 LH EXHAUST SILENCER Enhanced version and "OTO" version; Standard	-	1	Enquire
2	240525	LH EXHAUST SILENCER	240525 LH EXHAUST SILENCER Applicable for "60° anniversario" version and "OTO" version	-	1	Enquire
3	196106	SILENCER MOUNTING BRACKET	196106 SILENCER MOUNTING BRACKET Applicable up to Ass. No. 65751	-	4	Enquire
3	196106	SILENCER MOUNTING BRACKET	196106 SILENCER MOUNTING BRACKET Applicable from Ass. No. 54869 up to Ass. No. 65751	-	2	Enquire
3	191586	SILENCER MOUNTING BRACKET	191586 SILENCER MOUNTING BRACKET Applicable from Ass. No. 65752	-	2	Enquire
3	210935	REAR RH SILENCER MOUNTING BRACKET	210935 REAR RH SILENCER MOUNTING BRACKET Applicable from Ass. No. 54869	-	1	Enquire
3	210938	REAR LH SILENCER MOUNTING BRACKET	210938 REAR LH SILENCER MOUNTING BRACKET Applicable from Ass. No. 54869	-	1	Enquire
4	196105	SILENCER MOUNTING BRACKET	196105 SILENCER MOUNTING BRACKET	-	2	Enquire
5	195336	CROSS MEMBER	195336 CROSS MEMBER	-	1	Enquire
6	14058519	FLANGED NUT M8 X 8	14058519 FLANGED NUT M8 X 8	-	2	Enquire
7	197732	RH EXHAUST EXTENSION	197732 RH EXHAUST EXTENSION	-	1	Enquire
8	197731	LH EXHAUST EXTENSION	197731 LH EXHAUST EXTENSION	-	1	Enquire
9	14306924	SCREW	14306924 SCREW	-	4	Enquire
10	128010	Washer	128010 Washer	-	8	Enquire
11	111743	EXHAUST BRACKET SPRING	111743 EXHAUST BRACKET SPRING	-	4	Enquire
12	114749	Spacer D8. 10 x 23	114749 Spacer D8. 10 x 23	-	4	Enquire
13	14058519	FLANGED NUT M8 X 8	14058519 FLANGED NUT M8 X 8 Included with compl. silencer ref. 1-2; No longer supplied	-	4	Enquire
14	199731	VIBRATION DAMPER MOUNTING	199731 VIBRATION DAMPER MOUNTING	-	7	Enquire
15	14058519	FLANGED NUT M8 X 8	14058519 FLANGED NUT M8 X 8	-	14	Enquire
16	16043434	HEX HEAD SCREW M8 X 20	16043434 HEX HEAD SCREW M8 X 20	-	1	Enquire
17	127496	WASHER	127496 WASHER	-	1	Enquire
18	84653800	WASHER	84653800 WASHER	-	1	Enquire
19	14058519	FLANGED NUT M8 X 8	14058519 FLANGED NUT M8 X 8	-	1	Enquire
20	207238	LH LATERAL MOUNTING BRACKET	207238 LH LATERAL MOUNTING BRACKET	-	1	Enquire
21	207239	RH LATERAL MOUNTING BRACKET	207239 RH LATERAL MOUNTING BRACKET	-	1	Enquire
22	14058519	FLANGED NUT M8 X 8	14058519 FLANGED NUT M8 X 8	-	4	Enquire
23	207237	RH "Y" BRACKET	207237 RH "Y" BRACKET Applicable up to Ass. No. 54868	-	1	Enquire
23	210940	RH "Y" BRACKET	210940 RH "Y" BRACKET Applicable from Ass. No. 54869	-	1	Enquire
24	207236	LH "Y" BRACKET	207236 LH "Y" BRACKET Applicable up to Ass. No. 54868	-	1	Enquire
24	210941	LH "Y" BRACKET	210941 LH "Y" BRACKET Applicable from Ass. No. 54869	-	1	Enquire
25	16043021	SCREW	16043021 SCREW	-	4	Enquire
26	12601374	WASHER	12601374 WASHER	-	4	Enquire
27	14306924	SCREW	14306924 SCREW Applicable up to Ass. No. 54868	-	12	Enquire
27	14306924	SCREW	14306924 SCREW Applicable from Ass. No. 54869 up to Ass. No. 65751	-	8	Enquire
27	14306924	SCREW	14306924 SCREW Applicable from Ass. No. 65752	-	4	Enquire
28	12601374	WASHER	12601374 WASHER Applicable up to Ass. No. 54868	-	12	Enquire
28	12601374	WASHER	12601374 WASHER Applicable from Ass. No. 54869 up to Ass. No. 65751	-	8	Enquire
28	12601374	WASHER	12601374 WASHER Applicable from Ass. No. 65752	-	12	Enquire
29	13578305	WASHER	13578305 WASHER Applicable up to Ass. No. 65751	-	12	Enquire
29	13578305	WASHER	13578305 WASHER Applicable from Ass. No. 65752	-	8	Enquire
29	12646678	WASHER	12646678 WASHER Applicable from Ass. No. 65752	-	4	Enquire
30	208837	RH FRONT SHIELD	208837 RH FRONT SHIELD	-	1	Enquire
30	247262	RH FRONT SHIELD	247262 RH FRONT SHIELD Applicable for "OTO"	-	1	Enquire
31	208835	LH FRONT SHIELD	208835 LH FRONT SHIELD	-	1	Enquire
32	208838	RH REAR SHIELD	208838 RH REAR SHIELD	-	1	Enquire
33	208836	LH REAR SHIELD	208836 LH REAR SHIELD	-	1	Enquire
34	199075	HEAT SHIELD	199075 HEAT SHIELD Applicable for AUS, J	-	1	Enquire
35	175283	Nut	175283 Nut Applicable from Ass. No. 54869 up to Ass. No. 65751	-	4	Enquire
35	175283	Nut	175283 Nut Applicable from Ass. No. 65752	-	8	Enquire
36	14048327	NUT	14048327 NUT	-	2	Enquire
37	12626024	WASHER	12626024 WASHER	-	2	Enquire
