Ferrari 612 Sessanta - DOORS - OPENING MECHANISM AND HINGES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67935400 RH DOOR LOCK $304.86 To Order
67935500 LH DOOR LOCK $304.86 To Order
Photo Part No Description Price (each) Stock
67077900 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
67671200 RH BLOCK MOUNT $77.00 To Order
67671300 LH BLOCK MOUNT $80.36 To Order
Photo Part No Description Price (each) Stock
67627700 RH TIE-ROD $69.92 To Order
67627800 LH TIE-ROD $69.92 To Order
Photo Part No Description Price (each) Stock
14059114 NUT $0.13 IN STOCK
Photo Part No Description Price (each) Stock
14446924 WASHER $0.31 IN STOCK
Photo Part No Description Price (each) Stock
213625 COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS $1,235.52 To Order
223867 COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS $1,347.85 To Order
Photo Part No Description Price (each) Stock
207548 UNCODED KEY $609.73 To Order
227551 UNCODED KEY $641.82 To Order
Photo Part No Description Price (each) Stock
153603 CODE CARD FERRARI $62.56 To Order
Photo Part No Description Price (each) Stock
68127300 RH EXTERNAL HANDLE $465.32 To Order
68127400 LH EXTERNAL HANDLE $465.32 To Order
Photo Part No Description Price (each) Stock
66866410 RH EXTERNAL DOOR HANDLE $101.07 To Order
80993100 RH EXTERNAL DOOR HANDLE Enquire To Order
66866510 LH EXTERNAL DOOR HANDLE $101.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
64659500 PLATE $33.68 To Order
Photo Part No Description Price (each) Stock
64214600 SCREW $11.31 To Order
Photo Part No Description Price (each) Stock
10445224 SCREW $0.06 To Order
Photo Part No Description Price (each) Stock
13550077 WASHER $3.36 To Order
Photo Part No Description Price (each) Stock
67185900 RH INTERNAL DOOR HANDLE BODY $94.66 To Order
68978800 RH INTERNAL DOOR HANDLE $465.32 To Order
67930000 RH INTERNAL DOOR HANDLE BODY Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
67499800 DOOR RETAINER TIE-ROD $65.77 To Order
Photo Part No Description Price (each) Stock
67440800 GASKET $24.05 To Order
Photo Part No Description Price (each) Stock
67440700 PLATE $32.08 To Order
Photo Part No Description Price (each) Stock
13027024 SCREW M6 X 16MM $0.21 IN STOCK
Photo Part No Description Price (each) Stock
66996500 MOBILE HINGE $94.66 To Order
Photo Part No Description Price (each) Stock
62825300 BUSHING $33.68 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.82 To Order
Photo Part No Description Price (each) Stock
66996400 FIXED HINGE $176.49 To Order
Photo Part No Description Price (each) Stock
67332700 PIN $27.26 To Order
Photo Part No Description Price (each) Stock
11087974 SNAP RING $0.19 IN STOCK
Photo Part No Description Price (each) Stock
67624700 SCREW $10.13 To Order
67624800 SCREW $13.10 To Order
67624900 SCREW $14.28 To Order
Photo Part No Description Price (each) Stock
12628904 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
12602474 WASHER $0.10 To Order
Photo Part No Description Price (each) Stock
85321500 STRIKER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
67853600 SHIM $14.59 To Order
Photo Part No Description Price (each) Stock
14442434 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
63859200 MICROSWITCH $272.77 To Order
Photo Part No Description Price (each) Stock
67186100 RH DOOR RELEASE LEVER $68.98 To Order
68979000 RH DOOR RELEASE LEVER Enquire To Order
67620800 LH DOOR RELEASE LEVER $72.19 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
67186200 PIN $3.83 To Order
Photo Part No Description Price (each) Stock
67186300 LEVER RETURN SPRING $1.77 To Order
Photo Part No Description Price (each) Stock
67627300 RH TIE-ROD $67.38 To Order
67627400 LH TIE-ROD $78.61 To Order
Photo Part No Description Price (each) Stock
62794000 JOINT $1.30 To Order
Photo Part No Description Price (each) Stock
248061 CLIP $2.14 IN STOCK
Photo Part No Description Price (each) Stock
140727 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
66866600 RH INTERNAL DOOR HANDLE $272.77 To Order
68978800 RH INTERNAL DOOR HANDLE $465.32 To Order
67929900 RH INTERNAL DOOR HANDLE $401.13 To Order
...and 13 more part variants. See table on right for more details.
View All

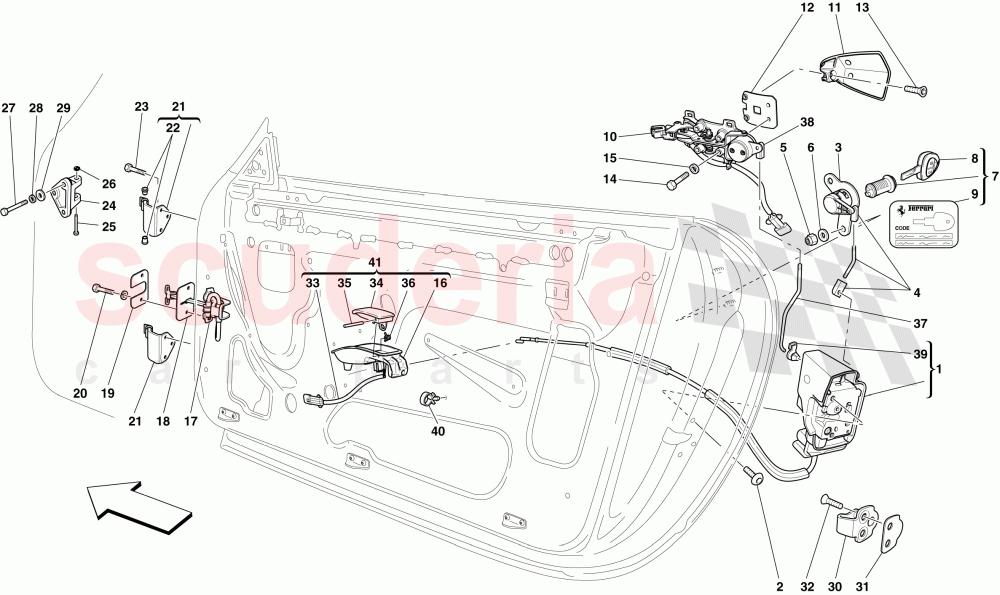

DOORS - OPENING MECHANISM AND HINGES of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67935400
RH DOOR LOCK 		$304.86 1
1 67935500
LH DOOR LOCK 		$304.86 1
2 67077900
SCREW 		$0.63 6
3 67671200
RH BLOCK MOUNT 		$77.00 1
3 67671300
LH BLOCK MOUNT 		$80.36 1
4 67627700
RH TIE-ROD 		$69.92 1
4 67627800
LH TIE-ROD 		$69.92 1
5 14059114
NUT
IN STOCK 		$0.13 4
6 14446924
WASHER
IN STOCK 		$0.31 4
7 213625
COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS 		$1,235.52 1
7 223867
COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS
Enhanced version 		$1,347.85 1
8 207548
UNCODED KEY
Not for "OTO" 		$609.73 (12.2% off) 1
8 227551
UNCODED KEY
Red; Applicable for "OTO" 		$641.82 (27.5% off) 1
9 153603
CODE CARD FERRARI 		$62.56 (10.8% off) 1
10 68127300
RH EXTERNAL HANDLE 		$465.32 1
10 68127400
LH EXTERNAL HANDLE 		$465.32 1
11 66866410
RH EXTERNAL DOOR HANDLE 		$101.07 1
11 80993100
RH EXTERNAL DOOR HANDLE
Satin effect chrome; Applicable for "OTO"; Optional; No longer supplied 		- 1 Enquire
11 66866510
LH EXTERNAL DOOR HANDLE 		$101.07 1
11 80993200
LH EXTERNAL DOOR HANDLE
Satin effect chrome; Applicable for "OTO"; Optional; No longer supplied 		- 1 Enquire
12 64659500
PLATE 		$33.68 2
13 64214600
SCREW 		$11.31 2
14 10445224
SCREW 		$0.06 8
15 13550077
WASHER 		$3.36 8
16 67185900
RH INTERNAL DOOR HANDLE BODY
Not for GD; No longer supplied 		$94.66 1
16 68978800
RH INTERNAL DOOR HANDLE
Burnished; Optional; Not for GD; No longer supplied 		$465.32 1
16 67930000
RH INTERNAL DOOR HANDLE BODY
Applicable for GD; No longer supplied 		- 1 Enquire
16 68979900
RH INTERNAL DOOR HANDLE
Burnished; Optional; Applicable for GD; No longer supplied 		$385.09 1
16 67929400
LH INTERNAL DOOR HANDLE BODY
Not for GD; No longer supplied 		$94.66 1
16 68979300
LH INTERNAL DOOR HANDLE
Burnished; Optional; Not for GD; No longer supplied 		$401.13 1
16 67186000
LH INTERNAL DOOR HANDLE BODY
Applicable for GD; No longer supplied 		$94.66 1
16 69540100
LH INTERNAL DOOR HANDLE
Burnished; Optional; Applicable for GD; No longer supplied 		$385.09 1
17 67499800
DOOR RETAINER TIE-ROD 		$65.77 2
18 67440800
GASKET 		$24.05 2
19 67440700
PLATE 		$32.08 2
20 13027024
SCREW M6 X 16MM
IN STOCK 		$0.21 (79% off) 4
21 66996500
MOBILE HINGE 		$94.66 4
22 62825300
BUSHING 		$33.68 (30.8% off) 8
23 13839224
SCREW 		$2.82 12
24 66996400
FIXED HINGE 		$176.49 4
25 67332700
PIN 		$27.26 4
26 11087974
SNAP RING
IN STOCK 		$0.19 (61.2% off) 4
27 67624700
SCREW
L. 137 mm 		$10.13 8
27 67624800
SCREW
L. 152 mm 		$13.10 2
27 67624900
SCREW
L. 172 mm 		$14.28 2
28 12628904
WASHER 		$0.23 12
29 12602474
WASHER 		$0.10 12
30 85321500
STRIKER PLATE 		- 2 Enquire
31 67853600
SHIM 		$14.59 2
32 14442434
SCREW 		$0.58 4
33 63859200
MICROSWITCH
No longer supplied 		$272.77 (22% off) 2
34 67186100
RH DOOR RELEASE LEVER
No longer supplied 		$68.98 1
34 68979000
RH DOOR RELEASE LEVER
Burnished; Optional; No longer supplied 		- 1 Enquire
34 67620800
LH DOOR RELEASE LEVER
No longer supplied 		$72.19 1
34 68979500
LH DOOR RELEASE LEVER
Burnished; Optional; No longer supplied 		- 1 Enquire
35 67186200
PIN
No longer supplied 		$3.83 2
36 67186300
LEVER RETURN SPRING
No longer supplied 		$1.77 2
37 67627300
RH TIE-ROD 		$67.38 1
37 67627400
LH TIE-ROD 		$78.61 1
38 62794000
JOINT 		$1.30 (34% off) 2
39 248061
CLIP
IN STOCK 		$2.14 2
40 140727
CLIP
14.5 X 3
IN STOCK 		$0.26 (65.3% off) 2
41 66866600
RH INTERNAL DOOR HANDLE
Not for GD 		$272.77 1
41 68978800
RH INTERNAL DOOR HANDLE
Burnished; Optional; Not for GD 		$465.32 1
41 67929900
RH INTERNAL DOOR HANDLE
Applicable for GD 		$401.13 1
41 68979900
RH INTERNAL DOOR HANDLE
Burnished; Optional; Applicable for GD 		$385.09 1
41 81147100
RH INTERNAL DOOR HANDLE
Dark grey; Applicable for "60°anniversario" 		- 1 Enquire
41 81147200
RH INTERNAL DOOR HANDLE
Micalised Ruby; Applicable for "60°anniversario" 		- 1 Enquire
41 81175100
RH INTERNAL DOOR HANDLE
Dark grey; Applicable for "60°anniversario"; Applicable for GD 		$304.86 1
41 81175200
RH INTERNAL DOOR HANDLE
Micalised Ruby; Applicable for "60°anniversario"; Applicable for GD 		- 1 Enquire
41 67929300
LH INTERNAL DOOR HANDLE
Not for GD 		$272.77 1
41 68979300
LH INTERNAL DOOR HANDLE
Burnished; Optional; Not for GD 		$401.13 1
41 66866700
LH INTERNAL DOOR HANDLE
Applicable for GD 		$208.58 1
41 69540100
LH INTERNAL DOOR HANDLE
Burnished; Optional; Applicable for GD 		$385.09 1
41 81147300
LH INTERNAL DOOR HANDLE
Dark grey; Applicable for "60°anniversario" 		- 1 Enquire
41 81147400
LH INTERNAL DOOR HANDLE
Micalised Ruby; Applicable for "60°anniversario" 		- 1 Enquire
41 81174900
LH INTERNAL DOOR HANDLE
Dark grey; Applicable for "60°anniversario"; Applicable for GD 		$304.86 1
41 81175000
LH INTERNAL DOOR HANDLE
Micalised Ruby; Applicable for "60°anniversario"; Applicable for GD 		- 1 Enquire
