Structures And Elements, Centre Of Vehicle

Ferrari 612 Sessanta

Find Your Part

Ferrari 612 Sessanta - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985213753 TUNNEL Enquire To Order
Photo Part No Description Price (each) Stock
985196343 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
985199021 UNDER-EXHAUST PLATE Enquire To Order
Photo Part No Description Price (each) Stock
985187276 STRUCTURE CONNECTOR PLATE Enquire To Order
Photo Part No Description Price (each) Stock
985187857 RH CENTRAL LATERAL WALL Enquire To Order
985221574 RH CENTRAL LATERAL WALL Enquire To Order
985202637 RH CENTRAL LATERAL WALL Enquire To Order
Photo Part No Description Price (each) Stock
985197205 LH CENTRAL LATERAL WALL Enquire To Order
985221573 LH CENTRAL LATERAL WALL Enquire To Order
Photo Part No Description Price (each) Stock
985187320 RH SILL BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
985187319 LH SILL BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
985213747 RH SILL BRACKET WITH REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
985213748 LH SILL BRACKET WITH REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
67438111 RH REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
67438211 LH REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
67162600 RH STRIKER REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
985200208 RH EXTERNAL REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
985199925 LH EXTERNAL REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
66996800 RH FASTENER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
66996900 LH FASTENER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
67157711 RH LATERAL PLATE Enquire To Order
Photo Part No Description Price (each) Stock
67157811 LH LATERAL PLATE Enquire To Order
Photo Part No Description Price (each) Stock
985187284 RH SILL Enquire To Order
Photo Part No Description Price (each) Stock
985187283 LH SILL Enquire To Order
Photo Part No Description Price (each) Stock
209301 CORE FOR REPAIR Enquire To Order
Photo Part No Description Price (each) Stock
204447 R.H. REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
204443 L.H. REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
985205069 FRONT RH FIREWALL FOOTREST Enquire To Order
985218157 FRONT RH FIREWALL FOOTREST Enquire To Order
985222146 FRONT RH FIREWALL FOOTREST Enquire To Order
Photo Part No Description Price (each) Stock
186750 L.H. FRONT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
187287 FRONT COUPLING Enquire To Order
Photo Part No Description Price (each) Stock
192814 LOWER PIN Enquire To Order
Photo Part No Description Price (each) Stock
985192815 BENT INSERT Enquire To Order
Photo Part No Description Price (each) Stock
985187338 RH ROOF BEAM JOINT Enquire To Order
Photo Part No Description Price (each) Stock
985187337 LH ROOF BEAM JOINT Enquire To Order
Photo Part No Description Price (each) Stock
985213755 COMPLETE RH FRONT DOOR PILLAR Enquire To Order
Photo Part No Description Price (each) Stock
985213756 COMPLETE LH FRONT DOOR PILLAR Enquire To Order
Photo Part No Description Price (each) Stock
67925900 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
67615000 RH END-PIECE Enquire To Order
Photo Part No Description Price (each) Stock
68114400 LH END-PIECE Enquire To Order
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW Enquire To Order
Photo Part No Description Price (each) Stock
69120500 FIRE EXTINGUISHER FASTENER BRACKET FRAME Enquire To Order
69860400 FIRE EXTINGUISHER FASTENER BRACKET FRAME Enquire To Order
Photo Part No Description Price (each) Stock
199969 RH REAR INTERNAL REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
199968 LH REAR INTERNAL REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
196212 COMPL. REAR CONNECTOR PIECE FOR RH SILL Enquire To Order
Photo Part No Description Price (each) Stock
196210 COMPL. REAR CONNECTOR PIECE FOR LH SILL Enquire To Order
View All

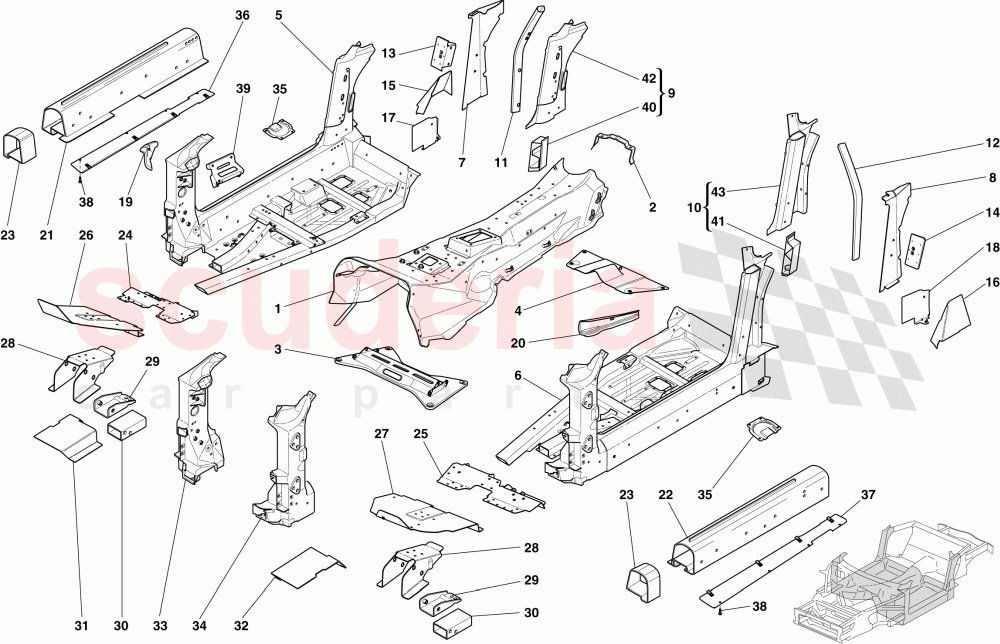

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985213753
TUNNEL 		- 1 Enquire
2 985196343
BRACKET 		- 1 Enquire
3 985199021
UNDER-EXHAUST PLATE 		- 1 Enquire
4 985187276
STRUCTURE CONNECTOR PLATE 		- 1 Enquire
5 985187857
RH CENTRAL LATERAL WALL
; Not for enhanced version; Not for USA 		- 1 Enquire
5 985221574
RH CENTRAL LATERAL WALL
; Enhanced version; Not for USA 		- 1 Enquire
5 985202637
RH CENTRAL LATERAL WALL
; Applicable for USA 		- 1 Enquire
6 985197205
LH CENTRAL LATERAL WALL
; Not for enhanced version 		- 1 Enquire
6 985221573
LH CENTRAL LATERAL WALL 		- 1 Enquire
7 985187320
RH SILL BRACKET 		- 1 Enquire
8 985187319
LH SILL BRACKET 		- 1 Enquire
9 985213747
RH SILL BRACKET WITH REINFORCEMENT
; No longer supplied 		- 1 Enquire
10 985213748
LH SILL BRACKET WITH REINFORCEMENT
; No longer supplied 		- 1 Enquire
11 67438111
RH REINFORCEMENT 		- 1 Enquire
12 67438211
LH REINFORCEMENT 		- 1 Enquire
13 67162600
RH STRIKER REINFORCEMENT 		- 1 Enquire
14 67164300
LH STRIKER REINFORCEMENT 		- 1 Enquire
15 985200208
RH EXTERNAL REINFORCEMENT 		- 1 Enquire
16 985199925
LH EXTERNAL REINFORCEMENT 		- 1 Enquire
17 66996800
RH FASTENER PLATE 		- 1 Enquire
18 66996900
LH FASTENER PLATE 		- 1 Enquire
19 67157711
RH LATERAL PLATE 		- 1 Enquire
20 67157811
LH LATERAL PLATE 		- 1 Enquire
21 985187284
RH SILL 		- 1 Enquire
22 985187283
LH SILL 		- 1 Enquire
23 209301
CORE FOR REPAIR 		- 2 Enquire
24 204447
R.H. REINFORCEMENT 		- 1 Enquire
25 204443
L.H. REINFORCEMENT 		- 1 Enquire
26 985205069
FRONT RH FIREWALL FOOTREST
; Applicable until depletion 		- 1 Enquire
26 985218157
FRONT RH FIREWALL FOOTREST
; Not for GD; Applicable after depletion of 985205069 		- 1 Enquire
26 985222146
FRONT RH FIREWALL FOOTREST
Applicable for GD; Applicable after depletion of 985205069 		- 1 Enquire
27 186750
L.H. FRONT SHIELD 		- 1 Enquire
28 187287
FRONT COUPLING 		- 2 Enquire
29 192814
LOWER PIN 		- 2 Enquire
30 985192815
BENT INSERT 		- 2 Enquire
31 985187338
RH ROOF BEAM JOINT 		- 1 Enquire
32 985187337
LH ROOF BEAM JOINT 		- 1 Enquire
33 985213755
COMPLETE RH FRONT DOOR PILLAR 		- 1 Enquire
34 985213756
COMPLETE LH FRONT DOOR PILLAR 		- 1 Enquire
35 67925900
BRACKET 		- 2 Enquire
36 67615000
RH END-PIECE 		- 1 Enquire
37 68114400
LH END-PIECE 		- 1 Enquire
38 88831000
GRUB SCREW 		- 8 Enquire
39 69120500
FIRE EXTINGUISHER FASTENER BRACKET FRAME
Not for GD 		- 1 Enquire
39 69860400
FIRE EXTINGUISHER FASTENER BRACKET FRAME
Applicable for GD 		- 1 Enquire
40 199969
RH REAR INTERNAL REINFORCEMENT 		- 1 Enquire
41 199968
LH REAR INTERNAL REINFORCEMENT 		- 1 Enquire
42 196212
COMPL. REAR CONNECTOR PIECE FOR RH SILL 		- 1 Enquire
43 196210
COMPL. REAR CONNECTOR PIECE FOR LH SILL 		- 1 Enquire
