Name: LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP
Rating: 5.0 (1 reviews)

LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP of Ferrari Ferrari 599 SA Aperta

View All

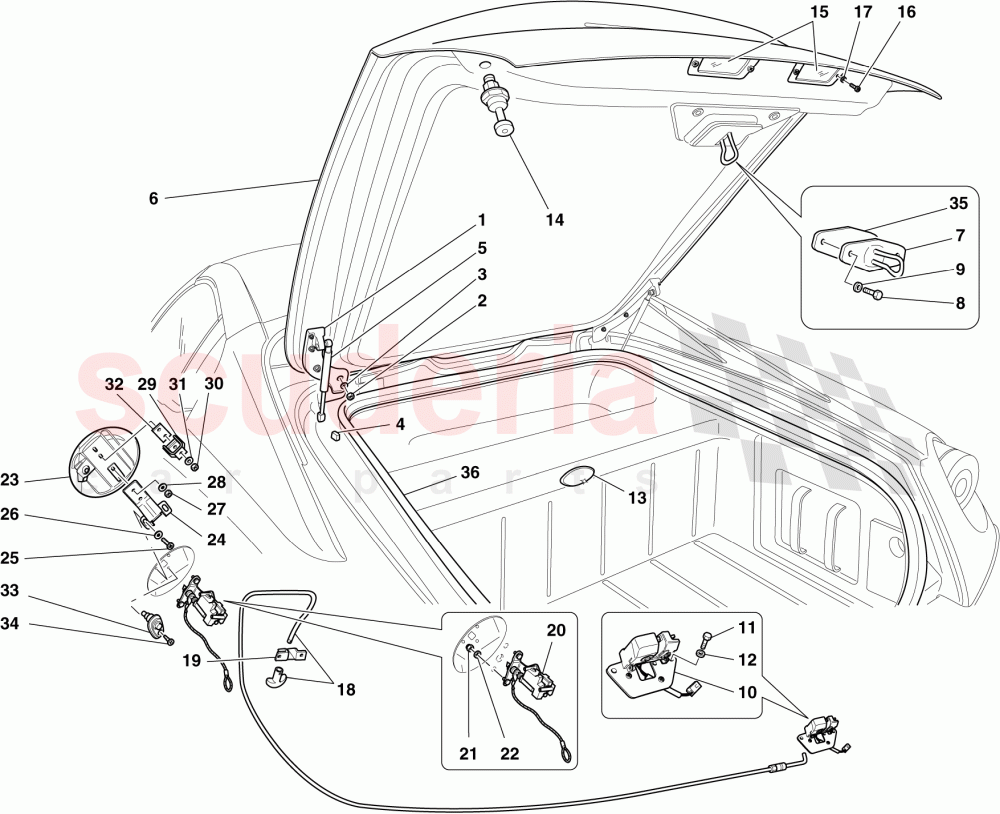

Ferrari 599 SA Aperta - LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83543000	COMPLETE RH HINGE	$706.01	To Order
	83543100	COMPLETE LH HINGE	$706.01	To Order

Photo	Part No	Description	Price (each)	Stock
	14066017	NUT	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	12646704	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	67625300	RUBBER PAD	$3.47	To Order

Photo	Part No	Description	Price (each)	Stock
	83648700	GAS STRUT	$359.98	To Order

Photo	Part No	Description	Price (each)	Stock
	83119411	LUGGAGE COMPARTMENT LID	$10,393.31	To Order

Photo	Part No	Description	Price (each)	Stock
	69242700	STRIKER PLATE	$101.75	To Order

Photo	Part No	Description	Price (each)	Stock
	10902524	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order
	12601277	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	69367900	Luggage Compartment Lid Lock	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	16132314	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67094700	REAR LIGHT UNIT	$25.66	To Order
	84163800	LIGHT UNIT	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	81805000	VIBRATION DAMPER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186180	REAR LICENSE PLATE LIGHT	$79.13	To Order

Photo	Part No	Description	Price (each)	Stock
	15644175	Screw	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	69714600	LID SAFETY CABLE	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	69714700	BRACKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	67489500	ACTUATOR COMPLETE WITH BRACKET	$272.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14054077	NUT	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	67131911	FUEL FILLER FLAP COVER	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	67934900	FUEL FILLER FLAP HINGE	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	66057300	FUEL FILLER FLAP ROD	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	382500554	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153069	SWITCH	$7.07	To Order

Photo	Part No	Description	Price (each)	Stock
	15916977	SCREW	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	69242600	SHIM	$12.72	To Order

Photo	Part No	Description	Price (each)	Stock
	83335200	LID SEAL	$914.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	83543000	COMPLETE RH HINGE	83543000 COMPLETE RH HINGE	$706.01	1
1	83543100	COMPLETE LH HINGE	83543100 COMPLETE LH HINGE	$706.01	1
2	14066017	NUT	14066017 NUT	$2.84	6
3	12646704	WASHER	12646704 WASHER	$0.11	6
4	67625300	RUBBER PAD	67625300 RUBBER PAD	$3.47	1
5	83648700	GAS STRUT	83648700 GAS STRUT	$359.98 MSRP: ~~473.93~~ (24% off)	2
6	83119411	LUGGAGE COMPARTMENT LID	83119411 LUGGAGE COMPARTMENT LID	$10,393.31	1
7	69242700	STRIKER PLATE	69242700 STRIKER PLATE	$101.75	1
8	10902524	SCREW	10902524 SCREW	$0.15	2
9	860172	WASHER	860172 WASHER	-	2	Enquire
9	12601277	WASHER	12601277 WASHER	$0.05	2
10	69367900	Luggage Compartment Lid Lock	69367900 Luggage Compartment Lid Lock	$176.49 MSRP: ~~179.52~~ (1.7% off)	1
11	16132314	SCREW	16132314 SCREW	$0.28	2
12	860172	WASHER	860172 WASHER	-	2	Enquire
13	67094700	REAR LIGHT UNIT	67094700 REAR LIGHT UNIT	$25.66	1
13	84163800	LIGHT UNIT	84163800 LIGHT UNIT With chrome bezel	$43.31 MSRP: ~~54.70~~ (20.8% off)	1
14	81805000	VIBRATION DAMPER BLOCK	81805000 VIBRATION DAMPER BLOCK	-	2	Enquire
15	186180	REAR LICENSE PLATE LIGHT	186180 REAR LICENSE PLATE LIGHT	$79.13 MSRP: ~~86.62~~ (8.6% off)	2
16	15644175	Screw	15644175 Screw	$0.76	4
17	12638124	WASHER	12638124 WASHER	$0.05 MSRP: ~~0.70~~ (92.9% off)	4
18	69714600	LID SAFETY CABLE	69714600 LID SAFETY CABLE	$91.45	1
19	69714700	BRACKET	69714700 BRACKET	$208.58	1
20	67489500	ACTUATOR COMPLETE WITH BRACKET	67489500 ACTUATOR COMPLETE WITH BRACKET	$272.34	1
21	14054077	NUT	14054077 NUT	$0.60	2
22	12637824	WASHER	12637824 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
23	67131911	FUEL FILLER FLAP COVER	67131911 FUEL FILLER FLAP COVER	$545.55	1
24	67934900	FUEL FILLER FLAP HINGE	67934900 FUEL FILLER FLAP HINGE	$481.36	1
25	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	$1.10 MSRP: ~~1.45~~ (24.1% off)	2
26	12604178	Washer	12604178 Washer	-	2	Enquire
27	14084111	NUT	14084111 NUT	$0.05	2
28	62769800	WASHER	62769800 WASHER Carbon version	$0.23 MSRP: ~~0.30~~ (23.3% off)	2
29	66057300	FUEL FILLER FLAP ROD	66057300 FUEL FILLER FLAP ROD	$20.84	1
30	14084111	NUT	14084111 NUT	$0.05	2
31	62769800	WASHER	62769800 WASHER Carbon version	$0.23 MSRP: ~~0.30~~ (23.3% off)	2
32	382500554	SHIM	382500554 SHIM	-	2	Enquire
33	153069	SWITCH	153069 SWITCH	$7.07 MSRP: ~~8.00~~ (11.6% off)	1
34	15916977	SCREW	15916977 SCREW	$1.05	1
35	69242600	SHIM	69242600 SHIM	$12.72	5
36	83335200	LID SEAL	83335200 LID SEAL	$914.60	1
