Name: FRONT SEAT - TRIM AND INTERNAL COMPONENTS
Rating: 5.0 (1 reviews)

FRONT SEAT - TRIM AND INTERNAL COMPONENTS of Ferrari Ferrari 599 SA Aperta

View All

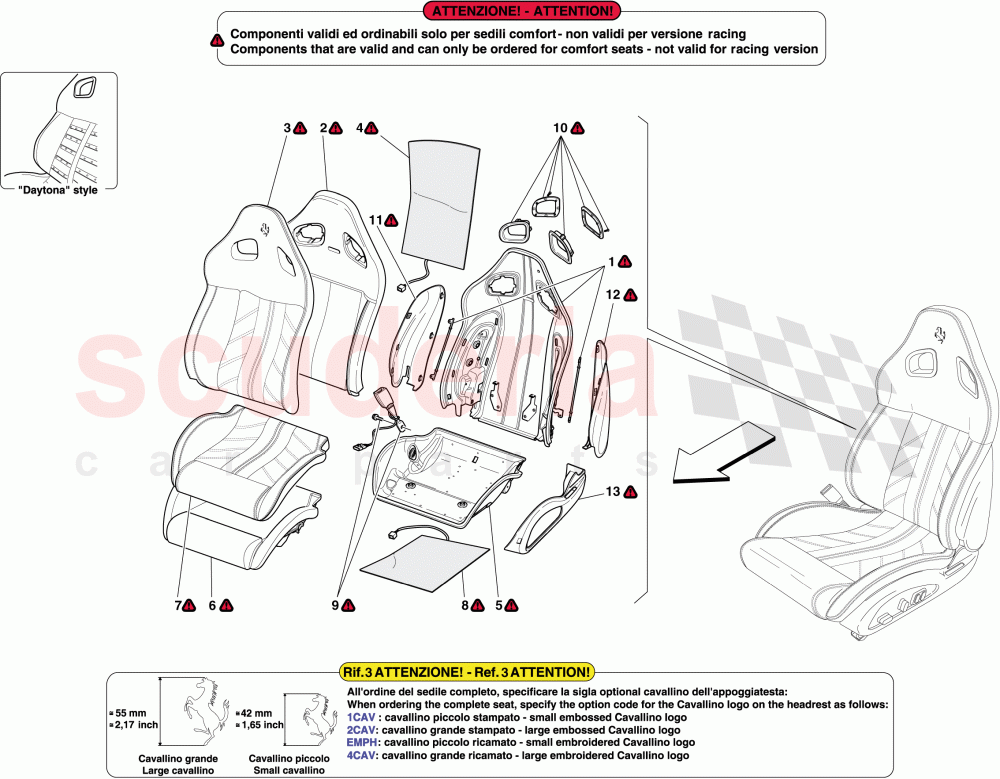

Ferrari 599 SA Aperta - FRONT SEAT - TRIM AND INTERNAL COMPONENTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	82038700	RH BACKREST STRUCTURE WITH BARS	Enquire	To Order
	82038900	LH BACKREST STRUCTURE WITH BARS	Enquire	To Order
	82655100	RH BACKREST STRUCTURE WITH BARS	$6,758.55	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80998800	BACKREST PADDING	$696.61	To Order
	80999200	BACKREST PADDING	$684.42	To Order

Photo	Part No	Description	Price (each)	Stock
	83649800	BACKREST COVER	Enquire	To Order
	83650000	BACKREST COVER	Enquire	To Order
	80219500	BACKREST LINING	$3,453.14	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	223018	BACKREST HEATING PAD	$497.41	To Order

Photo	Part No	Description	Price (each)	Stock
	66220300	CUSHION STRUCTURE	$754.15	To Order
	65962800	CUSHION STRUCTURE	$754.15	To Order

Photo	Part No	Description	Price (each)	Stock
	66220400	CUSHION PADDING	$846.29	To Order
	65962900	CUSHION PADDING	$739.44	To Order

Photo	Part No	Description	Price (each)	Stock
	83649900	CUSHION COVER	Enquire	To Order
	83650100	CUSHION COVER	$2,438.75	To Order
	80219600	CUSHION COVER	$3,234.79	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	223019	CUSHION HEATING PAD	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	80217600	SEAT BELT BUCKLE STALK	$109.10	To Order

Photo	Part No	Description	Price (each)	Stock
	69991200	BELT LOOP KIT	$1,123.20	To Order

Photo	Part No	Description	Price (each)	Stock
	69471400	RH CUSHION SIDE PANEL WITH CLIPS	$1,075.06	To Order

Photo	Part No	Description	Price (each)	Stock
	69471500	LH CUSHION SIDE PANEL WITH CLIPS	$1,283.66	To Order

Photo	Part No	Description	Price (each)	Stock
	80957200	RH CUSHION SHELL	$1,633.46	To Order
	80957300	RH CUSHION SHELL	$1,633.46	To Order
	80957000	LH CUSHION SHELL	$1,633.46	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	82038700	RH BACKREST STRUCTURE WITH BARS	82038700 RH BACKREST STRUCTURE WITH BARS Leather trimmed	-	1	Enquire
1	82038900	LH BACKREST STRUCTURE WITH BARS	82038900 LH BACKREST STRUCTURE WITH BARS Leather trimmed	-	1	Enquire
1	82655100	RH BACKREST STRUCTURE WITH BARS	82655100 RH BACKREST STRUCTURE WITH BARS Carbon	$6,758.55	1
1	82655400	LH BACKREST STRUCTURE WITH BARS	82655400 LH BACKREST STRUCTURE WITH BARS Carbon	$6,758.55	1
2	80998800	BACKREST PADDING	80998800 BACKREST PADDING LH seat	$696.61	1
2	80999200	BACKREST PADDING	80999200 BACKREST PADDING RH seat	$684.42	1
3	83649800	BACKREST COVER	83649800 BACKREST COVER Standard; RH seat; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV	-	1	Enquire
3	83650000	BACKREST COVER	83650000 BACKREST COVER Standard; LH seat; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV	-	1	Enquire
3	80219500	BACKREST LINING	80219500 BACKREST LINING Daytona; RH seat; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV	$3,453.14	1
3	80997500	BACKREST LINING	80997500 BACKREST LINING Daytona; LH seat; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV	-	1	Enquire
4	223018	BACKREST HEATING PAD	223018 BACKREST HEATING PAD Full electric	$497.41	2
5	66220300	CUSHION STRUCTURE	66220300 CUSHION STRUCTURE RH seat	$754.15	1
5	65962800	CUSHION STRUCTURE	65962800 CUSHION STRUCTURE LH seat	$754.15	1
6	66220400	CUSHION PADDING	66220400 CUSHION PADDING RH seat	$846.29	1
6	65962900	CUSHION PADDING	65962900 CUSHION PADDING LH seat	$739.44	1
7	83649900	CUSHION COVER	83649900 CUSHION COVER Standard; RH seat; INTI; STC1; STC2; PIP2	-	1	Enquire
7	83650100	CUSHION COVER	83650100 CUSHION COVER Standard; LH seat; INTI; STC1; STC2; PIP2	$2,438.75	1
7	80219600	CUSHION COVER	80219600 CUSHION COVER Daytona; RH seat; INTI; STC1; STC2; PIP2; STP1; STP2	$3,234.79	1
7	80997600	CUSHION COVER	80997600 CUSHION COVER Daytona; LH seat; INTI; STC1; STC2; PIP2; STP1; STP2	-	1	Enquire
8	223019	CUSHION HEATING PAD	223019 CUSHION HEATING PAD Full electric	$609.73	2
9	80217600	SEAT BELT BUCKLE STALK	80217600 SEAT BELT BUCKLE STALK	$109.10	2
10	69991200	BELT LOOP KIT	69991200 BELT LOOP KIT	$1,123.20	2
11	69471400	RH CUSHION SIDE PANEL WITH CLIPS	69471400 RH CUSHION SIDE PANEL WITH CLIPS	$1,075.06	2
12	69471500	LH CUSHION SIDE PANEL WITH CLIPS	69471500 LH CUSHION SIDE PANEL WITH CLIPS	$1,283.66	2
13	80957200	RH CUSHION SHELL	80957200 RH CUSHION SHELL Standard	$1,633.46	1
13	80957300	RH CUSHION SHELL	80957300 RH CUSHION SHELL Full electric	$1,633.46	1
13	80957000	LH CUSHION SHELL	80957000 LH CUSHION SHELL Standard	$1,633.46	1
13	80957100	LH CUSHION SHELL	80957100 LH CUSHION SHELL Full electric	$1,633.46	1

Front Seat - Trim And Internal Components

Ferrari 599 SA Aperta

Ferrari 599 SA Aperta - FRONT SEAT - TRIM AND INTERNAL COMPONENTS
