LUGGAGE COMPARTMENT INSULATION of Ferrari Ferrari 599 SA Aperta

View All

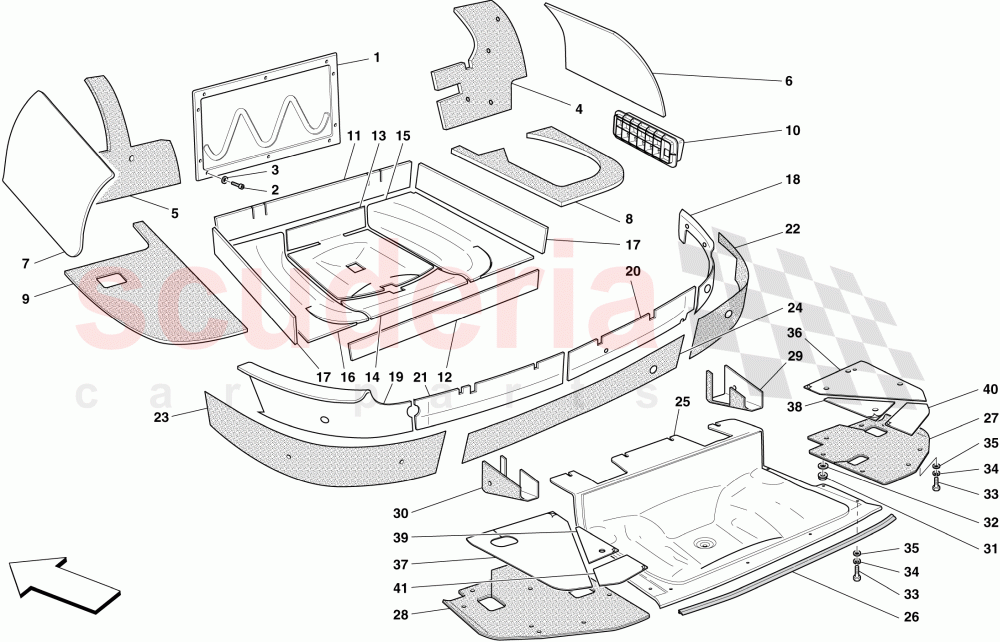

Ferrari 599 SA Aperta - LUGGAGE COMPARTMENT INSULATION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	69356700	SHIELD	Enquire	To Order
	68570600	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272011	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80210200	RH INSULATION ON WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80210300	LH INSULATION ON WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80210400	RH FENDER INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80210500	LH FENDER INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80210600	RH LATERAL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80210700	LH LATERAL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67163000	AIR VENT BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80210800	FRONT SPARE WHEEL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80210900	INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80211000	SPARE WHEEL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80211100	REAR INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80211200	RH LATERAL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80211300	LH LATERAL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80211400	LATERAL SPARE WHEEL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80211500	RH REAR INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80211600	LH REAR INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80211700	RH VERTICAL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80211800	LH VERTICAL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80211900	RH INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80212000	LH INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80212100	INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69715700	COMPLETE SPARE WHEEL HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68315100	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80212400	RH SHELF INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80212500	LH SHELF INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80212600	RH INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80212700	LH INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902380	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80212800	RH LOWER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80212900	LH LOWER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80213000	LOWER RH INNER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80213100	LOWER LH INNER SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80213200	LOWER RH REAR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80213300	LOWER LH REAR SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	69356700	SHIELD	69356700 SHIELD Version with spare wheel	-	1	Enquire
1	68570600	SHIELD	68570600 SHIELD Version without spare wheel	-	1	Enquire
2	13272011	SCREW	13272011 SCREW	-	10	Enquire
3	62769800	WASHER	62769800 WASHER	-	10	Enquire
4	80210200	RH INSULATION ON WHEELHOUSE	80210200 RH INSULATION ON WHEELHOUSE	-	1	Enquire
5	80210300	LH INSULATION ON WHEELHOUSE	80210300 LH INSULATION ON WHEELHOUSE	-	1	Enquire
6	80210400	RH FENDER INSULATION	80210400 RH FENDER INSULATION	-	1	Enquire
7	80210500	LH FENDER INSULATION	80210500 LH FENDER INSULATION	-	1	Enquire
8	80210600	RH LATERAL INSULATION	80210600 RH LATERAL INSULATION	-	1	Enquire
9	80210700	LH LATERAL INSULATION	80210700 LH LATERAL INSULATION	-	1	Enquire
10	67163000	AIR VENT BOX	67163000 AIR VENT BOX	-	1	Enquire
11	80210800	FRONT SPARE WHEEL INSULATION	80210800 FRONT SPARE WHEEL INSULATION	-	1	Enquire
12	80210900	INSULATION	80210900 INSULATION	-	1	Enquire
13	80211000	SPARE WHEEL INSULATION	80211000 SPARE WHEEL INSULATION	-	1	Enquire
14	80211100	REAR INSULATION	80211100 REAR INSULATION	-	1	Enquire
15	80211200	RH LATERAL INSULATION	80211200 RH LATERAL INSULATION	-	1	Enquire
16	80211300	LH LATERAL INSULATION	80211300 LH LATERAL INSULATION	-	1	Enquire
17	80211400	LATERAL SPARE WHEEL INSULATION	80211400 LATERAL SPARE WHEEL INSULATION	-	2	Enquire
18	80211500	RH REAR INSULATION	80211500 RH REAR INSULATION	-	1	Enquire
19	80211600	LH REAR INSULATION	80211600 LH REAR INSULATION	-	1	Enquire
20	80211700	RH VERTICAL INSULATION	80211700 RH VERTICAL INSULATION	-	1	Enquire
21	80211800	LH VERTICAL INSULATION	80211800 LH VERTICAL INSULATION	-	1	Enquire
22	80211900	RH INSULATION	80211900 RH INSULATION	-	1	Enquire
23	80212000	LH INSULATION	80212000 LH INSULATION	-	1	Enquire
24	80212100	INSULATION	80212100 INSULATION	-	1	Enquire
25	69715700	COMPLETE SPARE WHEEL HEAT SHIELD	69715700 COMPLETE SPARE WHEEL HEAT SHIELD	-	1	Enquire
26	68315100	GASKET	68315100 GASKET	-	1	Enquire
27	80212400	RH SHELF INSULATION	80212400 RH SHELF INSULATION	-	1	Enquire
28	80212500	LH SHELF INSULATION	80212500 LH SHELF INSULATION	-	1	Enquire
29	80212600	RH INSULATION	80212600 RH INSULATION	-	1	Enquire
30	80212700	LH INSULATION	80212700 LH INSULATION	-	1	Enquire
31	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
32	12648978	WASHER	12648978 WASHER	-	2	Enquire
33	10902380	SCREW	10902380 SCREW	-	14	Enquire
34	127494	WASHER	127494 WASHER	-	14	Enquire
35	12648978	WASHER	12648978 WASHER	-	14	Enquire
36	80212800	RH LOWER SHIELD	80212800 RH LOWER SHIELD	-	1	Enquire
37	80212900	LH LOWER SHIELD	80212900 LH LOWER SHIELD	-	1	Enquire
38	80213000	LOWER RH INNER SHIELD	80213000 LOWER RH INNER SHIELD	-	1	Enquire
39	80213100	LOWER LH INNER SHIELD	80213100 LOWER LH INNER SHIELD	-	1	Enquire
40	80213200	LOWER RH REAR SHIELD	80213200 LOWER RH REAR SHIELD	-	1	Enquire
41	80213300	LOWER LH REAR SHIELD	80213300 LOWER LH REAR SHIELD	-	1	Enquire
