FRONT SEAT - GUIDES AND ADJUSTMENT MECHANISMS of Ferrari Ferrari 599 SA Aperta

View All

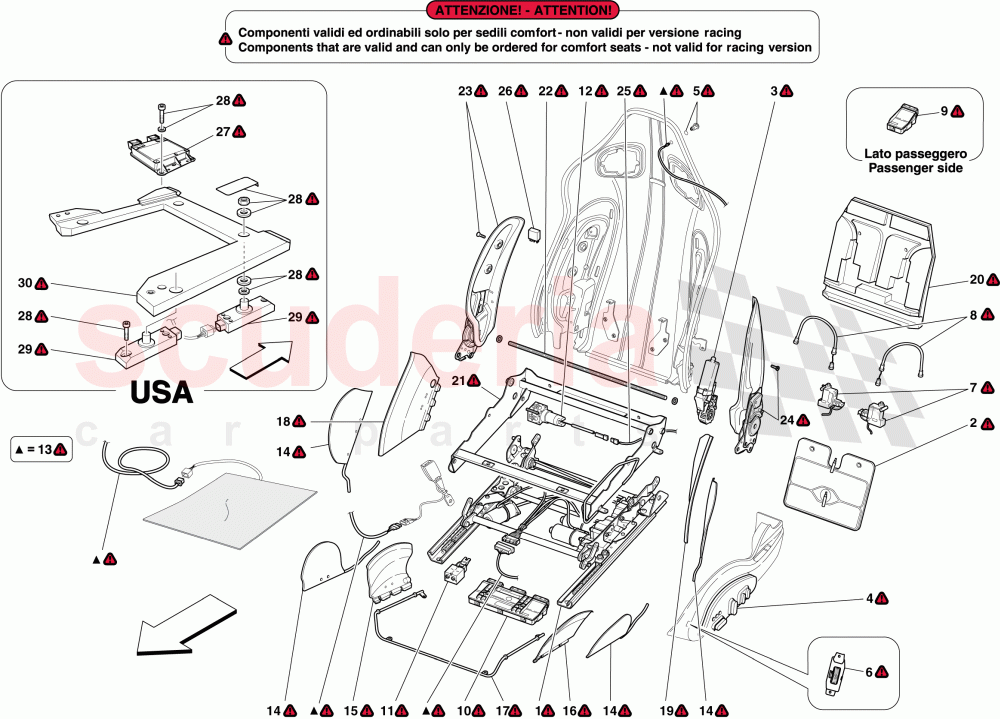

Ferrari 599 SA Aperta - FRONT SEAT - GUIDES AND ADJUSTMENT MECHANISMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65969900	LH ADJUSTMENT ASSEMBLY	Enquire	To Order
	66220500	RH ADJUSTMENT ASSEMBLY	Enquire	To Order
	66172100	LH ADJUSTMENT ASSEMBLY	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	69480100	LUMBAR SUPPORT MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222975	BACKREST ADJUSTER MOTOR	Enquire	To Order
	231032	BACKREST ADJUSTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69474800	RH BUTTON PANEL	Enquire	To Order
	69474900	RH BUTTON PANEL	Enquire	To Order
	69475100	LH BUTTON PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	222977	BACKREST TIPPER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228929	LH DIGITAL HEATING CONTROL	Enquire	To Order
	228926	RH ANALOGUE HEATING CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222976	Actuator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69476500	BOWDEN CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	230559	HEATED SEAT ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221681	ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80183900	ECU COMPLETE WITH SOLENOID VALVES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68646500	ELECTRO-PNEUMATIC COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222980	SEAT WIRING HARNESSES	Enquire	To Order
	222981	SEAT WIRING HARNESSES	Enquire	To Order
	231110	SEAT WIRING HARNESSES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68644600	PNEUMATIC BLADDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66857500	RH FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66857200	LH FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80999000	RH FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80998900	LH FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69476400	FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66839800	RH SEAT CUSHION FRAME	Enquire	To Order
	66832900	LH SEAT CUSHION FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69476600	BACKREST ADJUSTER SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82040200	RH BACKREST SIDE PANEL COMPL. WITH JOINT + SCREWS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82040300	LH BACKREST SIDE PANEL COMPL. WITH JOINT + SCREWS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68644700	PIPE KIT FOR BACKREST BLADDERS	Enquire	To Order
	68645600	PIPE KIT FOR CUSHION BLADDERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231106	RELAY FOR ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203087	ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70001260	KIT OF FASTENERS FOR WEIGHT SENSOR FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205285	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69013500	SENSOR MOUNTING FRAME	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	65969900	LH ADJUSTMENT ASSEMBLY	65969900 LH ADJUSTMENT ASSEMBLY Standard	-	1	Enquire
1	66220500	RH ADJUSTMENT ASSEMBLY	66220500 RH ADJUSTMENT ASSEMBLY Standard	-	1	Enquire
1	66172100	LH ADJUSTMENT ASSEMBLY	66172100 LH ADJUSTMENT ASSEMBLY Full electric	-	1	Enquire
1	66220600	RH ADJUSTMENT ASSEMBLY	66220600 RH ADJUSTMENT ASSEMBLY Full electric	-	1	Enquire
2	69480100	LUMBAR SUPPORT MODULE	69480100 LUMBAR SUPPORT MODULE	-	2	Enquire
3	222975	BACKREST ADJUSTER MOTOR	222975 BACKREST ADJUSTER MOTOR With Hall effect sensor	-	2	Enquire
3	231032	BACKREST ADJUSTER MOTOR	231032 BACKREST ADJUSTER MOTOR Without Hall effect sensor	-	2	Enquire
4	69474800	RH BUTTON PANEL	69474800 RH BUTTON PANEL Standard	-	1	Enquire
4	69474900	RH BUTTON PANEL	69474900 RH BUTTON PANEL Full electric	-	1	Enquire
4	69475100	LH BUTTON PANEL	69475100 LH BUTTON PANEL Standard	-	1	Enquire
4	69475200	LH BUTTON PANEL	69475200 LH BUTTON PANEL Full electric	-	1	Enquire
5	222977	BACKREST TIPPER BUTTON	222977 BACKREST TIPPER BUTTON	-	2	Enquire
6	228929	LH DIGITAL HEATING CONTROL	228929 LH DIGITAL HEATING CONTROL	-	1	Enquire
6	228926	RH ANALOGUE HEATING CONTROL	228926 RH ANALOGUE HEATING CONTROL	-	1	Enquire
7	222976	Actuator	222976 Actuator	-	2	Enquire
8	69476500	BOWDEN CABLES	69476500 BOWDEN CABLES	-	2	Enquire
9	230559	HEATED SEAT ECU	230559 HEATED SEAT ECU Full electric	-	1	Enquire
10	221681	ECU	221681 ECU Full electric	-	1	Enquire
11	80183900	ECU COMPLETE WITH SOLENOID VALVES	80183900 ECU COMPLETE WITH SOLENOID VALVES x4 for full electric version	-	2	Enquire
12	68646500	ELECTRO-PNEUMATIC COMPRESSOR	68646500 ELECTRO-PNEUMATIC COMPRESSOR	-	2	Enquire
13	222980	SEAT WIRING HARNESSES	222980 SEAT WIRING HARNESSES Standard	-	1	Enquire
13	222981	SEAT WIRING HARNESSES	222981 SEAT WIRING HARNESSES Full electric	-	1	Enquire
13	231110	SEAT WIRING HARNESSES	231110 SEAT WIRING HARNESSES Full electric	-	1	Enquire
14	68644600	PNEUMATIC BLADDER	68644600 PNEUMATIC BLADDER	-	8	Enquire
15	66857500	RH FLAP	66857500 RH FLAP	-	2	Enquire
16	66857200	LH FLAP	66857200 LH FLAP	-	2	Enquire
17	69474300	COMPLETE ADJUSTER HINGE	69474300 COMPLETE ADJUSTER HINGE	-	2	Enquire
18	80999000	RH FLAP	80999000 RH FLAP	-	2	Enquire
19	80998900	LH FLAP	80998900 LH FLAP	-	2	Enquire
20	69476400	FILLER	69476400 FILLER	-	2	Enquire
21	66839800	RH SEAT CUSHION FRAME	66839800 RH SEAT CUSHION FRAME	-	1	Enquire
21	66832900	LH SEAT CUSHION FRAME	66832900 LH SEAT CUSHION FRAME	-	1	Enquire
22	69476600	BACKREST ADJUSTER SHAFT	69476600 BACKREST ADJUSTER SHAFT	-	2	Enquire
23	82040200	RH BACKREST SIDE PANEL COMPL. WITH JOINT + SCREWS	82040200 RH BACKREST SIDE PANEL COMPL. WITH JOINT + SCREWS	-	1	Enquire
24	82040300	LH BACKREST SIDE PANEL COMPL. WITH JOINT + SCREWS	82040300 LH BACKREST SIDE PANEL COMPL. WITH JOINT + SCREWS	-	1	Enquire
25	68644700	PIPE KIT FOR BACKREST BLADDERS	68644700 PIPE KIT FOR BACKREST BLADDERS	-	1	Enquire
25	68645600	PIPE KIT FOR CUSHION BLADDERS	68645600 PIPE KIT FOR CUSHION BLADDERS	-	1	Enquire
26	231106	RELAY FOR ACTUATOR	231106 RELAY FOR ACTUATOR	-	2	Enquire
27	203087	ECU	203087 ECU Weight sensors; Applicable for USA	-	1	Enquire
28	70001260	KIT OF FASTENERS FOR WEIGHT SENSOR FRAME	70001260 KIT OF FASTENERS FOR WEIGHT SENSOR FRAME Weight sensors; Applicable for USA	-	1	Enquire
29	205285	SENSOR	205285 SENSOR Weight sensors; Applicable for USA	-	4	Enquire
30	69013500	SENSOR MOUNTING FRAME	69013500 SENSOR MOUNTING FRAME Weight sensors; Request SAT authorisation; Applicable for USA	-	1	Enquire
