Ferrari 599 SA Aperta - INSTRUMENTATION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
269903 COMPL. DASHBOARD INSTRUMENTS $4,637.27 To Order
279882 COMPL. DASHBOARD INSTRUMENTS $7,608.99 To Order
269904 COMPL. DASHBOARD INSTRUMENTS $4,637.27 To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13273911 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
274008 LIGHT AND REAR VIEW MIRROR SWITCH MOUNTING PANEL $1,492.26 To Order
Photo Part No Description Price (each) Stock
83973300 AC CONTROL PANEL $4,269.82 To Order
83973400 AC CONTROL PANEL $4,269.82 To Order
Photo Part No Description Price (each) Stock
195849 Glove Compartment Open Button $85.03 IN STOCK
Photo Part No Description Price (each) Stock
191356 HAZARD LIGHT BUTTON $72.19 To Order
Photo Part No Description Price (each) Stock
210983 Fuel Filler Flap Release Button $77.00 IN STOCK
Photo Part No Description Price (each) Stock
210982 Luggage Compartment Lid Button $77.00 IN STOCK
Photo Part No Description Price (each) Stock
67433400 INTERNAL SURROUND $290.06 To Order
Photo Part No Description Price (each) Stock
237174 SUNLIGHT SENSOR $172.19 To Order
199212 SUNLIGHT SENSOR $153.10 To Order
Photo Part No Description Price (each) Stock
69156800 SENSOR FASTENER BRACKET $24.05 To Order
69716700 SENSOR FASTENER BRACKET $34.26 To Order
Photo Part No Description Price (each) Stock
13273911 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
235063 SHIM $10.10 To Order
235064 SHIM $12.82 To Order
235065 SHIM $17.63 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
191971 Door Lock/Unlock Buttons $176.49 IN STOCK
Photo Part No Description Price (each) Stock
245498 FRONT PARKING SENSOR DISABLE BUTTON $188.53 To Order
Photo Part No Description Price (each) Stock
55009108 INSTRUMENT PUSH BUTTON SET $256.72 IN STOCK
Photo Part No Description Price (each) Stock
69164800 BUTTON PANEL $62.56 To Order
Photo Part No Description Price (each) Stock
15686101 SCREW $0.19 IN STOCK
Photo Part No Description Price (each) Stock
69162100 UPPER DASHBOARD INSTRUMENTATION MOUNTING BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
13273977 SCREW $0.28 IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
260993 SET OF 3 F1 BUTTONS (LAUNCH-R-AUTO) $545.55 To Order
268674 SET OF 3 F1 BUTTONS (LAUNCH-R-AUTO) $465.32 To Order
Photo Part No Description Price (each) Stock
197158 12 V SOCKET $49.73 To Order
Photo Part No Description Price (each) Stock
84383200 12 V SOCKET CAP $1,042.97 To Order
Photo Part No Description Price (each) Stock
83642700 ANTI-LIFT SYSTEM DISABLE BUTTON $401.13 To Order
Photo Part No Description Price (each) Stock
83996600 SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
15956677 SCREW $8.88 To Order
Photo Part No Description Price (each) Stock
12639401 WASHER $0.02 To Order
View All

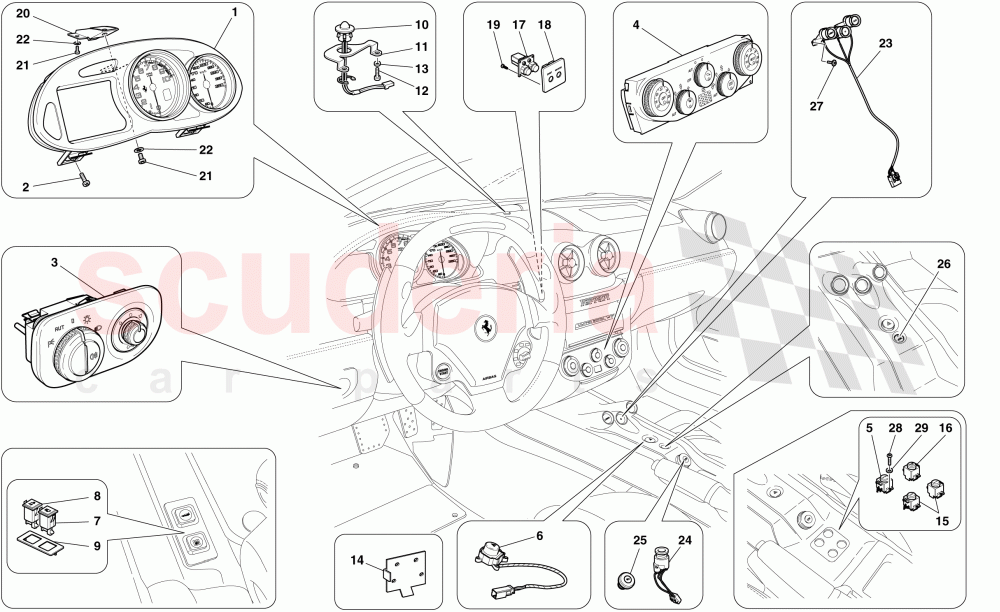

INSTRUMENTATION of Ferrari Ferrari 599 SA Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 269903
COMPL. DASHBOARD INSTRUMENTS
With odometer; Red rev counter; Not for USA, UK 		$4,637.27 1
1 279882
COMPL. DASHBOARD INSTRUMENTS
Carbon version; With odometer; Red rev counter; Not for USA, UK 		$7,608.99 1
1 269904
COMPL. DASHBOARD INSTRUMENTS
With odometer in miles; Red rev counter; Not for AUS, USA, CDN 		$4,637.27 1
1 279888
COMPL. DASHBOARD INSTRUMENTS
Carbon version; With odometer in miles; Red rev counter; Not for AUS, USA, CDN 		- 1 Enquire
1 270785
COMPL. DASHBOARD INSTRUMENTS
With odometer in miles; Red rev counter; Applicable for USA 		$4,629.25 1
1 279885
COMPL. DASHBOARD INSTRUMENTS
Carbon version; With odometer in miles; Red rev counter; Applicable for USA 		$6,523.39 1
1 269902
COMPL. DASHBOARD INSTRUMENTS
With odometer; Yellow rev counter; Not for USA, UK 		$4,637.27 1
1 279881
COMPL. DASHBOARD INSTRUMENTS
Carbon version; With odometer; Yellow rev counter; Not for USA, UK 		$7,608.99 1
1 269906
COMPL. DASHBOARD INSTRUMENTS
With odometer in miles; Yellow rev counter; Not for AUS, USA, CDN 		$4,637.27 1
1 279887
COMPL. DASHBOARD INSTRUMENTS
Carbon version; With odometer in miles; Yellow rev counter; Not for AUS, USA, CDN 		$7,608.99 1
1 270786
COMPL. DASHBOARD INSTRUMENTS
With odometer in miles; Yellow rev counter; Applicable for USA 		$4,629.25 1
1 279884
COMPL. DASHBOARD INSTRUMENTS
Carbon version; With odometer in miles; Yellow rev counter; Applicable for USA 		$7,608.99 1
1 269892
COMPL. DASHBOARD INSTRUMENTS
With odometer; White rev counter; Not for USA, UK 		$4,637.27 1
1 279880
COMPL. DASHBOARD INSTRUMENTS
Carbon version; With odometer; White rev counter; Not for USA, UK 		$7,608.99 1
1 269901
COMPL. DASHBOARD INSTRUMENTS
With odometer in miles; White rev counter; Not for AUS, USA, CDN 		$3,968.72 1
1 279886
COMPL. DASHBOARD INSTRUMENTS
Carbon version; With odometer in miles; White rev counter; Not for AUS, USA, CDN 		$7,608.99 1
1 270784
COMPL. DASHBOARD INSTRUMENTS
With odometer in miles; White rev counter; Applicable for USA 		$4,629.25 1
1 279883
COMPL. DASHBOARD INSTRUMENTS
Carbon version; With odometer in miles; White rev counter; Applicable for USA 		$7,608.99 1
2 13273911
SCREW 		$0.16 3
3 274008
LIGHT AND REAR VIEW MIRROR SWITCH MOUNTING PANEL 		$1,492.26 1
4 83973300
AC CONTROL PANEL
With Centigrade scale; Not for USA, CDN 		$4,269.82 1
4 83973400
AC CONTROL PANEL
With Fahrenheit scale; Applicable for USA, CDN 		$4,269.82 1
5 195849
Glove Compartment Open Button
IN STOCK 		$85.03 (38.5% off) 1
6 191356
HAZARD LIGHT BUTTON 		$72.19 1
7 210983
Fuel Filler Flap Release Button
IN STOCK 		$77.00 (15.3% off) 1
8 210982
Luggage Compartment Lid Button
IN STOCK 		$77.00 (12.7% off) 1
9 67433400
INTERNAL SURROUND 		$290.06 1
10 237174
SUNLIGHT SENSOR
Not for USA, CDN 		$172.19 1
10 199212
SUNLIGHT SENSOR
Applicable for USA, CDN 		$153.10 1
11 69156800
SENSOR FASTENER BRACKET
Not for GD 		$24.05 1
11 69716700
SENSOR FASTENER BRACKET
Applicable for GD 		$34.26 1
12 13273911
SCREW 		$0.16 2
13 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
14 235063
SHIM
1.2 mm 		$10.10 1
14 235064
SHIM
2 mm 		$12.82 1
14 235065
SHIM
3 mm 		$17.63 1
14 238627
SHIM
4 mm 		$17.63 1
15 191971
Door Lock/Unlock Buttons
IN STOCK 		$176.49 (9.3% off) 1
16 245498
FRONT PARKING SENSOR DISABLE BUTTON
Parking sensors 		$188.53 1
17 55009108
INSTRUMENT PUSH BUTTON SET
IN STOCK 		$256.72 1
18 69164800
BUTTON PANEL 		$62.56 (12.7% off) 1
19 15686101
SCREW
IN STOCK 		$0.19 4
20 69162100
UPPER DASHBOARD INSTRUMENTATION MOUNTING BRACKET 		$24.05 1
21 13273977
SCREW
IN STOCK 		$0.28 2
22 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
23 260993
SET OF 3 F1 BUTTONS (LAUNCH-R-AUTO)
Not for USA, CDN 		$545.55 1
23 268674
SET OF 3 F1 BUTTONS (LAUNCH-R-AUTO)
Applicable for USA, CDN 		$465.32 1
24 197158
12 V SOCKET 		$49.73 1
25 84383200
12 V SOCKET CAP 		$1,042.97 1
26 83642700
ANTI-LIFT SYSTEM DISABLE BUTTON 		$401.13 1
27 83996600
SCREW
IN STOCK 		$0.57 (43% off) 10
28 15956677
SCREW 		$8.88 8
29 12639401
WASHER 		$0.02 8
