COMPLETE FRONT SEAT AND SEAT BELTS of Ferrari Ferrari 599 SA Aperta

View All

Ferrari 599 SA Aperta - COMPLETE FRONT SEAT AND SEAT BELTS

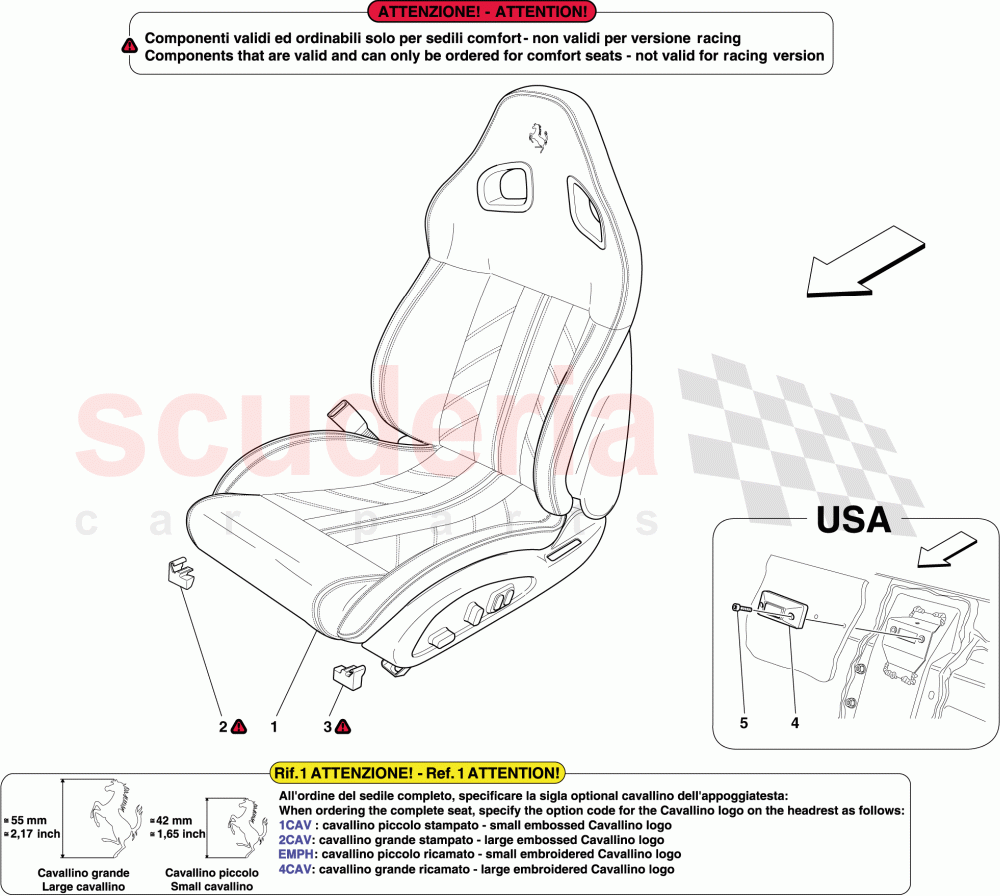

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	83649600	RH SEAT COMPLETE WITH GUIDE RAILS	Enquire	To Order
	83737300	RH SEAT COMPLETE WITH GUIDE RAILS	Enquire	To Order
	83693600	RH SEAT COMPLETE WITH GUIDE RAILS	Enquire	To Order

...and 29 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	69000500	RH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69000600	LH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69952000	COMPL. REAR BACKREST SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69952500	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	83649600	RH SEAT COMPLETE WITH GUIDE RAILS	83649600 RH SEAT COMPLETE WITH GUIDE RAILS Base; Standard; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN	-	1	Enquire
1	83737300	RH SEAT COMPLETE WITH GUIDE RAILS	83737300 RH SEAT COMPLETE WITH GUIDE RAILS Base; Standard; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN	-	1	Enquire
1	83693600	RH SEAT COMPLETE WITH GUIDE RAILS	83693600 RH SEAT COMPLETE WITH GUIDE RAILS Base; Daytona; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN	-	1	Enquire
1	83737400	RH SEAT COMPLETE WITH GUIDE RAILS	83737400 RH SEAT COMPLETE WITH GUIDE RAILS Base; Daytona; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN	-	1	Enquire
1	83693800	RH SEAT COMPLETE WITH GUIDE RAILS	83693800 RH SEAT COMPLETE WITH GUIDE RAILS Base; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN	-	1	Enquire
1	83737500	RH SEAT COMPLETE WITH GUIDE RAILS	83737500 RH SEAT COMPLETE WITH GUIDE RAILS Base; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN	-	1	Enquire
1	83694200	RH SEAT COMPLETE WITH GUIDE RAILS	83694200 RH SEAT COMPLETE WITH GUIDE RAILS Base; Daytona; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN	-	1	Enquire
1	83737600	RH SEAT COMPLETE WITH GUIDE RAILS	83737600 RH SEAT COMPLETE WITH GUIDE RAILS Base; Daytona; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN	-	1	Enquire
1	83695100	RH SEAT COMPLETE WITH GUIDE RAILS	83695100 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Standard; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD	-	1	Enquire
1	83737700	RH SEAT COMPLETE WITH GUIDE RAILS	83737700 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Standard; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN	-	1	Enquire
1	84244600	RH SEAT COMPLETE WITH GUIDE RAILS	84244600 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Standard; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD	-	1	Enquire
1	83695200	RH SEAT COMPLETE WITH GUIDE RAILS	83695200 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Daytona; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD	-	1	Enquire
1	83737800	RH SEAT COMPLETE WITH GUIDE RAILS	83737800 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Daytona; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN	-	1	Enquire
1	84244700	RH SEAT COMPLETE WITH GUIDE RAILS	84244700 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Daytona; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD	-	1	Enquire
1	83695400	RH SEAT COMPLETE WITH GUIDE RAILS	83695400 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD	-	1	Enquire
1	83737900	RH SEAT COMPLETE WITH GUIDE RAILS	83737900 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN	-	1	Enquire
1	84244800	RH SEAT COMPLETE WITH GUIDE RAILS	84244800 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD	-	1	Enquire
1	83695800	RH SEAT COMPLETE WITH GUIDE RAILS	83695800 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Daytona; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Not for USA, CDN, GD	-	1	Enquire
1	83738000	RH SEAT COMPLETE WITH GUIDE RAILS	83738000 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Daytona; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for USA, CDN	-	1	Enquire
1	84244900	RH SEAT COMPLETE WITH GUIDE RAILS	84244900 RH SEAT COMPLETE WITH GUIDE RAILS Full electric; Daytona; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD	-	1	Enquire
1	83649700	LH SEAT COMPLETE WITH GUIDE RAILS	83649700 LH SEAT COMPLETE WITH GUIDE RAILS Base; Standard; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV	-	1	Enquire
1	83694300	LH SEAT COMPLETE WITH GUIDE RAILS	83694300 LH SEAT COMPLETE WITH GUIDE RAILS Base; Daytona; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV	-	1	Enquire
1	83694500	LH SEAT COMPLETE WITH GUIDE RAILS	83694500 LH SEAT COMPLETE WITH GUIDE RAILS Base; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV	-	1	Enquire
1	83695000	LH SEAT COMPLETE WITH GUIDE RAILS	83695000 LH SEAT COMPLETE WITH GUIDE RAILS Base; Daytona; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV	-	1	Enquire
1	83695900	LH SEAT COMPLETE WITH GUIDE RAILS	83695900 LH SEAT COMPLETE WITH GUIDE RAILS Full electric; Standard; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD	-	1	Enquire
1	84245000	LH SEAT COMPLETE WITH GUIDE RAILS	84245000 LH SEAT COMPLETE WITH GUIDE RAILS Full electric; Standard; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD	-	1	Enquire
1	83696200	LH SEAT COMPLETE WITH GUIDE RAILS	83696200 LH SEAT COMPLETE WITH GUIDE RAILS Full electric; Daytona; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD	-	1	Enquire
1	84245100	LH SEAT COMPLETE WITH GUIDE RAILS	84245100 LH SEAT COMPLETE WITH GUIDE RAILS Full electric; Daytona; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD	-	1	Enquire
1	83696500	LH SEAT COMPLETE WITH GUIDE RAILS	83696500 LH SEAT COMPLETE WITH GUIDE RAILS Full electric; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD	-	1	Enquire
1	84245200	LH SEAT COMPLETE WITH GUIDE RAILS	84245200 LH SEAT COMPLETE WITH GUIDE RAILS Full electric; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD	-	1	Enquire
1	83697000	LH SEAT COMPLETE WITH GUIDE RAILS	83697000 LH SEAT COMPLETE WITH GUIDE RAILS Full electric; Daytona; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Not for GD	-	1	Enquire
1	84245300	LH SEAT COMPLETE WITH GUIDE RAILS	84245300 LH SEAT COMPLETE WITH GUIDE RAILS Full electric; Daytona; Leather trimmed seat backrest back; INTI; STC1; STC2; PIP2; STP1; STP2; 1CAV; 2CAV; EMPH; 4CAV; Applicable for GD	-	1	Enquire
2	69000500	RH COVER	69000500 RH COVER	-	2	Enquire
3	69000600	LH COVER	69000600 LH COVER	-	2	Enquire
4	69952000	COMPL. REAR BACKREST SURROUND	69952000 COMPL. REAR BACKREST SURROUND Applicable for USA, CDN	-	1	Enquire
5	69952500	SCREW	69952500 SCREW Applicable for USA, CDN	-	2	Enquire
