LUBRICATION - OIL SUMPS AND FILTERS

Find Your Part

Ferrari 550 Barchetta - LUBRICATION - OIL SUMPS AND FILTERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
165757 OIL SUMP Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.16 To Order
Photo Part No Description Price (each) Stock
13971134 STUD BOLT $2.97 To Order
Photo Part No Description Price (each) Stock
153423 STUD BOLT $9.29 To Order
Photo Part No Description Price (each) Stock
13543424 STUD BOLT $1.94 To Order
Photo Part No Description Price (each) Stock
13543624 STUD BOLT $0.49 To Order
Photo Part No Description Price (each) Stock
100041 CENTERING DOWEL $7.76 To Order
Photo Part No Description Price (each) Stock
13525770 THREADED INSERT $3.03 To Order
Photo Part No Description Price (each) Stock
13541224 STUD BOLT $155.91 To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT $0.58 To Order
Photo Part No Description Price (each) Stock
145085 CONNECTOR $22.16 To Order
Photo Part No Description Price (each) Stock
898271 GASKET $36.89 To Order
Photo Part No Description Price (each) Stock
154602 OIL SUMP COVER $2,572.15 To Order
Photo Part No Description Price (each) Stock
898271 GASKET $36.89 To Order
Photo Part No Description Price (each) Stock
153903 OIL DRAIN PLUG $14.68 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.21 To Order
Photo Part No Description Price (each) Stock
13526570 THREADED INSERT $0.86 To Order
Photo Part No Description Price (each) Stock
125308 OIL PICKUP FILTER $757.71 To Order
Photo Part No Description Price (each) Stock
13540724 STUD BOLT $0.49 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
138149 THREADED CONNECTOR $59.35 To Order
Photo Part No Description Price (each) Stock
141960 GASKET $54.54 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
156144 OIL SUMP DRAIN PLUG $147.62 To Order
Photo Part No Description Price (each) Stock
10303460 Gasket $1.70 To Order
Photo Part No Description Price (each) Stock
206166 Oil Filter $84.80 To Order
Photo Part No Description Price (each) Stock
141707 CONNECTOR $23.65 To Order
Photo Part No Description Price (each) Stock
143866 SUPPORT $208.58 To Order
Photo Part No Description Price (each) Stock
135940 Transmitter Oil Pressure $188.42 To Order
Photo Part No Description Price (each) Stock
132248 O-RING $0.45 To Order
Photo Part No Description Price (each) Stock
14305324 SCREW $0.08 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
282753 THREADED PLUG $6.66 To Order
Photo Part No Description Price (each) Stock
13525870 THREADED INSERT $2.97 To Order
Photo Part No Description Price (each) Stock
13525570 THREADED INSERT $2.42 To Order
Photo Part No Description Price (each) Stock
13525870 THREADED INSERT $2.97 To Order
Photo Part No Description Price (each) Stock
13525570 THREADED INSERT $2.42 To Order
Photo Part No Description Price (each) Stock
167016 OIL BAFFLE PLATE $30.78 To Order
Photo Part No Description Price (each) Stock
13540824 STUD BOLT $0.24 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
View All

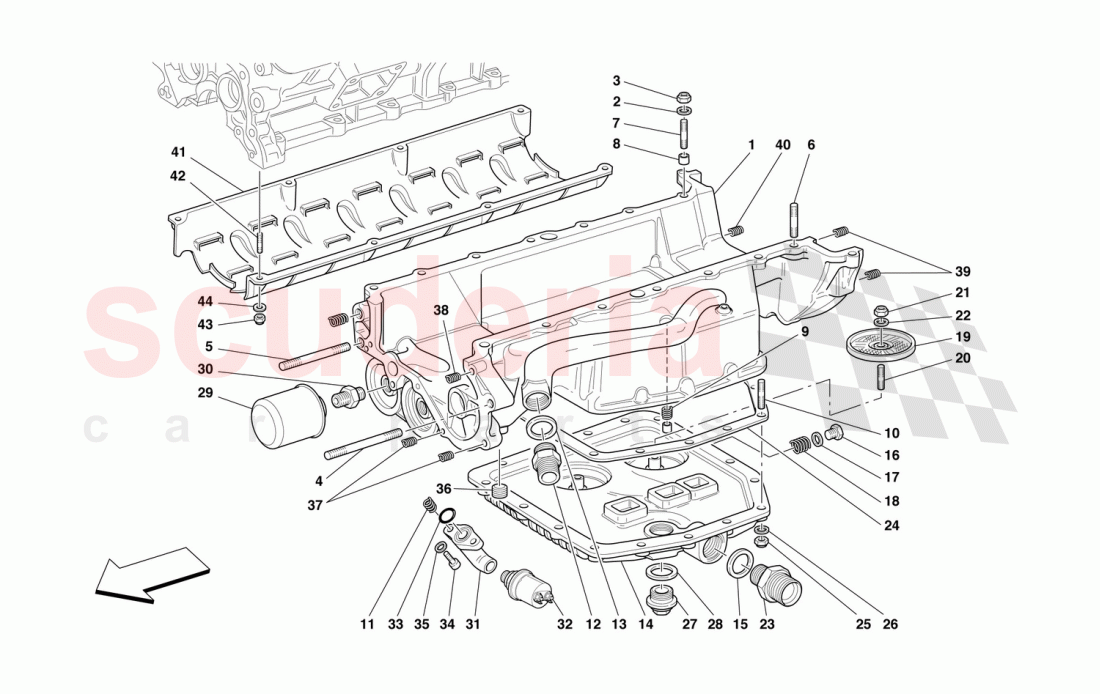

LUBRICATION - OIL SUMPS AND FILTERS of Ferrari Ferrari 550 Barchetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 206166
Oil Filter
As an alternative 		$84.80 2
- 172465
COMPLETE OIL SUMP 		$1,775.24 1
1 165757
OIL SUMP
With complete oil sump 		- 1 Enquire
2 12601374
WASHER 		$0.02 (92% off) 14
3 147985
NUT 		$0.16 (68% off) 14
4 13971134
STUD BOLT 		$2.97 1
5 153423
STUD BOLT 		$9.29 1
6 13543424
STUD BOLT 		$1.94 12
7 13543624
STUD BOLT 		$0.49 2
8 100041
CENTERING DOWEL 		$7.76 2
9 13525770
THREADED INSERT 		$3.03 (17.4% off) 4
10 13541224
STUD BOLT 		$155.91 16
11 13525470
THREADED INSERT 		$0.58 (76.8% off) 2
12 145085
CONNECTOR 		$22.16 1
13 898271
GASKET 		$36.89 1
14 154602
OIL SUMP COVER 		$2,572.15 1
15 898271
GASKET 		$36.89 1
16 153903
OIL DRAIN PLUG 		$14.68 1
17 10280060
WASHER COPPER D14. 20 X 1.5 		$0.21 (79% off) 1
18 13526570
THREADED INSERT 		$0.86 1
19 125308
OIL PICKUP FILTER 		$757.71 2
20 13540724
STUD BOLT 		$0.49 2
21 14059290
FLANGED NUT M6 		$1.51 2
22 11197774
WASHER 		$0.06 (80% off) 2
23 138149
THREADED CONNECTOR 		$59.35 (15.6% off) 1
24 141960
GASKET 		$54.54 1
25 14059290
FLANGED NUT M6 		$1.51 16
26 11197774
WASHER 		$0.06 (80% off) 16
27 156144
OIL SUMP DRAIN PLUG 		$147.62 (23.1% off) 1
28 10303460
Gasket 		$1.70 (19% off) 1
29 206166
Oil Filter 		$84.80 2
30 141707
CONNECTOR 		$23.65 2
31 143866
SUPPORT 		$208.58 (44.8% off) 1
32 135940
Transmitter Oil Pressure 		$188.42 (13.1% off) 1
33 132248
O-RING 		$0.45 (78.6% off) 1
34 14305324
SCREW 		$0.08 2
35 11197774
WASHER 		$0.06 (80% off) 2
36 282753
THREADED PLUG 		$6.66 2
37 13525870
THREADED INSERT 		$2.97 2
38 13525570
THREADED INSERT 		$2.42 4
39 13525870
THREADED INSERT 		$2.97 4
40 13525570
THREADED INSERT 		$2.42 3
41 167016
OIL BAFFLE PLATE
PANEL 		$30.78 1
42 13540824
STUD BOLT 		$0.24 8
43 14059290
FLANGED NUT M6 		$1.51 8
44 10519424
WASHER 		$0.02 (92% off) 8
