Ferrari 550 Barchetta - L.H. CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
183784 L.H. HEAD Enquire To Order
Photo Part No Description Price (each) Stock
154203 RH FRONT CAP Enquire To Order
Photo Part No Description Price (each) Stock
154205 LH FRONT CAP Enquire To Order
Photo Part No Description Price (each) Stock
154206 RH REAR CAP Enquire To Order
Photo Part No Description Price (each) Stock
154204 LH REAR CAP Enquire To Order
Photo Part No Description Price (each) Stock
154207 INTERMEDIATE CAP Enquire To Order
Photo Part No Description Price (each) Stock
13541424 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
171720 L.H. CYLINDERS HEAD COVER Enquire To Order
Photo Part No Description Price (each) Stock
13525570 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
154525 THREADED UNION Enquire To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13525170 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
148022 FRONT COVER Enquire To Order
Photo Part No Description Price (each) Stock
163987 Camshaft Oil Seal Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
117275 Oil Sealing Ring Enquire To Order
Photo Part No Description Price (each) Stock
148023 CAMSHAFT END PLATE Enquire To Order
Photo Part No Description Price (each) Stock
117275 Oil Sealing Ring Enquire To Order
Photo Part No Description Price (each) Stock
13525770 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
13541324 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
13525870 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
156834 Screw Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
156835 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14326150 CAP Enquire To Order
Photo Part No Description Price (each) Stock
13524670 THREADED INSERT Enquire To Order
Photo Part No Description Price (each) Stock
11500224 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
157910 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
140753 Cover Gasket Enquire To Order
Photo Part No Description Price (each) Stock
154647 OIL DRAIN DUCT Enquire To Order
Photo Part No Description Price (each) Stock
142599 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
14304124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
151687 SUPPORT FOR ACCELERATOR Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
177396 REAR SUPPORT FOR ACCELERATOR CABLE Enquire To Order
Photo Part No Description Price (each) Stock
14304324 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
10977524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127494 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16043124 SCREW M8 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
149707 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
177579 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
127635 THREADED PLUG Enquire To Order
View All

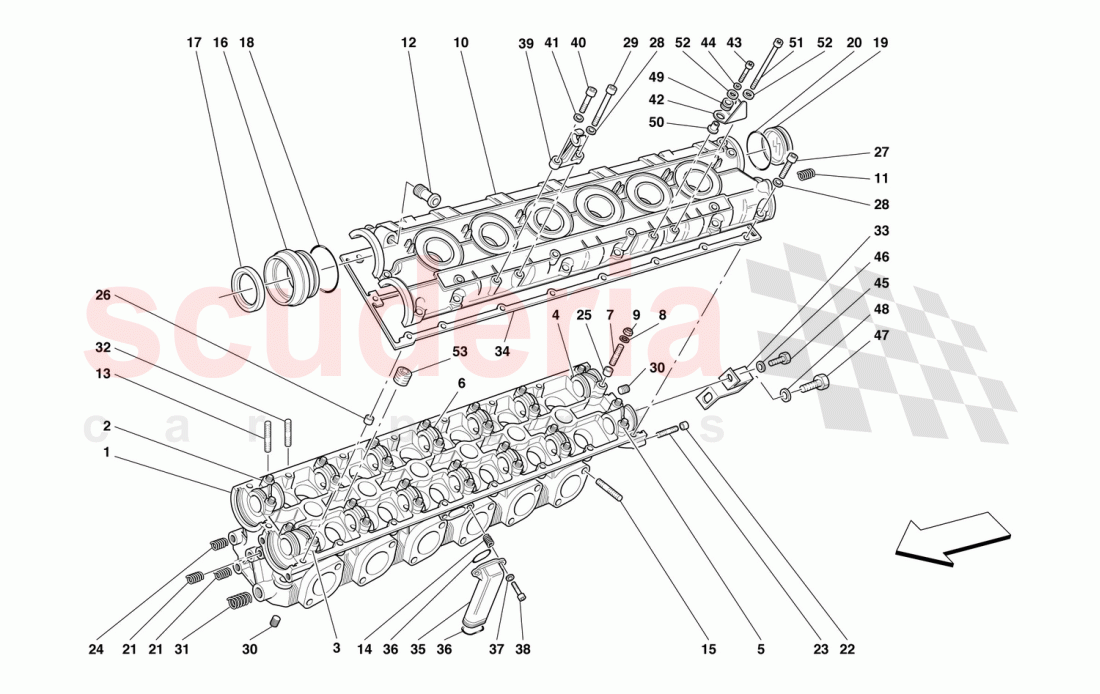

L.H. CYLINDER HEAD of Ferrari Ferrari 550 Barchetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 192178
COMPLETE L.H. CYLINDERS HEAD
Valid for sintered steel valve / guide 		- 1 Enquire
1 183784
L.H. HEAD
With complete cylinder head 		- 1 Enquire
2 154203
RH FRONT CAP
With complete cylinder head 		- 1 Enquire
3 154205
LH FRONT CAP
With complete cylinder head 		- 1 Enquire
4 154206
RH REAR CAP
With complete cylinder head 		- 1 Enquire
5 154204
LH REAR CAP
With complete cylinder head 		- 1 Enquire
6 154207
INTERMEDIATE CAP
With complete cylinder head 		- 10 Enquire
7 13541424
STUD BOLT 		- 28 Enquire
8 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 28 Enquire
9 14059290
FLANGED NUT M6 		- 28 Enquire
10 171720
L.H. CYLINDERS HEAD COVER
With complete cylinder head 		- 1 Enquire
11 13525570
THREADED INSERT 		- 1 Enquire
12 154525
THREADED UNION 		- 1 Enquire
13 13541124
STUD BOLT 		- 12 Enquire
14 13525170
THREADED INSERT 		- 2 Enquire
15 13516824
STUD BOLT 		- 12 Enquire
16 148022
FRONT COVER 		- 1 Enquire
17 163987
Camshaft Oil Seal
ARRIVING SOON 		- 1 Enquire
18 117275
Oil Sealing Ring 		- 1 Enquire
19 148023
CAMSHAFT END PLATE 		- 2 Enquire
20 117275
Oil Sealing Ring 		- 2 Enquire
21 13525770
THREADED INSERT 		- 2 Enquire
22 102725
CENTERING DOWEL 		- 2 Enquire
23 13541324
STUD BOLT 		- 2 Enquire
24 13525870
THREADED INSERT 		- 1 Enquire
25 102725
CENTERING DOWEL 		- 28 Enquire
26 102725
CENTERING DOWEL 		- 2 Enquire
27 156834
Screw 		- 16 Enquire
28 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 18 Enquire
29 156835
SCREW 		- 1 Enquire
30 14326150
CAP 		- 2 Enquire
31 13524670
THREADED INSERT 		- 1 Enquire
32 11500224
STUD BOLT 		- 12 Enquire
33 157910
BRACKET 		- 1 Enquire
34 140753
Cover Gasket 		- 1 Enquire
35 154647
OIL DRAIN DUCT 		- 1 Enquire
36 142599
O-RING 		- 2 Enquire
37 12604178
Washer 		- 2 Enquire
38 14304124
SCREW 		- 2 Enquire
39 151687
SUPPORT FOR ACCELERATOR
CABLE 		- 1 Enquire
40 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 2 Enquire
41 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
42 177396
REAR SUPPORT FOR ACCELERATOR CABLE
ACCELERATOR CABLE 		- 1 Enquire
43 14304324
SCREW 		- 1 Enquire
44 12604178
Washer 		- 1 Enquire
45 10977524
SCREW 		- 1 Enquire
46 127494
WASHER 		- 1 Enquire
47 16043124
SCREW M8 X 14 		- 1 Enquire
48 127496
WASHER 		- 1 Enquire
49 177576
CABLE GROMMET 		- 2 Enquire
50 149707
SPACER 		- 2 Enquire
51 177579
SCREW 		- 1 Enquire
52 12643724
WASHER 		- 2 Enquire
53 127635
THREADED PLUG 		- 4 Enquire
