Find Your Part

PEDALS AND ACCELERATOR CONTROL of Ferrari Ferrari 550 Barchetta

View All

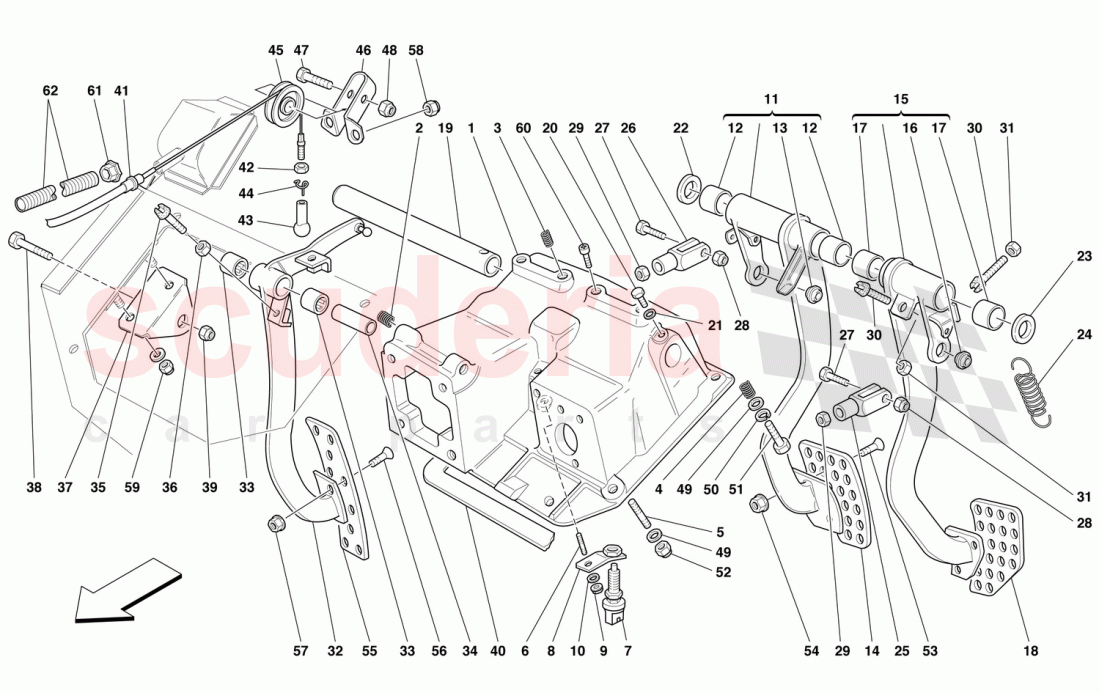

Ferrari 550 Barchetta - PEDALS AND ACCELERATOR CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	178879	COMPLETE PEDAL SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525470	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13516824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11500224	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133555	PUSHBUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152310	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646604	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172538	BRAKE PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109407	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163865	BRAKE PEDAL DRILLED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170707	CLUTCH PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109407	BALL-JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103163	SELF-LUBRICATING BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163871	CLUTCH PEDAL DRILLED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129954	PEDALS SUPPORT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106083	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106083	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101305	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164393	FORK FOR CLUTCH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10248271	FORK FOR CLUTCH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187014	PEDAL ADJUSTER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170676	ACCELERATOR PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101677	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138219	CARRIER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123961	PEDAL ADJUSTEMENT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152328	ACCELERATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10903621	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170706	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178185	ACCELERATOR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173999	BALL-JOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174001	SPRING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157557	PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152405	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164037	ACCELERATOR PEDAL DRILLED PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14440734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276011	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175191	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175190	SHEATH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	178186	ACCELERATOR CABLE	178186 ACCELERATOR CABLE Valid for GD	-	1	Enquire
-	113836	WASHER	113836 WASHER	-	1	Enquire
-	113833	WASHER	113833 WASHER	-	1	Enquire
-	113834	WASHER	113834 WASHER	-	1	Enquire
-	113835	WASHER	113835 WASHER	-	1	Enquire
-	170761	CLUTCH PEDAL	170761 CLUTCH PEDAL Valid for GD	-	1	Enquire
-	172538	BRAKE PEDAL	172538 BRAKE PEDAL Valid for GD	-	1	Enquire
-	178879	COMPLETE PEDAL SUPPORT	178879 COMPLETE PEDAL SUPPORT	-	1	Enquire
1	178879	COMPLETE PEDAL SUPPORT	178879 COMPLETE PEDAL SUPPORT Not as spare parts / With complete pedal support 178879	-	1	Enquire
2	13525770	THREADED INSERT	13525770 THREADED INSERT	-	2	Enquire
3	13525470	THREADED INSERT	13525470 THREADED INSERT	-	2	Enquire
4	13525770	THREADED INSERT	13525770 THREADED INSERT	-	2	Enquire
5	13516824	STUD BOLT	13516824 STUD BOLT	-	2	Enquire
6	11500224	STUD BOLT	11500224 STUD BOLT	-	1	Enquire
7	133555	PUSHBUTTON SWITCH	133555 PUSHBUTTON SWITCH	-	1	Enquire
8	152310	SMALL PLATE	152310 SMALL PLATE	-	1	Enquire
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
10	12646604	WASHER	12646604 WASHER	-	1	Enquire
11	172538	BRAKE PEDAL	172538 BRAKE PEDAL Not for GD	-	1	Enquire
12	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING	-	2	Enquire
13	109407	BALL-JOINT	109407 BALL-JOINT	-	1	Enquire
14	163865	BRAKE PEDAL DRILLED PLATE	163865 BRAKE PEDAL DRILLED PLATE	-	1	Enquire
15	170707	CLUTCH PEDAL	170707 CLUTCH PEDAL Not for GD	-	1	Enquire
16	109407	BALL-JOINT	109407 BALL-JOINT	-	1	Enquire
17	103163	SELF-LUBRICATING BUSHING	103163 SELF-LUBRICATING BUSHING	-	2	Enquire
18	163871	CLUTCH PEDAL DRILLED PLATE	163871 CLUTCH PEDAL DRILLED PLATE	-	1	Enquire
19	129954	PEDALS SUPPORT PIN	129954 PEDALS SUPPORT PIN	-	1	Enquire
20	10902224	SCREW	10902224 SCREW	-	1	Enquire
21	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
22	106083	WASHER	106083 WASHER	-	1	Enquire
23	106083	WASHER	106083 WASHER Possible fitting	-	1	Enquire
24	101305	SPRING	101305 SPRING	-	2	Enquire
25	164393	FORK FOR CLUTCH LEVER	164393 FORK FOR CLUTCH LEVER	-	1	Enquire
26	10248271	FORK FOR CLUTCH LEVER	10248271 FORK FOR CLUTCH LEVER	-	1	Enquire
27	16043634	SCREW	16043634 SCREW	-	2	Enquire
28	147985	NUT	147985 NUT	-	2	Enquire
29	16102314	NUT	16102314 NUT	-	2	Enquire
30	187014	PEDAL ADJUSTER SCREW	187014 PEDAL ADJUSTER SCREW	-	2	Enquire
31	16102314	NUT	16102314 NUT	-	2	Enquire
32	170676	ACCELERATOR PEDAL	170676 ACCELERATOR PEDAL	-	1	Enquire
33	101677	ROLLER BEARING	101677 ROLLER BEARING	-	2	Enquire
34	138219	CARRIER BUSH	138219 CARRIER BUSH	-	1	Enquire
35	123961	PEDAL ADJUSTEMENT PIN	123961 PEDAL ADJUSTEMENT PIN	-	2	Enquire
36	16102314	NUT	16102314 NUT	-	2	Enquire
37	152328	ACCELERATOR SUPPORT	152328 ACCELERATOR SUPPORT	-	1	Enquire
38	10903621	SCREW	10903621 SCREW	-	1	Enquire
39	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
40	170706	GASKET	170706 GASKET	-	1	Enquire
41	178185	ACCELERATOR CABLE	178185 ACCELERATOR CABLE Not for GD	-	1	Enquire
42	15896470	NUT	15896470 NUT	-	1	Enquire
43	173999	BALL-JOINT HEAD	173999 BALL-JOINT HEAD	-	1	Enquire
44	174001	SPRING CLIP	174001 SPRING CLIP	-	1	Enquire
45	157557	PULLEY	157557 PULLEY	-	1	Enquire
46	152405	SUPPORT	152405 SUPPORT	-	1	Enquire
47	231625	SCREW	231625 SCREW	-	1	Enquire
48	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
49	14499421	WASHER	14499421 WASHER	-	4	Enquire
50	127496	WASHER	127496 WASHER	-	2	Enquire
51	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18	-	2	Enquire
52	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
53	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	4	Enquire
54	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
55	164037	ACCELERATOR PEDAL DRILLED PLATE	164037 ACCELERATOR PEDAL DRILLED PLATE PLATE	-	1	Enquire
56	14440734	SCREW	14440734 SCREW	-	2	Enquire
57	14084111	NUT	14084111 NUT	-	2	Enquire
58	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
59	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
60	13276011	SCREW	13276011 SCREW	-	2	Enquire
61	175191	SLEEVE	175191 SLEEVE	-	2	Enquire
62	175190	SHEATH	175190 SHEATH	-	1	Enquire
