INJECTION DEVICE of Ferrari Ferrari 550 Barchetta

View All

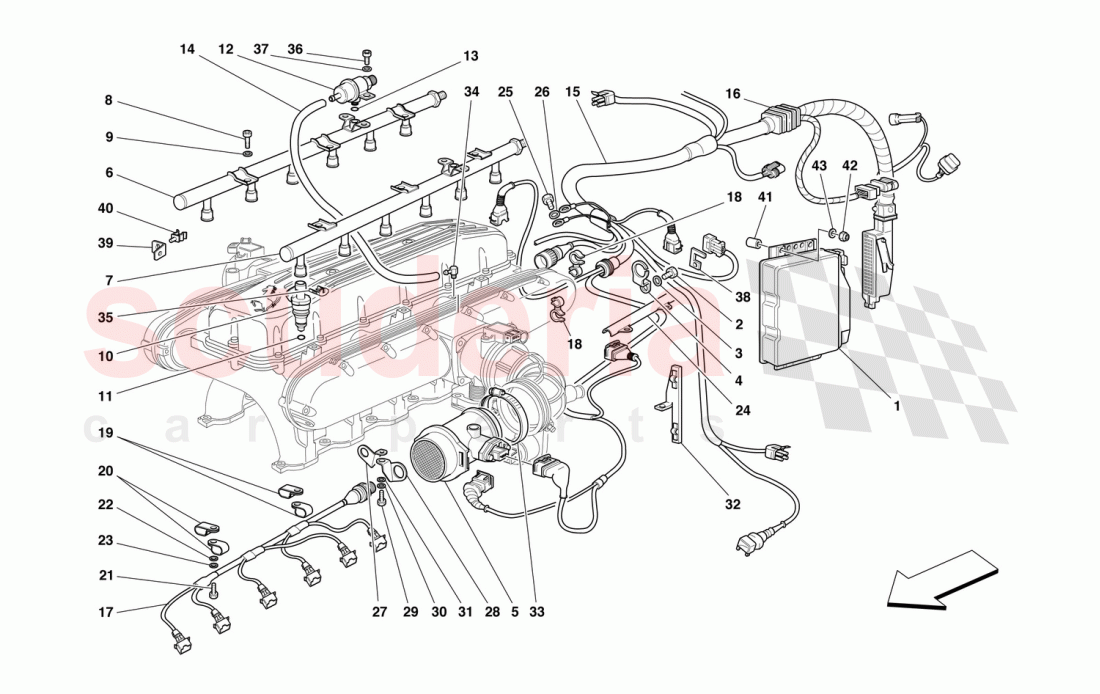

Ferrari 550 Barchetta - INJECTION DEVICE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	186505	ELECTRONIC CONTROL STATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155327	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162530	AIR FLOW METER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172485	R.H. INJECTORS TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172486	L.H. INJECTORS TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162613	ELECTRO-INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133902	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167321	PRESSURE REGULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152211	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	118901	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173940	LH SIDE ENGINE CONNECTING CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139465	BELLOWS FOR CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168529	INJECTORS CONNECTION CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145545	SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418801	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10418601	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154772	BRACKET FOR CABLES FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145477	R.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145476	L.H. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	212777	INJECTION CABLE RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13001190	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128016	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144763	INJECTOR RETAINING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172763	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159658	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159740	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172613	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	179045	RH SIDE ENGINE CONNECTING CABLES	179045 RH SIDE ENGINE CONNECTING CABLES CONNECTION / Valid for USA and CDN	-	1	Enquire
-	179047	LH SIDE ENGINE CONNECTING CABLES	179047 LH SIDE ENGINE CONNECTING CABLES CONNECTION / Valid for USA and CDN	-	1	Enquire
-	171394	RH SIDE ENGINE CONNECTING CABLES	171394 RH SIDE ENGINE CONNECTING CABLES CONNECTION / Not for GB, AUS, USA and CDN	-	1	Enquire
-	173719	CABLES FOR RH MAIN BEARINGS CONNECTION	173719 CABLES FOR RH MAIN BEARINGS CONNECTION CONNECTION / Vale per GB e AUS	-	1	Enquire
-	173995	CABLES FOR LH MAIN BEARINGS CONNECTION	173995 CABLES FOR LH MAIN BEARINGS CONNECTION CONNECTION / Valid for GB and AUS	-	1	Enquire
-	172434	ELECTRONIC CONTROL STATION	172434 ELECTRONIC CONTROL STATION Valid for not catalyzed cars	-	2	Enquire
-	186505	ELECTRONIC CONTROL STATION	186505 ELECTRONIC CONTROL STATION Valid for GB	-	2	Enquire
-	181673	ELECTRONIC CONTROL STATION	181673 ELECTRONIC CONTROL STATION Valid for USA and CDN	-	2	Enquire
-	173653	ELECTRONIC CONTROL STATION	173653 ELECTRONIC CONTROL STATION Valid for BRUNEI	-	2	Enquire
1	186505	ELECTRONIC CONTROL STATION	186505 ELECTRONIC CONTROL STATION Not for USA, CDN, GB and BRUNEI / Not for not catalyzed cars	-	2	Enquire
2	16043124	SCREW M8 X 14	16043124 SCREW M8 X 14	-	2	Enquire
3	127496	WASHER	127496 WASHER	-	2	Enquire
4	155327	BRACKET	155327 BRACKET	-	2	Enquire
5	162530	AIR FLOW METER	162530 AIR FLOW METER	-	2	Enquire
6	172485	R.H. INJECTORS TUBE	172485 R.H. INJECTORS TUBE	-	1	Enquire
7	172486	L.H. INJECTORS TUBE	172486 L.H. INJECTORS TUBE	-	1	Enquire
8	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	6	Enquire
9	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	6	Enquire
10	162613	ELECTRO-INJECTOR	162613 ELECTRO-INJECTOR	-	12	Enquire
11	133902	O-Ring	133902 O-Ring	-	12	Enquire
12	167321	PRESSURE REGULATOR	167321 PRESSURE REGULATOR	-	2	Enquire
13	152211	SEAL RING	152211 SEAL RING	-	2	Enquire
14	118901	RUBBER PIPE	118901 RUBBER PIPE	-	2	Enquire
15	173940	LH SIDE ENGINE CONNECTING CABLES	173940 LH SIDE ENGINE CONNECTING CABLES CONNECTION / Not for GB, AUS, USA and CDN	-	1	Enquire
16	139465	BELLOWS FOR CABLE	139465 BELLOWS FOR CABLE	-	2	Enquire
17	168529	INJECTORS CONNECTION CABLES	168529 INJECTORS CONNECTION CABLES	-	2	Enquire
18	145545	SPRINGS	145545 SPRINGS	-	2	Enquire
19	10418801	BRACKET	10418801 BRACKET	-	2	Enquire
20	10418601	BRACKET WITH SHEATH	10418601 BRACKET WITH SHEATH	-	2	Enquire
21	10977524	SCREW	10977524 SCREW	-	2	Enquire
22	12639724	WASHER	12639724 WASHER	-	2	Enquire
23	127494	WASHER	127494 WASHER	-	2	Enquire
24	154772	BRACKET FOR CABLES FIXING	154772 BRACKET FOR CABLES FIXING	-	2	Enquire
25	10977524	SCREW	10977524 SCREW	-	2	Enquire
26	127494	WASHER	127494 WASHER	-	2	Enquire
27	145477	R.H. BRACKET	145477 R.H. BRACKET	-	1	Enquire
28	145476	L.H. BRACKET	145476 L.H. BRACKET	-	1	Enquire
29	10977524	SCREW	10977524 SCREW	-	1	Enquire
30	127494	WASHER	127494 WASHER	-	1	Enquire
31	12639724	WASHER	12639724 WASHER	-	1	Enquire
32	212777	INJECTION CABLE RETAINER BRACKET	212777 INJECTION CABLE RETAINER BRACKET	-	1	Enquire
33	13001190	COLLAR	13001190 COLLAR	-	2	Enquire
34	128016	CONNECTOR	128016 CONNECTOR	-	2	Enquire
35	144763	INJECTOR RETAINING SPRING	144763 INJECTOR RETAINING SPRING	-	12	Enquire
36	172763	SCREW	172763 SCREW	-	4	Enquire
37	127494	WASHER	127494 WASHER	-	4	Enquire
38	155751	CLIP	155751 CLIP	-	2	Enquire
39	159658	BRACKET	159658 BRACKET	-	1	Enquire
40	159740	CLIP	159740 CLIP	-	1	Enquire
41	172613	SPACER	172613 SPACER	-	3	Enquire
42	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
43	10519424	WASHER	10519424 WASHER	-	3	Enquire
