Name: ENGINE/GEARBOX CONNECTING TUBE AND INSULATION
Rating: 4.3 (1 reviews)

View All

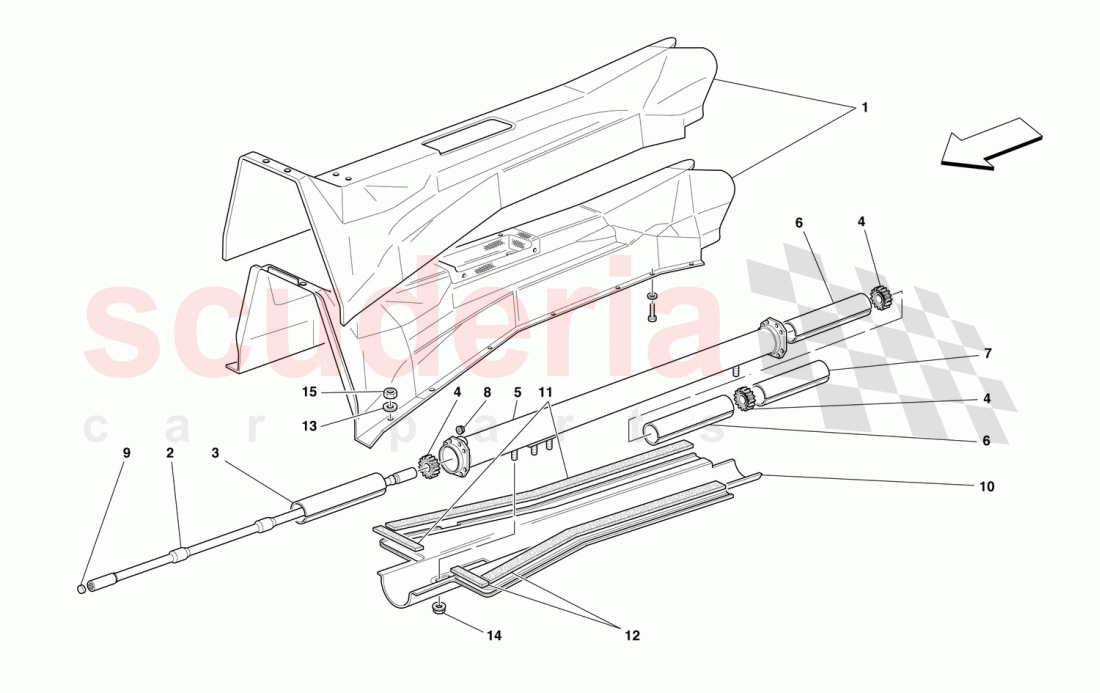

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65859100	COMPLETE TUNNEL HEAT SHIELD	$2,359.47	To Order

Photo	Part No	Description	Price (each)	Stock
	173817	COMPLETE PROPELLER SHAFT	$2,811.24	To Order

Photo	Part No	Description	Price (each)	Stock
	167000	ENGINE SIDE SPACER	$158.84	To Order

Photo	Part No	Description	Price (each)	Stock
	166569	Bearing	$82.43	To Order

Photo	Part No	Description	Price (each)	Stock
	197510	ENGINE-GEARBOX CONNECTING PIPE	$2,986.14	To Order

Photo	Part No	Description	Price (each)	Stock
	166998	INTERMEDIATE SPACER	$97.38	To Order

Photo	Part No	Description	Price (each)	Stock
	166999	GEARBOX SIDE SPACER	$93.62	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	144443	SHIM	$3.91	To Order

Photo	Part No	Description	Price (each)	Stock
	197502	SHIELD FOR PIPE PROTECTION	$757.08	To Order

Photo	Part No	Description	Price (each)	Stock
	238988	GASKET	$384.11	To Order

Photo	Part No	Description	Price (each)	Stock
	238988	GASKET	$384.11	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.39	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	65859100	COMPLETE TUNNEL HEAT SHIELD	65859100 COMPLETE TUNNEL HEAT SHIELD	$2,359.47	1
2	173817	COMPLETE PROPELLER SHAFT	173817 COMPLETE PROPELLER SHAFT	$2,811.24	1
3	167000	ENGINE SIDE SPACER	167000 ENGINE SIDE SPACER	$158.84	1
4	166569	Bearing	166569 Bearing	$82.43 MSRP: ~~146.05~~ (43.6% off)	3
5	197510	ENGINE-GEARBOX CONNECTING PIPE	197510 ENGINE-GEARBOX CONNECTING PIPE CONNECTING PIPE	$2,986.14	1
6	166998	INTERMEDIATE SPACER	166998 INTERMEDIATE SPACER	$97.38	2
7	166999	GEARBOX SIDE SPACER	166999 GEARBOX SIDE SPACER	$93.62	1
8	14059421	NUT	14059421 NUT	$0.52	16
9	144443	SHIM	144443 SHIM	$3.91	2
10	197502	SHIELD FOR PIPE PROTECTION	197502 SHIELD FOR PIPE PROTECTION	$757.08	1
11	238988	GASKET	238988 GASKET	$384.11	1
12	238988	GASKET	238988 GASKET	$384.11	1
13	12648925	WASHER	12648925 WASHER	$0.39	4
14	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
15	13046011	NUT	13046011 NUT	$0.39	4
