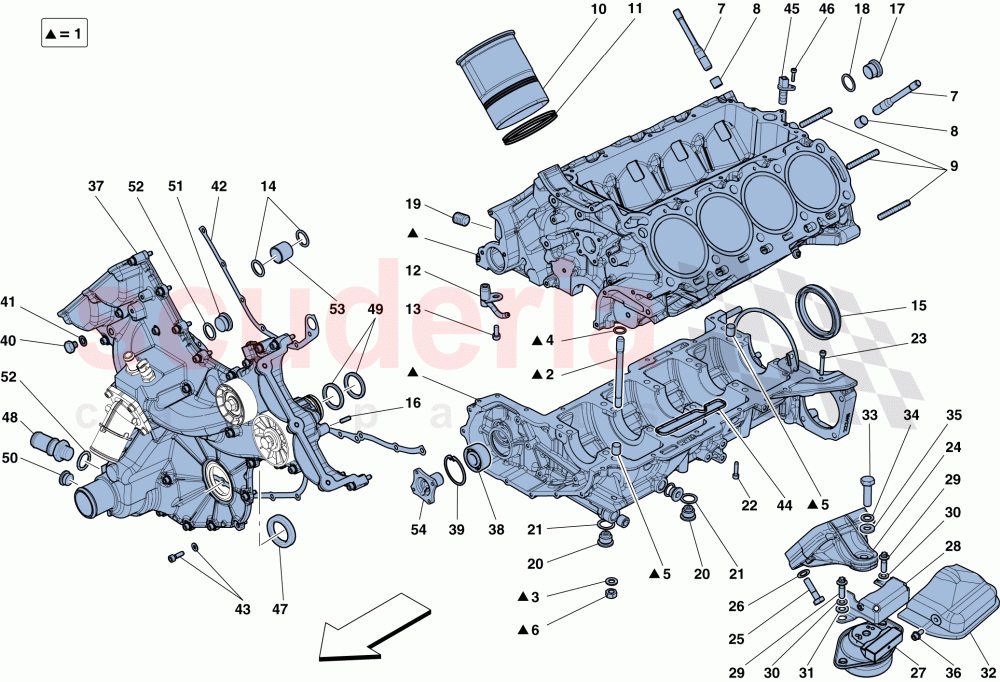

Ferrari 458 Spider - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	278162	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order
	278162	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236261	STUD BOLT	Enquire	To Order
	236262	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	Enquire	To Order
	254979	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243339	CYLINDER SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236813	COMPL. PISTON COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262413	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14454681	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255568	RH ENGINE STRUT	Enquire	To Order
	255569	LH ENGINE STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11307034	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259757	LH FLEXIBLE ENGINE MOUNTING BUSH	Enquire	To Order
	259756	RH FLEXIBLE ENGINE MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278028	STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	Enquire	To Order
	278027	STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243841	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260084	ENGINE MOUNTING BUSH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11599534	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261440	FRONT COMPL. CRANKCASE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247049	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11060276	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187718	BLEED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231626	SCREW	Enquire	To Order
	231622	SCREW	Enquire	To Order
	231624	SCREW	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	236143	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249747	RPM SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	245884	Crank-Shaft Seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253787	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223405	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193885	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239437	WATER INLET BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255866	PUMP DRIVE JOINT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	278162	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	278162 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY Applicable for EU GS, UK	-	1	Enquire
1	278162	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	278162 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY Not for EU GS, UK	-	1	Enquire
2	236261	STUD BOLT	236261 STUD BOLT M12 X 1.75; Shank M10 X 1.25	-	10	Enquire
2	236262	STUD BOLT	236262 STUD BOLT M12 X 1.75; Shank M10 X 1.25	-	10	Enquire
3	178348	WASHER	178348 WASHER	-	20	Enquire
4	134704	O-RING ARRIVING SOON	134704 O-RING ARRIVING SOON	-	20	Enquire
5	176421	CENTERING DOWEL	176421 CENTERING DOWEL	-	2	Enquire
6	133988	HEX NUT M10 X 1.25 X 8	133988 HEX NUT M10 X 1.25 X 8	-	20	Enquire
7	802590	STUD BOLT	802590 STUD BOLT	-	20	Enquire
8	185360	CENTERING DOWEL	185360 CENTERING DOWEL	-	4	Enquire
9	13546934	STUD BOLT	13546934 STUD BOLT Shaft length 50 mm	-	4	Enquire
9	254979	STUD BOLT	254979 STUD BOLT Shaft length 55 mm	-	3	Enquire
10	243339	CYLINDER SLEEVE	243339 CYLINDER SLEEVE	-	8	Enquire
11	186251	O-RING	186251 O-RING	-	24	Enquire
12	236813	COMPL. PISTON COOLING NOZZLE	236813 COMPL. PISTON COOLING NOZZLE	-	8	Enquire
13	262413	SCREW	262413 SCREW	-	8	Enquire
14	14454681	O-RING	14454681 O-RING	-	2	Enquire
15	240214	GASKET ARRIVING SOON	240214 GASKET ARRIVING SOON	-	1	Enquire
16	175611	CENTERING DOWEL	175611 CENTERING DOWEL	-	2	Enquire
17	307477	THREADED PLUG	307477 THREADED PLUG	-	1	Enquire
18	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	1	Enquire
19	282753	THREADED PLUG	282753 THREADED PLUG	-	1	Enquire
20	104280	MAGNETIC THREADED PLUG M22 X 1.5	104280 MAGNETIC THREADED PLUG M22 X 1.5	-	2	Enquire
21	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	-	2	Enquire
22	231620	SCREW	231620 SCREW M6 X 25	-	11	Enquire
23	231625	SCREW	231625 SCREW	-	2	Enquire
24	255568	RH ENGINE STRUT	255568 RH ENGINE STRUT	-	1	Enquire
24	255569	LH ENGINE STRUT	255569 LH ENGINE STRUT	-	1	Enquire
25	11307034	SCREW	11307034 SCREW	-	8	Enquire
26	11190574	WASHER	11190574 WASHER	-	8	Enquire
27	259757	LH FLEXIBLE ENGINE MOUNTING BUSH	259757 LH FLEXIBLE ENGINE MOUNTING BUSH	-	1	Enquire
27	259756	RH FLEXIBLE ENGINE MOUNTING BUSH	259756 RH FLEXIBLE ENGINE MOUNTING BUSH	-	1	Enquire
28	278028	STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	278028 STAFFA LIMITATRICE ESCURSIONE TAMPONE SX.	-	1	Enquire
28	278027	STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	278027 STAFFA LIMITATRICE ESCURSIONE TAMPONE DX.	-	1	Enquire
29	243841	SCREW	243841 SCREW	-	6	Enquire
30	127497	WASHER	127497 WASHER	-	6	Enquire
31	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	6	Enquire
32	260084	ENGINE MOUNTING BUSH HEAT SHIELD	260084 ENGINE MOUNTING BUSH HEAT SHIELD	-	2	Enquire
33	11599534	SCREW	11599534 SCREW	-	2	Enquire
34	127498	WASHER	127498 WASHER	-	2	Enquire
35	10738021	WASHER	10738021 WASHER	-	2	Enquire
36	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	4	Enquire
37	261440	FRONT COMPL. CRANKCASE COVER	261440 FRONT COMPL. CRANKCASE COVER	-	1	Enquire
38	247049	BEARING	247049 BEARING	-	1	Enquire
39	11060276	SEEGER RING	11060276 SEEGER RING	-	1	Enquire
40	187718	BLEED PLUG	187718 BLEED PLUG	-	2	Enquire
41	127497	WASHER	127497 WASHER	-	2	Enquire
43	231626	SCREW	231626 SCREW M6 X 70	-	1	Enquire
43	231622	SCREW	231622 SCREW M6 X 35	-	8	Enquire
43	231624	SCREW	231624 SCREW M6 X 45	-	1	Enquire
43	231625	SCREW	231625 SCREW M6 X 50	-	3	Enquire
43	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	11	Enquire
43	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	4	Enquire
43	231620	SCREW	231620 SCREW M6 X 25	-	3	Enquire
43	231620	SCREW	231620 SCREW M6 X 30	-	1	Enquire
44	236143	GASKET	236143 GASKET	-	2	Enquire
45	249747	RPM SENSOR	249747 RPM SENSOR	-	1	Enquire
46	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	1	Enquire
47	245884	Crank-Shaft Seal	245884 Crank-Shaft Seal	-	1	Enquire
48	253787	CONNECTOR	253787 CONNECTOR	-	1	Enquire
49	183010	O-RING	183010 O-RING	-	2	Enquire
50	223405	CAP	223405 CAP	-	1	Enquire
51	193885	THREADED PLUG	193885 THREADED PLUG	-	1	Enquire
52	10263460	COPPER GASKET D.28-22.3 X 1.5	10263460 COPPER GASKET D.28-22.3 X 1.5	-	2	Enquire
53	239437	WATER INLET BUSH	239437 WATER INLET BUSH	-	1	Enquire
54	255866	PUMP DRIVE JOINT	255866 PUMP DRIVE JOINT	-	1	Enquire
