LEFT HAND CYLINDER HEAD of Ferrari Ferrari 458 Spider

View All

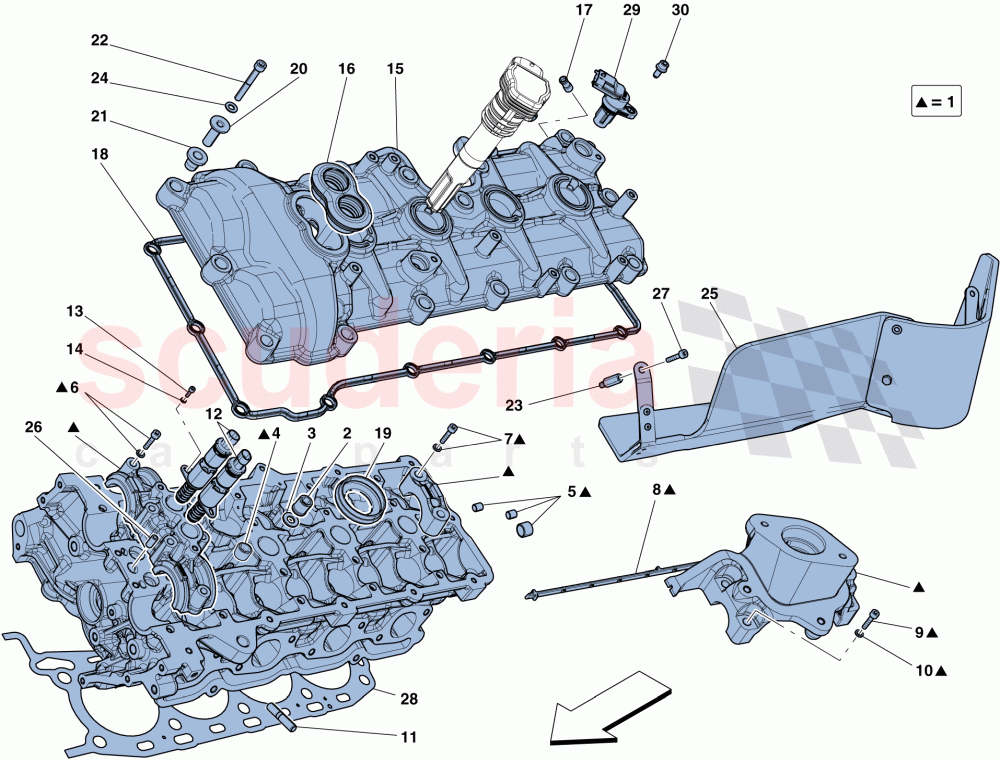

Ferrari 458 Spider - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	248677	LH HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282756	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	Enquire	To Order
	199760	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243721	SCREW WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239614	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	Enquire	To Order
	239502	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250893	LH CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272276	THREADED CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251234	LH HEAD COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261544	BUSHING	Enquire	To Order
	261543	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203102	Rubber Bushing	Enquire	ARRIVING SOON
	239748	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213129	SCREW	Enquire	To Order
	239501	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260007	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260160	LH HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	200458	NON RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224573	TIMING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	248677	LH HEAD	248677 LH HEAD	-	1	Enquire
2	321187	NUT	321187 NUT	-	10	Enquire
3	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5	-	10	Enquire
4	282756	THREADED PLUG	282756 THREADED PLUG	-	6	Enquire
5	282755	THREADED PLUG	282755 THREADED PLUG D. 10 X 1.25	-	4	Enquire
5	199760	THREADED PLUG	199760 THREADED PLUG D. 6 X 1	-	4	Enquire
6	243721	SCREW WITH WASHER	243721 SCREW WITH WASHER	-	6	Enquire
7	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	-	12	Enquire
8	239614	GASKET	239614 GASKET	-	1	Enquire
9	243719	ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35	243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 M6 X 35	-	4	Enquire
9	239502	SCREW	239502 SCREW M6 X 25	-	1	Enquire
10	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
11	211641	STUD BOLT	211641 STUD BOLT	-	8	Enquire
12	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	-	2	Enquire
13	14304124	SCREW	14304124 SCREW	-	2	Enquire
14	11181574	WASHER	11181574 WASHER	-	2	Enquire
15	250893	LH CYLINDER HEAD COVER	250893 LH CYLINDER HEAD COVER	-	1	Enquire
16	229353	SOLENOID VALVE GASKET	229353 SOLENOID VALVE GASKET	-	1	Enquire
17	272276	THREADED CONNECTOR	272276 THREADED CONNECTOR	-	1	Enquire
18	251234	LH HEAD COVER GASKET	251234 LH HEAD COVER GASKET	-	1	Enquire
19	223982	SPARK PLUG TUBE SEAL	223982 SPARK PLUG TUBE SEAL	-	4	Enquire
20	261544	BUSHING	261544 BUSHING D. 6.1 X 20 X 17.4	-	3	Enquire
20	261543	BUSHING	261543 BUSHING D. 6.1 X 20 X 29.4	-	13	Enquire
21	203102	Rubber Bushing ARRIVING SOON	203102 Rubber Bushing ARRIVING SOON	-	13	Enquire
21	239748	RUBBER BUSHING	239748 RUBBER BUSHING	-	3	Enquire
22	213129	SCREW	213129 SCREW M6 X 45	-	12	Enquire
22	239501	SCREW	239501 SCREW M6 X 30	-	3	Enquire
23	260007	STUD BOLT	260007 STUD BOLT	-	1	Enquire
24	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	16	Enquire
25	260160	LH HEAT SHIELD	260160 LH HEAT SHIELD	-	1	Enquire
26	200458	NON RETURN VALVE	200458 NON RETURN VALVE	-	2	Enquire
27	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	1	Enquire
27	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	4	Enquire
29	224573	TIMING SENSOR	224573 TIMING SENSOR	-	2	Enquire
30	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
