Power Steering Pump And Reservoir

Ferrari 458 Spider

Find Your Part

Ferrari 458 Spider - POWER STEERING PUMP AND RESERVOIR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
261937 POWER STEERING PIPE GUARD $10.89 To Order
297133 POWER STEERING PIPE GUARD $14.75 To Order
Photo Part No Description Price (each) Stock
276459 PIPE FROM RESERVOIR TO POWER STEERING PUMP $89.84 To Order
Photo Part No Description Price (each) Stock
13126370 COLLAR $1.33 IN STOCK
Photo Part No Description Price (each) Stock
276460 PIPE FROM UNDERFLOOR TO RESERVOIR $86.63 To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR $2.14 IN STOCK
262111 JUBILEE CLAMP $1.64 IN STOCK
Photo Part No Description Price (each) Stock
263052 DELIVERY PIPE $174.03 To Order
Photo Part No Description Price (each) Stock
231629 SCREW $0.65 IN STOCK
285494 SCREW $1.09 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
262828 HEAT SHIELD $192.54 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
242915 PRESSURE REGULATOR CYLINDER $38.49 To Order
Photo Part No Description Price (each) Stock
159539 RUBBER PIPE $4.47 To Order
Photo Part No Description Price (each) Stock
169456 R.H. PIPE VALVE TUBE $5.07 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
259135 POWER STEERING PUMP PIPE BRACKET $9.13 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
222606 BREATHER PIPE UNION $18.83 To Order
Photo Part No Description Price (each) Stock
277185 BREATHER PIPE FROM REGULATOR CYLINDER $51.33 To Order
Photo Part No Description Price (each) Stock
278083 PLATE $17.39 To Order
Photo Part No Description Price (each) Stock
282385 SCREW $0.41 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.80 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
157386 CLIP $0.16 IN STOCK
Photo Part No Description Price (each) Stock
277512 RUBBER PIPE $10.42 To Order
Photo Part No Description Price (each) Stock
278362 SHEATH $27.26 To Order
Photo Part No Description Price (each) Stock
204774 CLIP $0.50 To Order
Photo Part No Description Price (each) Stock
277566 POWER STEERING PUMP $1,207.53 IN STOCK
Photo Part No Description Price (each) Stock
261948 FRONT POWER STEERING PUMP MOUNT $1,395.98 To Order
Photo Part No Description Price (each) Stock
252563 REAR POWER STEERING PUMP MOUNT $131.56 To Order
Photo Part No Description Price (each) Stock
231629 SCREW $0.65 IN STOCK
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
243460 PULLEY FOR POWER STEERING PUMP $304.86 To Order
Photo Part No Description Price (each) Stock
231627 SCREW $0.65 IN STOCK
View All

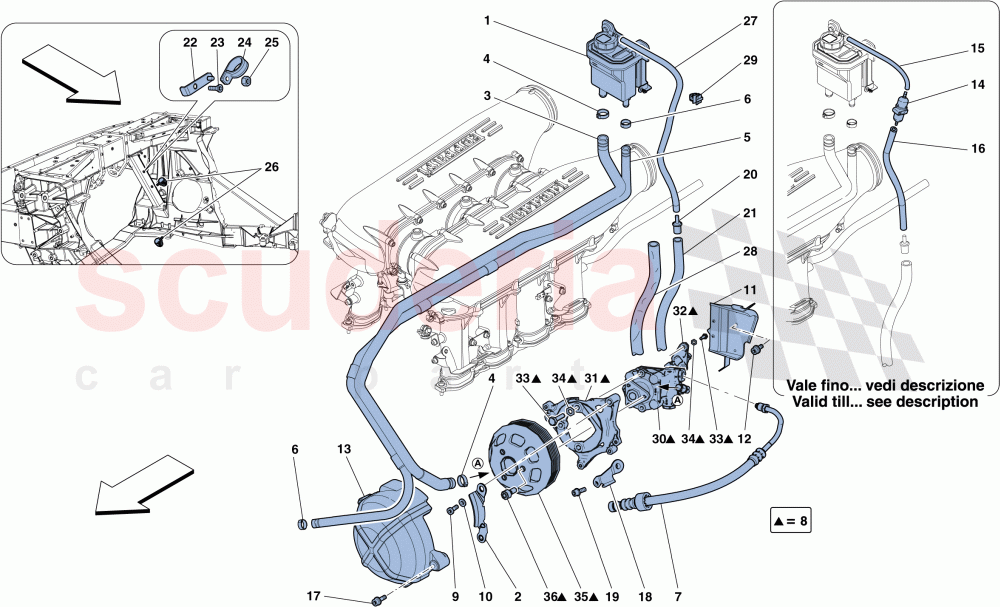

POWER STEERING PUMP AND RESERVOIR of Ferrari Ferrari 458 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 261937
POWER STEERING PIPE GUARD
Applicable up to engine No. 238196 		$10.89 1
2 297133
POWER STEERING PIPE GUARD
Applicable from engine No. 238197 		$14.75 1
3 276459
PIPE FROM RESERVOIR TO POWER STEERING PUMP 		$89.84 (28.3% off) 1
4 13126370
COLLAR
IN STOCK 		$1.33 2
5 276460
PIPE FROM UNDERFLOOR TO RESERVOIR 		$86.63 1
6 13127070
COLLAR
IN STOCK 		$2.14 2
6 262111
JUBILEE CLAMP
No longer supplied; Replaced by 13126070
IN STOCK 		$1.64 2
7 263052
DELIVERY PIPE 		$174.03 1
9 231629
SCREW
M8 X 30
IN STOCK 		$0.65 (31.6% off) 1
9 285494
SCREW
M8 X 45 		$1.09 2
10 11193874
WASHER
IN STOCK 		$0.06 2
11 262828
HEAT SHIELD 		$192.54 1
12 248334
SCREW
M6 X 14 		$0.68 3
14 242915
PRESSURE REGULATOR CYLINDER
Applicable up to Ass. No. 105478 		$38.49 (26.9% off) 1
15 159539
RUBBER PIPE
Applicable up to Ass. No. 105478 		$4.47 1
16 169456
R.H. PIPE VALVE TUBE
Applicable up to Ass. No. 105478 		$5.07 1
17 231620
SCREW
M6 X 30
IN STOCK 		$0.32 (8.6% off) 3
18 259135
POWER STEERING PUMP PIPE BRACKET 		$9.13 1
19 248334
SCREW 		$0.68 1
20 222606
BREATHER PIPE UNION 		$18.83 1
21 277185
BREATHER PIPE FROM REGULATOR CYLINDER 		$51.33 1
22 278083
PLATE 		$17.39 1
23 282385
SCREW 		$0.41 1
24 291225
P clip Bracket With Sheath
IN STOCK 		$4.80 1
25 14059290
FLANGED NUT M6
IN STOCK 		$1.43 1
26 157386
CLIP
IN STOCK 		$0.16 2
27 277512
RUBBER PIPE
Applicable from Ass. No. 105479 		$10.42 1
28 278362
SHEATH
Applicable from Ass. No. 105479 		$27.26 1
29 204774
CLIP
Applicable from Ass. No. 105479 		$0.50 1
30 277566
POWER STEERING PUMP
IN STOCK 		$1,207.53 1
31 261948
FRONT POWER STEERING PUMP MOUNT 		$1,395.98 1
32 252563
REAR POWER STEERING PUMP MOUNT 		$131.56 1
33 231629
SCREW
IN STOCK 		$0.65 (31.6% off) 5
34 11193874
WASHER
IN STOCK 		$0.06 5
35 243460
PULLEY FOR POWER STEERING PUMP 		$304.86 1
36 231627
SCREW
IN STOCK 		$0.65 (7.1% off) 3
