Name: INJECTION - IGNITION SYSTEM
Rating: 5.0 (1 reviews)

INJECTION - IGNITION SYSTEM of Ferrari Ferrari 458 Spider

View All

Ferrari 458 Spider - INJECTION - IGNITION SYSTEM

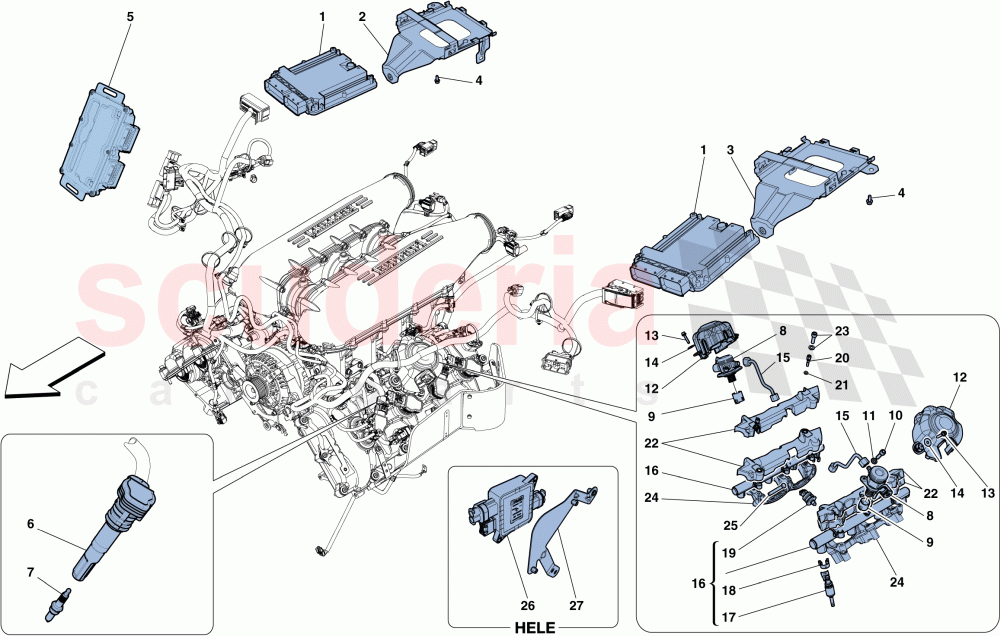

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	238263	IGNITION ECU	$3,125.74	To Order

Photo	Part No	Description	Price (each)	Stock
	261838	RH BRACKET	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	261839	LH BRACKET	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	262550	IONISING KNOCK SENSOR CONTROL UNIT	$1,444.12	To Order

Photo	Part No	Description	Price (each)	Stock
	297423	SPARK PLUG	$36.44	To Order

Photo	Part No	Description	Price (each)	Stock
	290030	FUEL PUMP	$803.97	To Order

Photo	Part No	Description	Price (each)	Stock
	212797	CUP	$68.98	To Order

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	247537	SOUNDPROOFING COVER	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	247674	PIPE	$449.27	To Order

Photo	Part No	Description	Price (each)	Stock
	250777	COMPL. INJECTOR PIPE	$3,550.96	To Order

Photo	Part No	Description	Price (each)	Stock
	250775	ELECTRO-INJECTOR	$243.85	To Order
	250776	ELECTRO-INJECTOR	$220.62	To Order

Photo	Part No	Description	Price (each)	Stock
	231926	CLIP	$7.73	To Order

Photo	Part No	Description	Price (each)	Stock
	247694	PRESSURE SENSOR	$182.36	To Order

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	11194374	WASHER	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	256322	INJECTOR COVER	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	239946	FUEL RAIL MOUNTING	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	264935	PWM COMMAND SIGNAL FOR FUEL PUMPS	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	278268	ECU MOUNTING BRACKET	$97.86	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	238263	IGNITION ECU	238263 IGNITION ECU Unprogrammed	$3,125.74	2
2	261838	RH BRACKET	261838 RH BRACKET	$97.86	1
3	261839	LH BRACKET	261839 LH BRACKET	$97.86	1
4	248334	SCREW	248334 SCREW M6 X 14	$0.68	6
5	262550	IONISING KNOCK SENSOR CONTROL UNIT	262550 IONISING KNOCK SENSOR CONTROL UNIT Unprogrammed	$1,444.12	1
7	297423	SPARK PLUG	297423 SPARK PLUG	$36.44	8
8	290030	FUEL PUMP	290030 FUEL PUMP	$803.97	2
9	212797	CUP	212797 CUP	$68.98	2
10	14305334	SCREW	14305334 SCREW M6 X 20	$0.21 MSRP: ~~0.45~~ (53.3% off)	4
11	12639724	WASHER	12639724 WASHER	$0.05 MSRP: ~~0.50~~ (90% off)	4
12	247537	SOUNDPROOFING COVER	247537 SOUNDPROOFING COVER	$97.86	2
13	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	4
14	68040000	WASHER	68040000 WASHER	$0.15	4
15	247674	PIPE	247674 PIPE	$449.27	2
16	250777	COMPL. INJECTOR PIPE	250777 COMPL. INJECTOR PIPE	$3,550.96	2
17	250775	ELECTRO-INJECTOR	250775 ELECTRO-INJECTOR Opposite pressure sensor side; Supplied together with COMPL. INJECTION PIPE pos.16; No longer supplied	$243.85	4
17	250776	ELECTRO-INJECTOR	250776 ELECTRO-INJECTOR Pressure sensor side; Supplied together with COMPL. INJECTION PIPE pos.16; No longer supplied	$220.62	4
18	231926	CLIP	231926 CLIP Supplied together with COMPL. INJECTION PIPE pos.16; No longer supplied	$7.73	8
19	247694	PRESSURE SENSOR	247694 PRESSURE SENSOR Supplied together with COMPL. INJECTION PIPE pos.16; No longer supplied	$182.36	2
20	339948	STUD BOLT	339948 STUD BOLT	$20.84	4
21	11194374	WASHER	11194374 WASHER	$0.60	4
22	256322	INJECTOR COVER	256322 INJECTOR COVER	$85.03	2
23	231619	SCREW	231619 SCREW M6 X 20	$0.31	4
24	239946	FUEL RAIL MOUNTING	239946 FUEL RAIL MOUNTING	$176.49	2
25	231624	SCREW	231624 SCREW M6 X 45	$0.44	12
26	264935	PWM COMMAND SIGNAL FOR FUEL PUMPS	264935 PWM COMMAND SIGNAL FOR FUEL PUMPS Applicable for HELE	$465.32 MSRP: ~~604.42~~ (23% off)	1
27	278268	ECU MOUNTING BRACKET	278268 ECU MOUNTING BRACKET Applicable for HELE	$97.86	1
