ALTERNATOR - STARTER MOTOR of Ferrari Ferrari 458 Spider

View All

Ferrari 458 Spider - ALTERNATOR - STARTER MOTOR

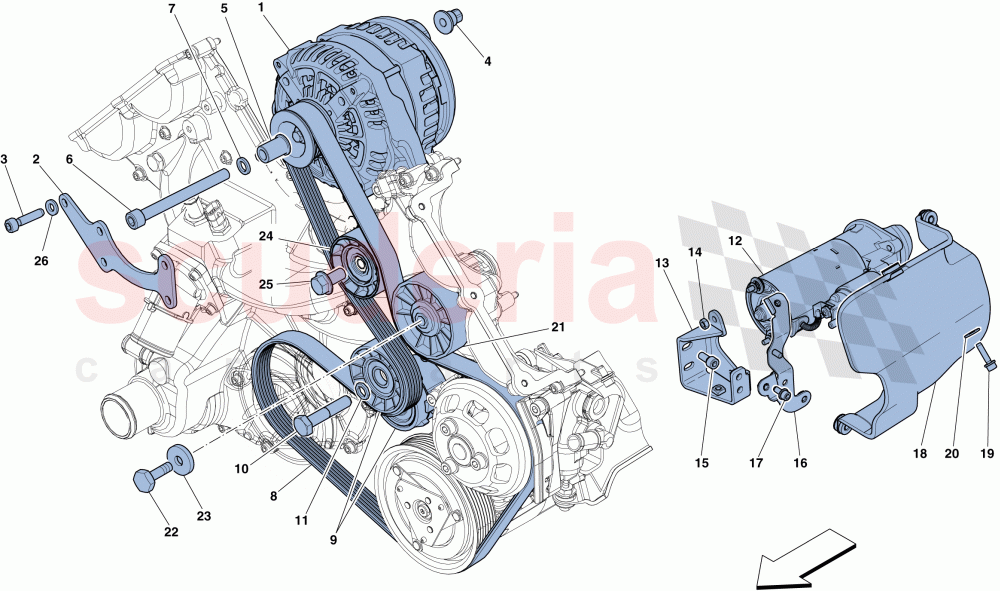

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	325298	ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253092	ALTERNATOR BRACE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257220	THREADED BUSHING	Enquire	To Order
	257217	THREADED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247088	THREADED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308724	SCREW	Enquire	To Order
	66649300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251220	6 Ribs Control Belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8332052	BELT TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268567	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	962187	STARTER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277661	REAR STARTER MOTOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260062	SHIELD FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259433	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227894	BELT TIGHTENING PULLEY	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	11343821	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238590	IDLER PULLEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260886	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550224	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	325298	ALTERNATOR	325298 ALTERNATOR	-	1	Enquire
2	253092	ALTERNATOR BRACE BRACKET	253092 ALTERNATOR BRACE BRACKET	-	1	Enquire
3	231620	SCREW	231620 SCREW M6 X 25	-	3	Enquire
4	257220	THREADED BUSHING	257220 THREADED BUSHING On LH head.	-	1	Enquire
4	257217	THREADED BUSHING	257217 THREADED BUSHING On RH head.	-	1	Enquire
5	247088	THREADED BUSHING	247088 THREADED BUSHING	-	2	Enquire
6	14308724	SCREW	14308724 SCREW M10 X 1.25 X 100	-	1	Enquire
6	66649300	SCREW	66649300 SCREW M10 X 1.25 X 70	-	1	Enquire
7	10569474	WASHER	10569474 WASHER	-	2	Enquire
8	251220	6 Ribs Control Belt	251220 6 Ribs Control Belt	-	1	Enquire
9	8332052	BELT TENSIONER	8332052 BELT TENSIONER	-	1	Enquire
10	268567	SCREW	268567 SCREW M8 X 60	-	1	Enquire
11	11193874	WASHER	11193874 WASHER	-	1	Enquire
12	962187	STARTER MOTOR	962187 STARTER MOTOR	-	1	Enquire
13	277661	REAR STARTER MOTOR MOUNTING BRACKET	277661 REAR STARTER MOTOR MOUNTING BRACKET	-	1	Enquire
14	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
15	248471	SCREW	248471 SCREW	-	2	Enquire
16	260062	SHIELD FASTENER BRACKET	260062 SHIELD FASTENER BRACKET	-	1	Enquire
17	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	2	Enquire
18	259433	HEAT SHIELD	259433 HEAT SHIELD	-	1	Enquire
19	231620	SCREW	231620 SCREW M6 X 25	-	2	Enquire
19	231620	SCREW	231620 SCREW M6 X 30	-	1	Enquire
20	12643724	WASHER	12643724 WASHER	-	3	Enquire
21	227894	BELT TIGHTENING PULLEY ARRIVING SOON	227894 BELT TIGHTENING PULLEY ARRIVING SOON	-	1	Enquire
22	11343821	SCREW	11343821 SCREW	-	1	Enquire
23	10569474	WASHER	10569474 WASHER	-	1	Enquire
24	238590	IDLER PULLEY	238590 IDLER PULLEY	-	1	Enquire
25	260886	Screw	260886 Screw	-	1	Enquire
26	13550224	WASHER	13550224 WASHER	-	5	Enquire
