Front Suspension - Shock Absorber And Brake Disc

Ferrari 458 Spider

Find Your Part

Ferrari 458 Spider - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
255863 FRONT SHOCK ABSORBER Enquire IN STOCK
Photo Part No Description Price (each) Stock
220351 RING NUT Enquire IN STOCK
263196 RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
251483 SPRING RETAINER Enquire IN STOCK
263195 CAP Enquire To Order
Photo Part No Description Price (each) Stock
220383 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
220377 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
220378 NUT Enquire To Order
Photo Part No Description Price (each) Stock
220382 NUT Enquire To Order
Photo Part No Description Price (each) Stock
234671 UPPER CONNECTOR Enquire To Order
Photo Part No Description Price (each) Stock
254942 ENDSTOP BUSH Enquire To Order
Photo Part No Description Price (each) Stock
250394 STOP CAP Enquire To Order
Photo Part No Description Price (each) Stock
212517 UPPER SPACER Enquire IN STOCK
Photo Part No Description Price (each) Stock
188996 LOWER SPACER Enquire IN STOCK
Photo Part No Description Price (each) Stock
157630 BALL JOINT Enquire IN STOCK
Photo Part No Description Price (each) Stock
247985 FRONT SUSPENSION SPRING Enquire To Order
256059 FRONT SUSPENSION SPRING Enquire IN STOCK
Photo Part No Description Price (each) Stock
237297 SCREW M12 X 1.25 X 8 Enquire IN STOCK
Photo Part No Description Price (each) Stock
237821 BUSH Enquire IN STOCK
Photo Part No Description Price (each) Stock
12646921 WASHER Enquire IN STOCK
Photo Part No Description Price (each) Stock
255271 NUT Enquire IN STOCK
Photo Part No Description Price (each) Stock
104370 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
228131 SCREW Enquire IN STOCK
Photo Part No Description Price (each) Stock
228132 SPRING WASHER Enquire To Order
Photo Part No Description Price (each) Stock
254092 STABILISER BAR Enquire To Order
Photo Part No Description Price (each) Stock
236241 BUSH FOR BAR Enquire To Order
Photo Part No Description Price (each) Stock
245822 BUSHING RETAINER PLATE Enquire IN STOCK
Photo Part No Description Price (each) Stock
10791014 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire IN STOCK
Photo Part No Description Price (each) Stock
246120 BALL-JOINT TIE-ROD Enquire IN STOCK
246119 BALL-JOINT TIE-ROD Enquire To Order
Photo Part No Description Price (each) Stock
264117 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
248790 SCREW M12 X 1.25 X 50 Enquire To Order
Photo Part No Description Price (each) Stock
260259 FRONT RH DISC SHIELD Enquire To Order
260258 FRONT LH DISC SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
250657 SCREW M6 X 14 Enquire IN STOCK
Photo Part No Description Price (each) Stock
262384 ACTUATOR Enquire IN STOCK
300214 ACTUATOR Enquire IN STOCK
Photo Part No Description Price (each) Stock
260409 HOSE FOR VEHICLE LIFT Enquire IN STOCK
Photo Part No Description Price (each) Stock
261587 HOSE Enquire IN STOCK
Photo Part No Description Price (each) Stock
259638 GASKET 8.7 - 14 Enquire IN STOCK
Photo Part No Description Price (each) Stock
268474 DUST COVER Enquire IN STOCK
View All

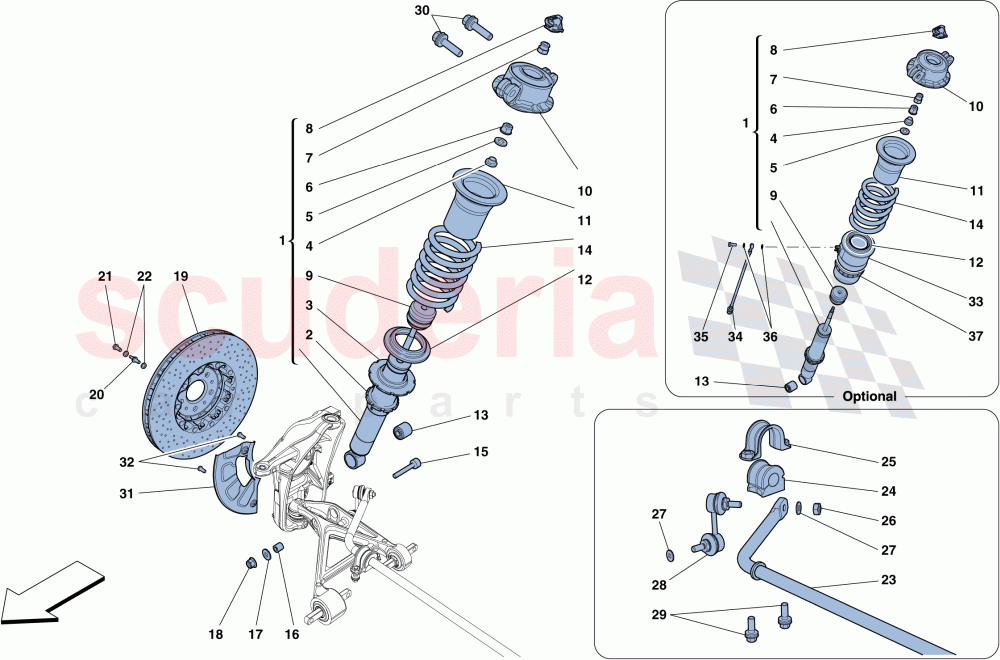

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 458 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 255863
FRONT SHOCK ABSORBER
IN STOCK 		- 2 Enquire
2 220351
RING NUT
IN STOCK 		- 2 Enquire
2 263196
RING NUT
Vehicle lift system 		- 2 Enquire
3 251483
SPRING RETAINER
IN STOCK 		- 2 Enquire
3 263195
CAP
Vehicle lift system 		- 2 Enquire
4 220383
BUSH 		- 2 Enquire
5 220377
WASHER 		- 2 Enquire
6 220378
NUT 		- 2 Enquire
7 220382
NUT 		- 2 Enquire
8 234671
UPPER CONNECTOR 		- 2 Enquire
9 254942
ENDSTOP BUSH 		- 2 Enquire
10 250394
STOP CAP 		- 2 Enquire
11 212517
UPPER SPACER
IN STOCK 		- 2 Enquire
12 188996
LOWER SPACER
IN STOCK 		- 2 Enquire
13 157630
BALL JOINT
IN STOCK 		- 2 Enquire
14 247985
FRONT SUSPENSION SPRING 		- 2 Enquire
14 256059
FRONT SUSPENSION SPRING
Vehicle lift system
IN STOCK 		- 2 Enquire
15 237297
SCREW M12 X 1.25 X 8
IN STOCK 		- 2 Enquire
16 237821
BUSH
IN STOCK 		- 2 Enquire
17 12646921
WASHER
IN STOCK 		- 2 Enquire
18 255271
NUT
IN STOCK 		- 2 Enquire
20 104370
SCREW
IN STOCK 		- 2 Enquire
21 228131
SCREW
IN STOCK 		- 2 Enquire
22 228132
SPRING WASHER 		- 4 Enquire
23 254092
STABILISER BAR 		- 1 Enquire
24 236241
BUSH FOR BAR 		- 2 Enquire
25 245822
BUSHING RETAINER PLATE
IN STOCK 		- 2 Enquire
26 10791014
NUT 		- 2 Enquire
27 12601474
WAVY WASHER 10MM
IN STOCK 		- 4 Enquire
28 246120
BALL-JOINT TIE-ROD
IN STOCK 		- 1 Enquire
28 246119
BALL-JOINT TIE-ROD 		- 1 Enquire
29 264117
SCREW 		- 4 Enquire
30 248790
SCREW M12 X 1.25 X 50 		- 4 Enquire
31 260259
FRONT RH DISC SHIELD 		- 1 Enquire
31 260258
FRONT LH DISC SHIELD 		- 1 Enquire
32 250657
SCREW M6 X 14
IN STOCK 		- 4 Enquire
33 262384
ACTUATOR
Vehicle lift system; Applicable for shock absorber 260057; Applicable up to Ass. No. 124920
IN STOCK 		- 2 Enquire
33 300214
ACTUATOR
Vehicle lift system; Applicable for shock absorber 301450; Applicable from Ass. No. 124921
IN STOCK 		- 2 Enquire
34 260409
HOSE FOR VEHICLE LIFT
Vehicle lift system
IN STOCK 		- 2 Enquire
35 261587
HOSE
Vehicle lift system
IN STOCK 		- 2 Enquire
36 259638
GASKET 8.7 - 14
Vehicle lift system
IN STOCK 		- 4 Enquire
37 268474
DUST COVER
Vehicle lift system; Applicable for shock absorber 260057 and actuator 262384; Applicable up to Ass. No. 124920
IN STOCK 		- 2 Enquire
