BRAKE SYSTEM

Find Your Part

Ferrari 458 Spider - BRAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
273798 HYDRAULIC UNIT $6,508.23 To Order
Photo Part No Description Price (each) Stock
262514 BRACKET $192.54 To Order
276926 BRACKET $224.63 To Order
275573 BRACKET $160.44 To Order
Photo Part No Description Price (each) Stock
246864 GROMMET $3.81 To Order
Photo Part No Description Price (each) Stock
246917 SHIM $6.29 To Order
Photo Part No Description Price (each) Stock
12625224 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.79 To Order
13839224 SCREW $2.79 To Order
13839224 SCREW $2.79 To Order
Photo Part No Description Price (each) Stock
307688 YAW SENSOR $291.76 To Order
317783 YAW SENSOR $559.21 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
263877 FRONT RH BRAKE PIPE $200.67 To Order
262438 FRONT RH BRAKE PIPE $117.12 To Order
Photo Part No Description Price (each) Stock
267850 FRONT LH BRAKE PIPE $81.82 To Order
263876 FRONT LH BRAKE PIPE $101.07 To Order
Photo Part No Description Price (each) Stock
263446 REAR RH BRAKE PIPE $72.19 To Order
262436 REAR RH BRAKE PIPE $74.52 To Order
Photo Part No Description Price (each) Stock
269059 REAR LH BRAKE PIPE $72.19 To Order
262435 REAR LH BRAKE PIPE $72.19 To Order
Photo Part No Description Price (each) Stock
279894 PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT $88.24 To Order
268086 PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT $90.30 To Order
Photo Part No Description Price (each) Stock
262401 PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT $577.64 To Order
268085 PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT $86.63 To Order
Photo Part No Description Price (each) Stock
265345 UNDERFLOOR REAR RH BRAKE PIPE $64.17 To Order
Photo Part No Description Price (each) Stock
262440 UNDERFLOOR REAR LH BRAKE PIPE $64.17 To Order
Photo Part No Description Price (each) Stock
263892 REAR SUBFRAME RH BRAKE PIPE $59.35 To Order
Photo Part No Description Price (each) Stock
263893 REAR SUBFRAME LH BRAKE PIPE $54.54 To Order
Photo Part No Description Price (each) Stock
254195 CLIP $1.56 To Order
Photo Part No Description Price (each) Stock
262737 RUBBER RETAINER $6.56 To Order
Photo Part No Description Price (each) Stock
249650 CLIP $0.41 To Order
Photo Part No Description Price (each) Stock
249649 CLIP $0.83 To Order
Photo Part No Description Price (each) Stock
212645 CLIP $3.19 To Order
Photo Part No Description Price (each) Stock
279762 CLAMP $0.50 To Order
Photo Part No Description Price (each) Stock
278412 RETAINER BLOCK FOR 2 PIPES $12.33 To Order
Photo Part No Description Price (each) Stock
279844 RETAINER PLATE $5.72 To Order
Photo Part No Description Price (each) Stock
67315400 WASHER $0.44 To Order
Photo Part No Description Price (each) Stock
232869 BUSH $42.98 To Order
Photo Part No Description Price (each) Stock
235682 PIPE CLIP $0.71 To Order
View All

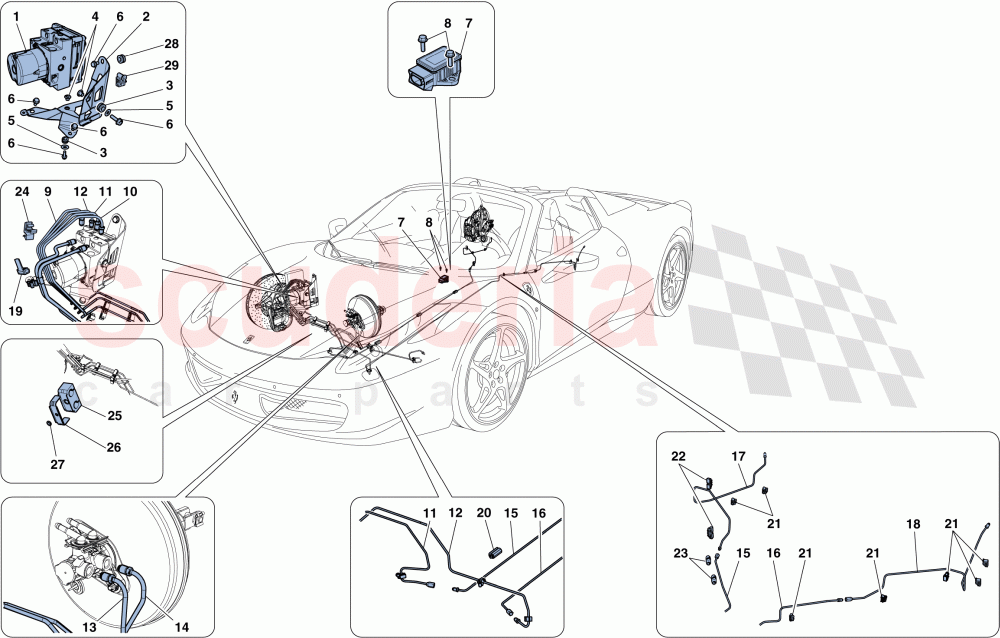

BRAKE SYSTEM of Ferrari Ferrari 458 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 273798
HYDRAULIC UNIT 		$6,508.23 (1.6% off) 1
2 262514
BRACKET
Applicable for GD; Applicable up to Ass. No. 108035 		$192.54 1
2 276926
BRACKET
Applicable for GD; Applicable from Ass. No. 108036 		$224.63 1
2 275573
BRACKET
For vehicles up to Ass.ly No. 108035, also order pipe 279894; Not for GD 		$160.44 1
3 246864
GROMMET 		$3.81 3
4 246917
SHIM 		$6.29 3
5 12625224
WASHER 		$0.06 (76% off) 3
6 13839224
SCREW
M8 X 25; Applicable from Ass. No. 108036 		$2.79 3
6 13839224
SCREW
M8 X 25 		$2.79 3
6 13839224
SCREW
M8 X 16; Applicable up to Ass. No. 108035 		$2.79 3
7 307688
YAW SENSOR
Applicable until depletion 		$291.76 1
7 317783
YAW SENSOR
Applicable after depletion of 206070 		$559.21 1
8 16286124
SCREW 		$0.37 2
9 263877
FRONT RH BRAKE PIPE
Not for GD 		$200.67 1
9 262438
FRONT RH BRAKE PIPE
Applicable for GD 		$117.12 1
10 267850
FRONT LH BRAKE PIPE
Applicable for GD 		$81.82 1
10 263876
FRONT LH BRAKE PIPE
Not for GD 		$101.07 1
11 263446
REAR RH BRAKE PIPE
Not for GD 		$72.19 1
11 262436
REAR RH BRAKE PIPE
Applicable for GD 		$74.52 1
12 269059
REAR LH BRAKE PIPE
Not for GD 		$72.19 1
12 262435
REAR LH BRAKE PIPE
Applicable for GD 		$72.19 1
13 279894
PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT
For vehicles up to Ass.ly No. 108035, also order bracket 275573; Not for GD 		$88.24 1
13 268086
PIPE FROM FRONT BRAKE PUMP TO HYDRAULIC UNIT
Applicable for GD 		$90.30 1
14 262401
PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT
Not for GD 		$577.64 1
14 268085
PIPE FROM REAR BRAKE PUMP TO HYDRAULIC UNIT
Applicable for GD 		$86.63 1
15 265345
UNDERFLOOR REAR RH BRAKE PIPE 		$64.17 1
16 262440
UNDERFLOOR REAR LH BRAKE PIPE 		$64.17 1
17 263892
REAR SUBFRAME RH BRAKE PIPE 		$59.35 1
18 263893
REAR SUBFRAME LH BRAKE PIPE 		$54.54 1
19 254195
CLIP 		$1.56 1
20 262737
RUBBER RETAINER 		$6.56 7
21 249650
CLIP 		$0.41 7
22 249649
CLIP 		$0.83 2
23 212645
CLIP 		$3.19 2
24 279762
CLAMP 		$0.50 2
25 278412
RETAINER BLOCK FOR 2 PIPES
Applicable from Ass. No. 108036 		$12.33 3
26 279844
RETAINER PLATE
Applicable from Ass. No. 108036 		$5.72 3
27 67315400
WASHER
Applicable from Ass. No. 108036 		$0.44 3
28 232869
BUSH
Applicable from Ass. No. 108036 		$42.98 3
29 235682
PIPE CLIP
Applicable for GD 		$0.71 1
