COOLING - RADIATORS AND AIR DUCTS of Ferrari Ferrari 458 Spider

View All

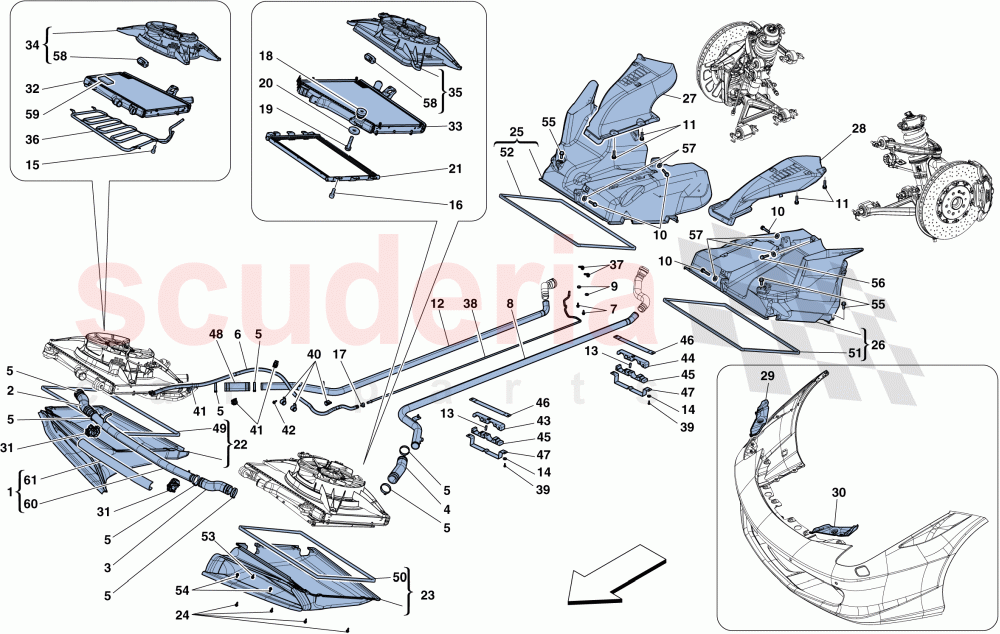

Ferrari 458 Spider - COOLING - RADIATORS AND AIR DUCTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	265668	WATER PIPE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	251271	RUBBER CONNECTOR PIPE TO RH SIDE RADIATORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251273	RUBBER CONNECTOR PIPE TO LH SIDE RADIATORS	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262473	HOSE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	IN STOCK
	262114	COLLAR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	267276	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265889	WATER DELIVERY PIPE	Enquire	To Order
	262496	WATER DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10903224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18750324	SCREW M6 X 18	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262497	WATER RETURN PIPE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	263070	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14497704	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	747853	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	IN STOCK
	747853	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237478	MOUNTING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	849234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247751	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262836	CONDENSER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82911000	Lower RH Duct	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82910900	Lower LH Duct	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16285224	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82910800	RH Upper Duct Lower Section	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82910700	Upper LH Duct, Lower Section	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82745100	UPPER RH DUCT, UPPER SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82745800	UPPER LH DUCT, UPPER SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83858200	TRIM FOR RH AIR INTAKE UNDER LID	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	83858300	TRIM FOR LH AIR INTAKE UNDER LID	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	258919	CLIP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	270265	RH Water Radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262837	LH Water Radiator	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	275044	RH ELECTRIC FAN	Enquire	To Order
	270923	RH ELECTRIC FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275045	LH ELECTRIC FAN	Enquire	IN STOCK
	270924	LH ELECTRIC FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266603	COOLING COIL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262478	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	808986	CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	263071	UPPER PILLORY BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264829	UPPER PILLORY BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263072	LOWER PILLORY BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263068	UPPER BRACKET FOR RETAINER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263069	LOWER BRACKET FOR RETAINER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237511	HOSE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85684500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85684500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85684500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85684500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15699804	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10903024	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	263140	RESISTOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	84514800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	265668	WATER PIPE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293973	INSULATION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	265668	WATER PIPE IN STOCK	265668 WATER PIPE After depletion, order loose components; Applicable until depletion IN STOCK	-	1	Enquire
2	251271	RUBBER CONNECTOR PIPE TO RH SIDE RADIATORS	251271 RUBBER CONNECTOR PIPE TO RH SIDE RADIATORS	-	1	Enquire
3	251273	RUBBER CONNECTOR PIPE TO LH SIDE RADIATORS IN STOCK	251273 RUBBER CONNECTOR PIPE TO LH SIDE RADIATORS IN STOCK	-	1	Enquire
4	262473	HOSE IN STOCK	262473 HOSE IN STOCK	-	1	Enquire
5	296781	COLLAR 30-45MM IN STOCK	296781 COLLAR 30-45MM Applicable until depletion IN STOCK	-	8	Enquire
5	262114	COLLAR IN STOCK	262114 COLLAR Applicable after depletion of 10861170 IN STOCK	-	8	Enquire
6	267276	VENT PIPE	267276 VENT PIPE	-	1	Enquire
7	16286124	SCREW	16286124 SCREW	-	2	Enquire
8	265889	WATER DELIVERY PIPE	265889 WATER DELIVERY PIPE Not for USA, CDN	-	1	Enquire
8	262496	WATER DELIVERY PIPE	262496 WATER DELIVERY PIPE Applicable for USA, CDN	-	1	Enquire
9	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	2	Enquire
10	10903224	SCREW	10903224 SCREW	-	4	Enquire
11	18750324	SCREW M6 X 18 IN STOCK	18750324 SCREW M6 X 18 IN STOCK	-	8	Enquire
12	262497	WATER RETURN PIPE IN STOCK	262497 WATER RETURN PIPE IN STOCK	-	1	Enquire
13	263070	BUSH	263070 BUSH	-	3	Enquire
14	14497704	WASHER IN STOCK	14497704 WASHER IN STOCK	-	6	Enquire
15	747853	SCREW	747853 SCREW M5 X 20	-	2	Enquire
16	231620	SCREW IN STOCK	231620 SCREW M5 X 25 IN STOCK	-	4	Enquire
16	747853	SCREW	747853 SCREW M5 X 20	-	2	Enquire
17	13126970	COLLAR	13126970 COLLAR	-	2	Enquire
18	237478	MOUNTING IN STOCK	237478 MOUNTING IN STOCK	-	6	Enquire
19	849234	SCREW	849234 SCREW	-	6	Enquire
20	247751	WASHER IN STOCK	247751 WASHER IN STOCK	-	6	Enquire
21	262836	CONDENSER IN STOCK	262836 CONDENSER IN STOCK	-	1	Enquire
22	82911000	Lower RH Duct IN STOCK	82911000 Lower RH Duct IN STOCK	-	1	Enquire
23	82910900	Lower LH Duct IN STOCK	82910900 Lower LH Duct IN STOCK	-	1	Enquire
24	16285224	SCREW IN STOCK	16285224 SCREW M5 X 20 IN STOCK	-	8	Enquire
25	82910800	RH Upper Duct Lower Section	82910800 RH Upper Duct Lower Section	-	1	Enquire
26	82910700	Upper LH Duct, Lower Section IN STOCK	82910700 Upper LH Duct, Lower Section IN STOCK	-	1	Enquire
27	82745100	UPPER RH DUCT, UPPER SECTION	82745100 UPPER RH DUCT, UPPER SECTION	-	1	Enquire
28	82745800	UPPER LH DUCT, UPPER SECTION	82745800 UPPER LH DUCT, UPPER SECTION	-	1	Enquire
29	83858200	TRIM FOR RH AIR INTAKE UNDER LID IN STOCK	83858200 TRIM FOR RH AIR INTAKE UNDER LID IN STOCK	-	1	Enquire
30	83858300	TRIM FOR LH AIR INTAKE UNDER LID IN STOCK	83858300 TRIM FOR LH AIR INTAKE UNDER LID IN STOCK	-	1	Enquire
31	258919	CLIP IN STOCK	258919 CLIP IN STOCK	-	2	Enquire
32	270265	RH Water Radiator	270265 RH Water Radiator	-	1	Enquire
33	262837	LH Water Radiator IN STOCK	262837 LH Water Radiator IN STOCK	-	1	Enquire
34	275044	RH ELECTRIC FAN	275044 RH ELECTRIC FAN Not for HELE	-	1	Enquire
34	270923	RH ELECTRIC FAN	270923 RH ELECTRIC FAN Applicable for HELE	-	1	Enquire
35	275045	LH ELECTRIC FAN IN STOCK	275045 LH ELECTRIC FAN Not for HELE IN STOCK	-	1	Enquire
35	270924	LH ELECTRIC FAN	270924 LH ELECTRIC FAN Applicable for HELE	-	1	Enquire
36	266603	COOLING COIL IN STOCK	266603 COOLING COIL IN STOCK	-	1	Enquire
37	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	-	2	Enquire
38	262478	PIPE	262478 PIPE	-	1	Enquire
39	14302424	SCREW IN STOCK	14302424 SCREW IN STOCK	-	6	Enquire
40	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	-	3	Enquire
41	808986	CLAMP IN STOCK	808986 CLAMP IN STOCK	-	3	Enquire
42	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER IN STOCK	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18 IN STOCK	-	3	Enquire
43	263071	UPPER PILLORY BLOCK	263071 UPPER PILLORY BLOCK	-	2	Enquire
44	264829	UPPER PILLORY BLOCK	264829 UPPER PILLORY BLOCK	-	1	Enquire
45	263072	LOWER PILLORY BLOCK	263072 LOWER PILLORY BLOCK	-	3	Enquire
46	263068	UPPER BRACKET FOR RETAINER BLOCK	263068 UPPER BRACKET FOR RETAINER BLOCK	-	3	Enquire
47	263069	LOWER BRACKET FOR RETAINER BLOCK	263069 LOWER BRACKET FOR RETAINER BLOCK	-	3	Enquire
48	237511	HOSE IN STOCK	237511 HOSE IN STOCK	-	1	Enquire
49	85684500	GASKET	85684500 GASKET L=1 m	-	1	Enquire
50	85684500	GASKET	85684500 GASKET L=1 m	-	1	Enquire
51	85684500	GASKET	85684500 GASKET L=1 m	-	1	Enquire
52	85684500	GASKET	85684500 GASKET L=1 m	-	1	Enquire
53	15699804	SCREW IN STOCK	15699804 SCREW IN STOCK	-	2	Enquire
54	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 22 IN STOCK	-	4	Enquire
55	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 20 IN STOCK	-	4	Enquire
56	10903024	SCREW IN STOCK	10903024 SCREW IN STOCK	-	2	Enquire
57	14498801	WASHER IN STOCK	14498801 WASHER IN STOCK	-	6	Enquire
58	263140	RESISTOR IN STOCK	263140 RESISTOR Not for HELE IN STOCK	-	2	Enquire
59	84514800	GASKET	84514800 GASKET	-	1	Enquire
60	265668	WATER PIPE IN STOCK	265668 WATER PIPE IN STOCK	-	1	Enquire
61	293973	INSULATION	293973 INSULATION	-	1	Enquire
