Ferrari 458 Spider - FUEL SYSTEM PUMPS AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
254312 RH FUEL PUMP Enquire To Order
272086 FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
275314 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
254078 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
275998 FASTENER RING Enquire To Order
Photo Part No Description Price (each) Stock
237407 ANTI SPIT-BACK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
85833700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
254313 LH FUEL PUMP Enquire To Order
272087 LH FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
273540 COMPL. INCLINATION SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
239413 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
250480 INSPECTION CAP Enquire To Order
Photo Part No Description Price (each) Stock
272380 DELIVERY PIPE FUEL TANK TO INJECTORS Enquire To Order
272380 DELIVERY PIPE FUEL TANK TO INJECTORS Enquire To Order
Photo Part No Description Price (each) Stock
276001 FASTENER RING Enquire To Order
Photo Part No Description Price (each) Stock
13046011 NUT Enquire To Order
Photo Part No Description Price (each) Stock
191907 CLIP Enquire To Order
276436 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
290701 CHANNEL FASTENER BRACKET Enquire To Order
262216 CHANNEL FASTENER BRACKET Enquire To Order
280000 CHANNEL FASTENER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
262273 WIRING HARNESS FASTENER BRACKET Enquire To Order
291529 WIRING HARNESS FASTENER BRACKET Enquire To Order
View All

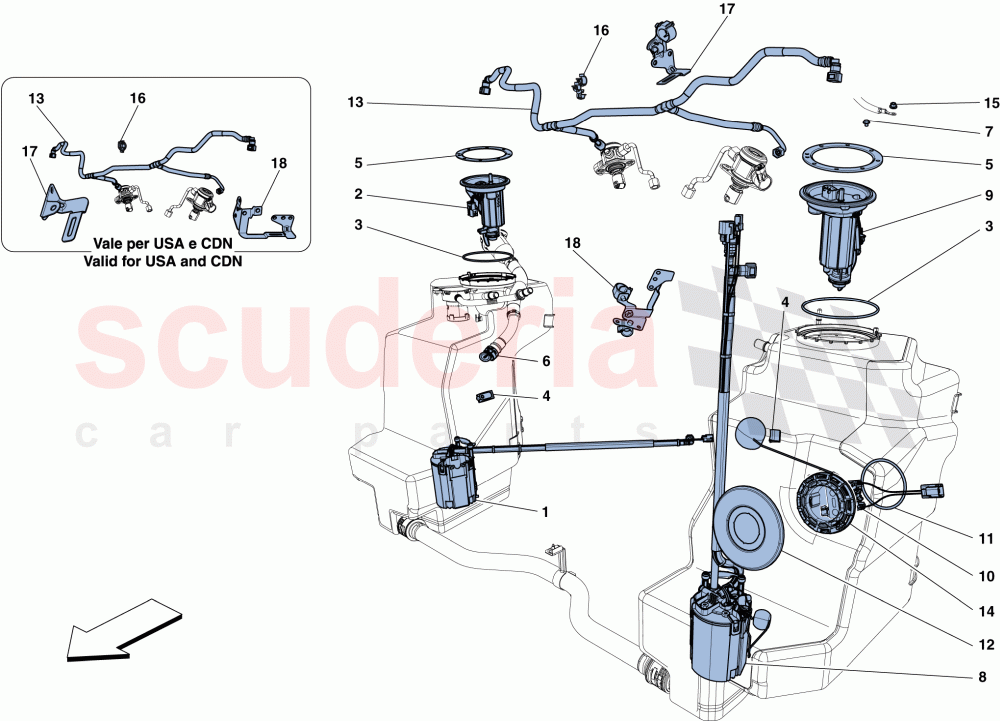

FUEL SYSTEM PUMPS AND PIPES of Ferrari Ferrari 458 Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 254312
RH FUEL PUMP
Not for HELE 		- 1 Enquire
1 272086
FUEL PUMP
Applicable for HELE 		- 1 Enquire
3 275314
O-RING 		- 2 Enquire
4 254078
CLIP 		- 2 Enquire
5 275998
FASTENER RING 		- 2 Enquire
6 237407
ANTI SPIT-BACK VALVE 		- 1 Enquire
7 85833700
SCREW
M5 X 16 		- 2 Enquire
8 254313
LH FUEL PUMP
Not for HELE 		- 1 Enquire
8 272087
LH FUEL PUMP
Applicable for HELE 		- 1 Enquire
10 273540
COMPL. INCLINATION SENSOR 		- 1 Enquire
11 239413
O-RING 		- 1 Enquire
12 250480
INSPECTION CAP 		- 1 Enquire
13 272380
DELIVERY PIPE FUEL TANK TO INJECTORS
Not for USA, CDN 		- 1 Enquire
13 272380
DELIVERY PIPE FUEL TANK TO INJECTORS
Applicable for USA, CDN 		- 1 Enquire
14 276001
FASTENER RING 		- 1 Enquire
15 13046011
NUT 		- 2 Enquire
16 191907
CLIP
Applicable for USA, CDN 		- 1 Enquire
16 276436
CLIP
Not for USA, CDN 		- 1 Enquire
17 290701
CHANNEL FASTENER BRACKET
Not for USA, CDN; Applicable from Ass. No. 105801 		- 1 Enquire
17 262216
CHANNEL FASTENER BRACKET
Applicable for USA, CDN 		- 1 Enquire
17 280000
CHANNEL FASTENER BRACKET
Not for USA, CDN; Applicable up to Ass. No. 105800 		- 1 Enquire
18 262273
WIRING HARNESS FASTENER BRACKET
Applicable for USA, CDN 		- 2 Enquire
18 291529
WIRING HARNESS FASTENER BRACKET
Not for USA, CDN 		- 1 Enquire
