COOLING - HEADER TANK AND PIPES of Ferrari Ferrari 458 Spider

View All

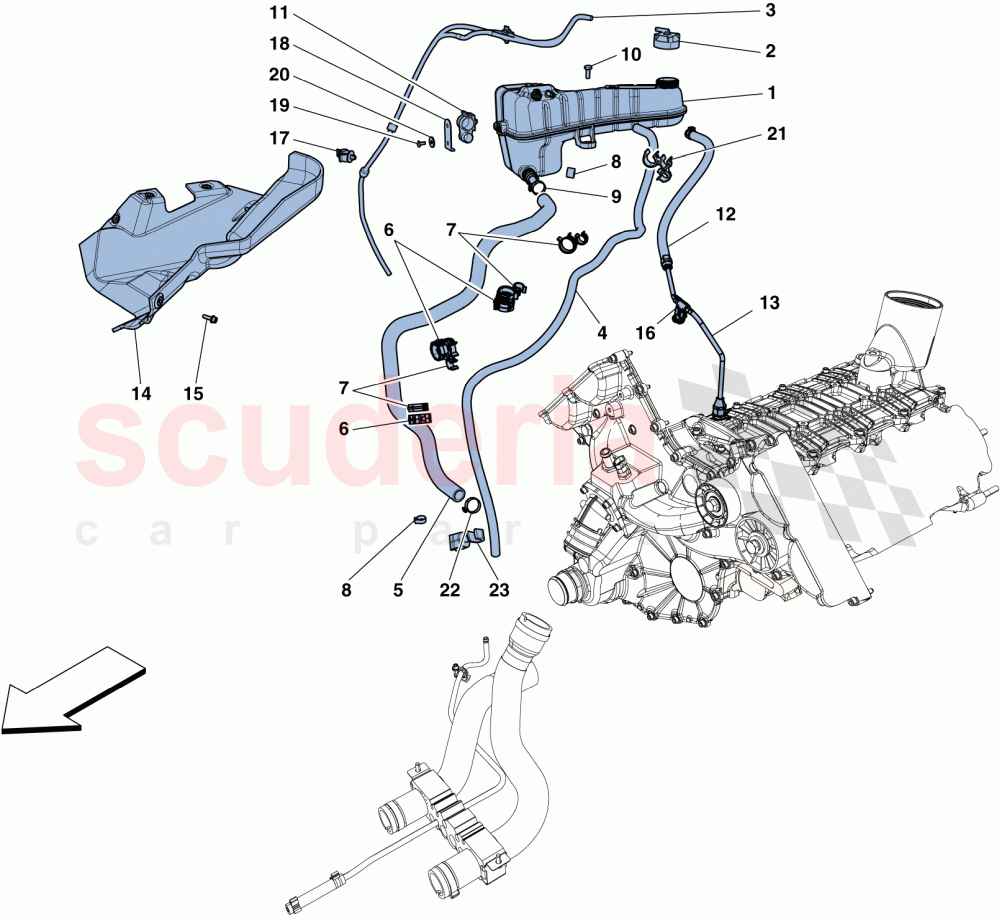

Ferrari 458 Spider - COOLING - HEADER TANK AND PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	268187	COOLANT RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329417	CAP WITH BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	261589	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263429	VENT PIPE FROM RADIATOR TO HEADER TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268188	PIPE FROM TANK TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82051100	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320597	CLIP	Enquire	To Order
	187721	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82118300	SCREW -No longer supplied- -Replaced by 11625714-	Enquire	To Order
	11625824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255546	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270260	VENT PIPE FROM ENGINE TO HEADER TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259763	VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262448	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244216	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	Enquire	To Order
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264017	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	276436	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296778	SCREW COLLAR	Enquire	To Order
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309643	ROTATING SPACER SPRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	268187	COOLANT RESERVOIR	268187 COOLANT RESERVOIR	-	1	Enquire
2	329417	CAP WITH BREATHER	329417 CAP WITH BREATHER	-	1	Enquire
3	261589	HOSE	261589 HOSE	-	1	Enquire
4	263429	VENT PIPE FROM RADIATOR TO HEADER TANK	263429 VENT PIPE FROM RADIATOR TO HEADER TANK	-	1	Enquire
5	268188	PIPE FROM TANK TO PUMP	268188 PIPE FROM TANK TO PUMP	-	1	Enquire
6	82051100	CLIP	82051100 CLIP	-	3	Enquire
7	320597	CLIP	320597 CLIP	-	1	Enquire
7	187721	CLIP	187721 CLIP	-	1	Enquire
8	13432070	HOSE COLLAR	13432070 HOSE COLLAR D. 15.7	-	2	Enquire
9	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
10	82118300	SCREW -No longer supplied- -Replaced by 11625714-	82118300 SCREW -No longer supplied- -Replaced by 11625714- No longer supplied; Replaced by 11625714	-	2	Enquire
10	11625824	SCREW	11625824 SCREW M6 X 16	-	2	Enquire
11	255546	CLIP	255546 CLIP	-	1	Enquire
12	270260	VENT PIPE FROM ENGINE TO HEADER TANK	270260 VENT PIPE FROM ENGINE TO HEADER TANK	-	1	Enquire
13	259763	VENT PIPE	259763 VENT PIPE	-	1	Enquire
14	262448	HEAT SHIELD	262448 HEAT SHIELD	-	1	Enquire
15	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	5	Enquire
16	244216	CLIP	244216 CLIP	-	1	Enquire
17	140727	CLIP	140727 CLIP	-	3	Enquire
17	303385	CLIP	303385 CLIP	-	1	Enquire
18	264017	BRACKET	264017 BRACKET	-	1	Enquire
19	85833700	SCREW	85833700 SCREW	-	1	Enquire
20	12643724	WASHER	12643724 WASHER	-	1	Enquire
21	276436	CLIP	276436 CLIP	-	1	Enquire
22	296778	SCREW COLLAR	296778 SCREW COLLAR	-	1	Enquire
22	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP No longer supplied; Replaced by 296778	-	1	Enquire
23	309643	ROTATING SPACER SPRING	309643 ROTATING SPACER SPRING	-	1	Enquire
