Name: SERVO BRAKE SYSTEM
Rating: 5.0 (1 reviews)

SERVO BRAKE SYSTEM of Ferrari Ferrari 458 Speciale

View All

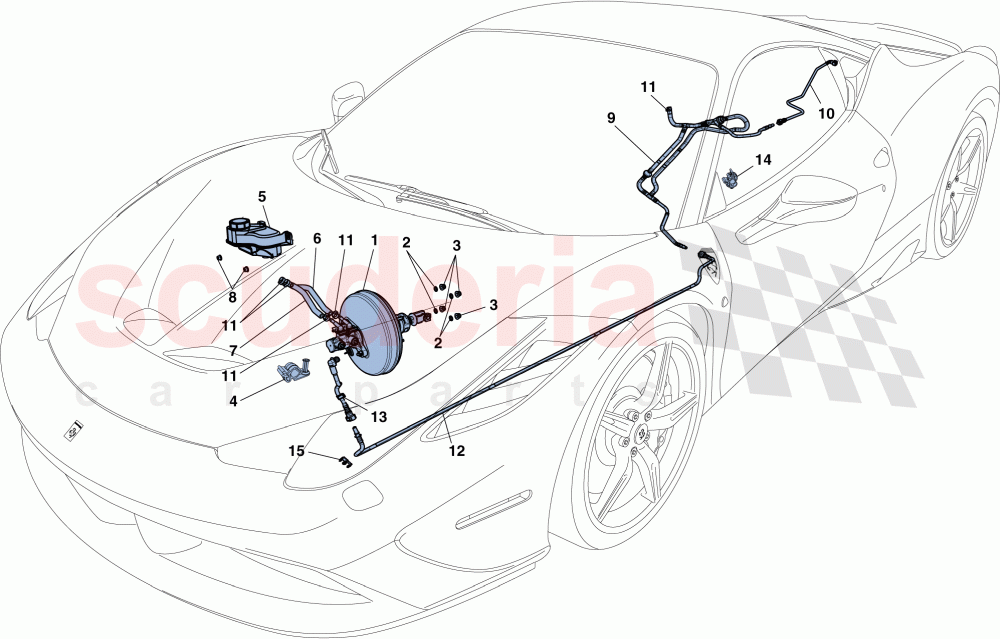

Ferrari 458 Speciale - SERVO BRAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	244010	BRAKE SERVO WITH PUMP LHD	$671.97	To Order
	248907	BRAKE SERVO COMPL. WITH PUMP	$522.56	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	250733	CLIP	$0.86	To Order

Photo	Part No	Description	Price (each)	Stock
	956155	BRAKE FLUID RESERVOIR	$56.14	To Order

Photo	Part No	Description	Price (each)	Stock
	238606	RUBBER PIPE	$25.66	To Order
	262569	RUBBER PIPE	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	238607	RUBBER PIPE	$22.45	To Order
	262570	RUBBER PIPE	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	293099	PIPE WITH KAISER VALVE	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	262205	CONNECTOR PIPE	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	262432	UNDERFLOOR PIPE	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	262431	COMPL. FRONT VACUUM PIPE	$48.12	To Order
	273670	COMPL. FRONT VACUUM PIPE	$258.00	To Order
	275505	COMPL. FRONT VACUUM PIPE	$149.21	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	268340	BRACKET	$11.70	To Order

Photo	Part No	Description	Price (each)	Stock
	140130	CLIP	$0.15	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	244010	BRAKE SERVO WITH PUMP LHD	244010 BRAKE SERVO WITH PUMP LHD Not for GD	$671.97	1
1	248907	BRAKE SERVO COMPL. WITH PUMP	248907 BRAKE SERVO COMPL. WITH PUMP Applicable for GD	$522.56	1
2	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	4
3	12578211	NUT	12578211 NUT	$0.31 MSRP: ~~1.25~~ (75.2% off)	4
4	250733	CLIP	250733 CLIP	$0.86	1
5	956155	BRAKE FLUID RESERVOIR	956155 BRAKE FLUID RESERVOIR	$56.14	1
6	238606	RUBBER PIPE	238606 RUBBER PIPE Not for GD	$25.66	1
6	262569	RUBBER PIPE	262569 RUBBER PIPE Applicable for GD	$78.61	1
7	238607	RUBBER PIPE	238607 RUBBER PIPE Not for GD	$22.45	1
7	262570	RUBBER PIPE	262570 RUBBER PIPE Applicable for GD	$78.61	1
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
9	293099	PIPE WITH KAISER VALVE	293099 PIPE WITH KAISER VALVE	$286.67	1
10	262205	CONNECTOR PIPE	262205 CONNECTOR PIPE	$54.54	1
11	13432070	HOSE COLLAR	13432070 HOSE COLLAR D. 15.7	$0.57 MSRP: ~~1.07~~ (46.7% off)	5
12	262432	UNDERFLOOR PIPE	262432 UNDERFLOOR PIPE	$91.45	1
13	262431	COMPL. FRONT VACUUM PIPE	262431 COMPL. FRONT VACUUM PIPE Not for HELE; Applicable for GD	$48.12	1
13	273670	COMPL. FRONT VACUUM PIPE	273670 COMPL. FRONT VACUUM PIPE Applicable for HELE; Not for GD	$258.00	1
13	275505	COMPL. FRONT VACUUM PIPE	275505 COMPL. FRONT VACUUM PIPE Applicable for HELE; Applicable for GD	$149.21	1
13	263409	COMPL. FRONT VACUUM PIPE	263409 COMPL. FRONT VACUUM PIPE Not for HELE; Not for GD	$256.72	1
14	268340	BRACKET	268340 BRACKET	$11.70	1
15	140130	CLIP	140130 CLIP	$0.15 MSRP: ~~0.54~~ (72.2% off)	2
